Guide Ring, Piston, Laminated Fabric-HG517

Configure

Width(mm)
- 5.5
- 9.5
- 9.6
- 9.7
- 14.5
- 14.8
- 19.8
Height(mm)
- 9.6
Groove length(mm)
- 5.6
- 9.7
- 15
- 20
Internal diameter(mm)
- 27
- 45
- 58
- 65
- 70
- 75
- 85
- 95
- 115
- 120
- 135
- 145
- 155
- 175
- 215
- 255
- 275
- 295
External diameter(mm)
- 30
- 50
- 63
- 70
- 75
- 80
- 90
- 100
- 120
- 125
- 140
- 150
- 160
- 180
- 220
- 260
- 280
- 300
Series
- KB
- KBK
Customs tariff number
- 84129040
- 84833080
Type
Est. shipping days
- All
- Within 12 working days
- Within 17 working days

Guide Ring, Piston, Laminated Fabric-HG517

Guide Ring, Piston, Laminated Fabric-HG517

Catalog

Part number:

Still undefined. 24 possible part numbers found.

Part number list
More Information
Catalog

Part number list

Number of items

Part number

Width

(mm)

Height

(mm)

Groove length

(mm)

Internal diameter

(mm)

External diameter

(mm)

Series

Customs tariff number

Weight

(g)

Minimum order quantity

9.6	-	9.7	65	70	KB	84833080	6.2	1 pieces
14.8	-	15	120	125	KB	84833080	17	1 pieces
14.8	-	15	135	140	KB	84833080	19.001	1 pieces
14.8	-	15	155	160	KB	84833080	22.9	1 pieces
14.8	-	15	275	280	KB	84833080	39.1	1 pieces
14.8	-	15	255	260	KB	84833080	36.001	1 pieces
14.5	-	15	75	80	KB	84833080	11.3	1 pieces
9.6	-	9.7	45	50	KB	84129040	4.281	1 pieces
5.5	-	5.6	58	63	KB	84833080	2.96	1 pieces
9.6	-	9.7	75	80	KB	84833080	7	1 pieces
9.6	-	9.7	85	90	KB	84833080	7.2	1 pieces
9.6	-	9.7	95	100	KB	84833080	9.001	1 pieces
14.8	-	15	175	180	KB	84833080	24.5	1 pieces
14.8	-	15	95	100	KB	84833080	13.46	1 pieces
9.6	-	9.7	70	75	KB	84833080	6.4	1 pieces
5.5	-	5.6	27	30	KB	84833080	7.8	1 pieces
14.8	-	15	95	100	KBK	84833080	14	1 pieces
14.8	-	15	120	125	KBK	84833080	3	1 pieces
9.5	-	9.7	58	63	KBK	84833080	5	1 pieces
9.7	9.6	-	75	80	KBK	84833080	8	1 pieces
14.8	-	-	115	120	KBK	84833080	16	62 pieces
14.8	-	-	215	220	KBK	84833080	28	29 pieces
19.8	-	20	145	150	KB	84833080	28.4	37 pieces
14.8	-	15	295	300	KB	84833080	40	13 pieces

Unit price (excluding VAT)(Unit price including VAT)	Standard shipping days

23.27 € ( 27.69 € )	17 working days
34.65 € ( 41.23 € )	17 working days
37.27 € ( 44.35 € )	17 working days
41.43 € ( 49.30 € )	17 working days
101.05 € ( 120.25 € )	17 working days
94.82 € ( 112.84 € )	12 working days
27.50 € ( 32.73 € )	17 working days
20.65 € ( 24.57 € )	12 working days
19.85 € ( 23.62 € )	17 working days
24.77 € ( 29.48 € )	17 working days
26.18 € ( 31.15 € )	17 working days
27.70 € ( 32.96 € )	17 working days
46.97 € ( 55.89 € )	17 working days
30.73 € ( 36.57 € )	17 working days
24.02 € ( 28.58 € )	17 working days
15.05 € ( 17.91 € )	17 working days
30.73 € ( 36.57 € )	12 working days
34.65 € ( 41.23 € )	17 working days
22.65 € ( 26.95 € )	12 working days
24.77 € ( 29.48 € )	17 working days
9.52 € ( 11.33 € )	17 working days
20.72 € ( 24.66 € )	17 working days
16.00 € ( 19.04 € )	17 working days
55.07 € ( 65.53 € )	17 working days

More Information

Basic information

Basic information

[Specifications]
・Material: Hard tissue
・Internal diameter(mm): 27~295
・External diameter(mm): 30~300

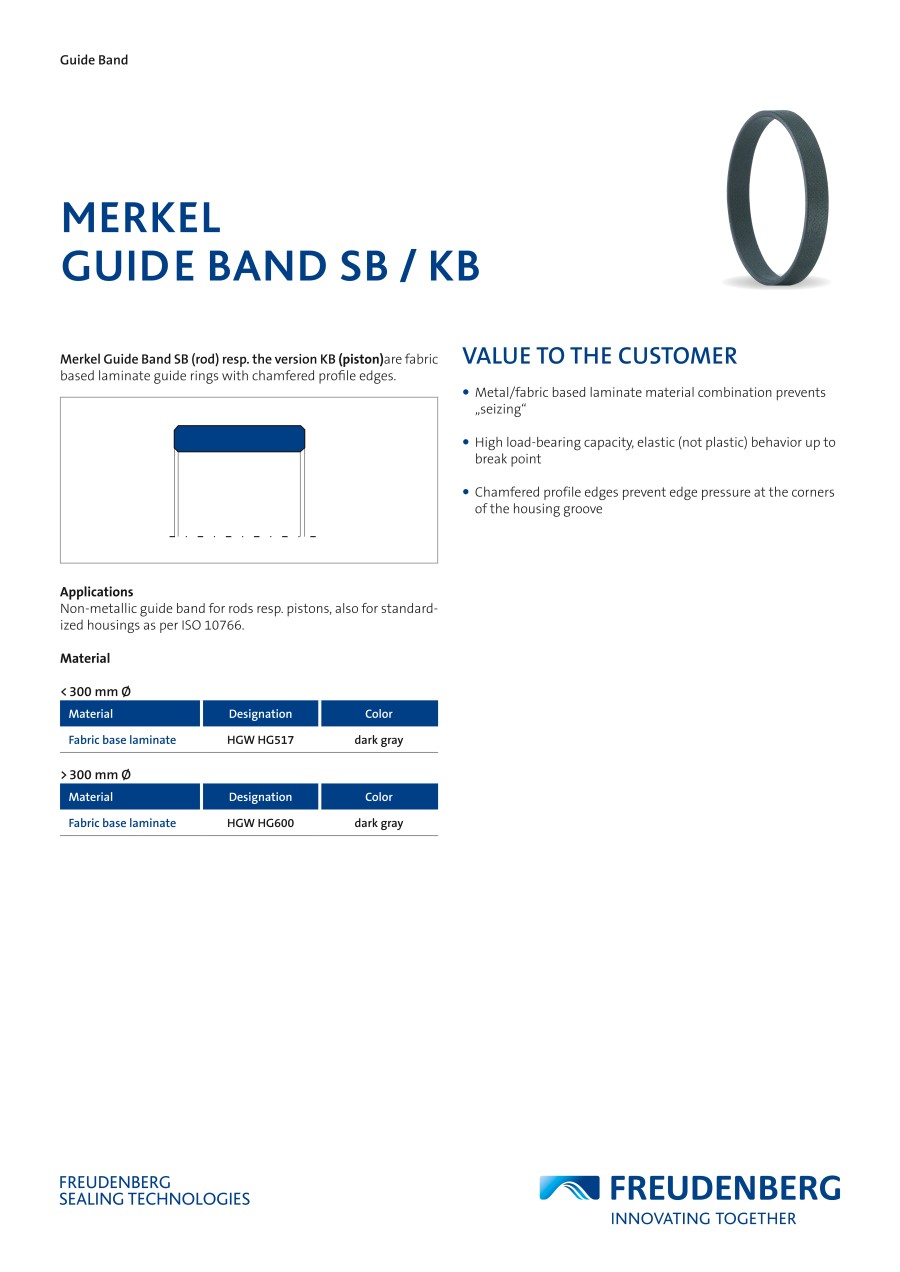

Catalog
