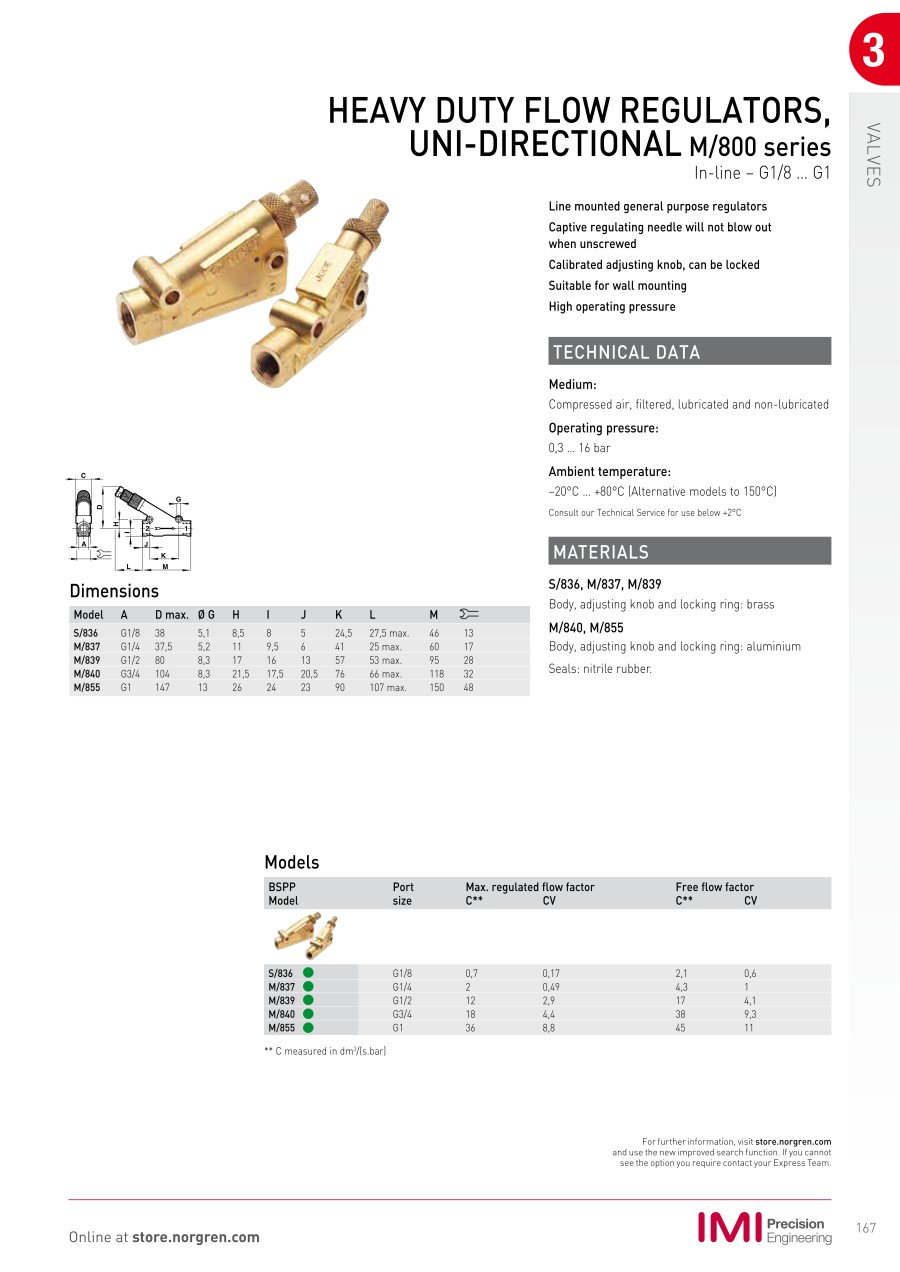

Flow Regulators
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.
- Product data
- CAD data not available
Part Number
|
|---|
| M/837 |
| M/839 |
| M/840 |
| M/855 |
| S/836 |
| Part Number |
Standard Unit Price
| Minimum order quantity | Volume Discount | Maximum Operating Pressure (Bar) | Body | Flow (l/min) | Port Size | |
|---|---|---|---|---|---|---|---|---|
91.60 € | 1 | 5 Days | - | Brass | - | G1/4 | ||
176.97 € | 1 | 5 Days | - | Brass | - | G1/2 | ||
429.60 € | 1 | 5 Days | - | Aluminium | - | G3/4 | ||
937.08 € | 1 | 5 Days | - | Aluminium | - | G1 | ||
63.90 € | 1 | 5 Days | 17 | Brass | 0.6 | G1/8 |
Loading...
Basic information
| Operating Pressure Range(Bar) | 0.3 - 16 | Range | M/800 | Operating Temperature Range(°C) | -20 - 80 |
|---|---|---|---|---|---|
| Operating Pressure Range(psi) | 5 - 230 | Fluid Temperature Range(°C) | -20 - 80 |
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
