Cylinder head shoulder bolts, Steel
- Volume Discount
[Specifications]
・Material: ST. Steel

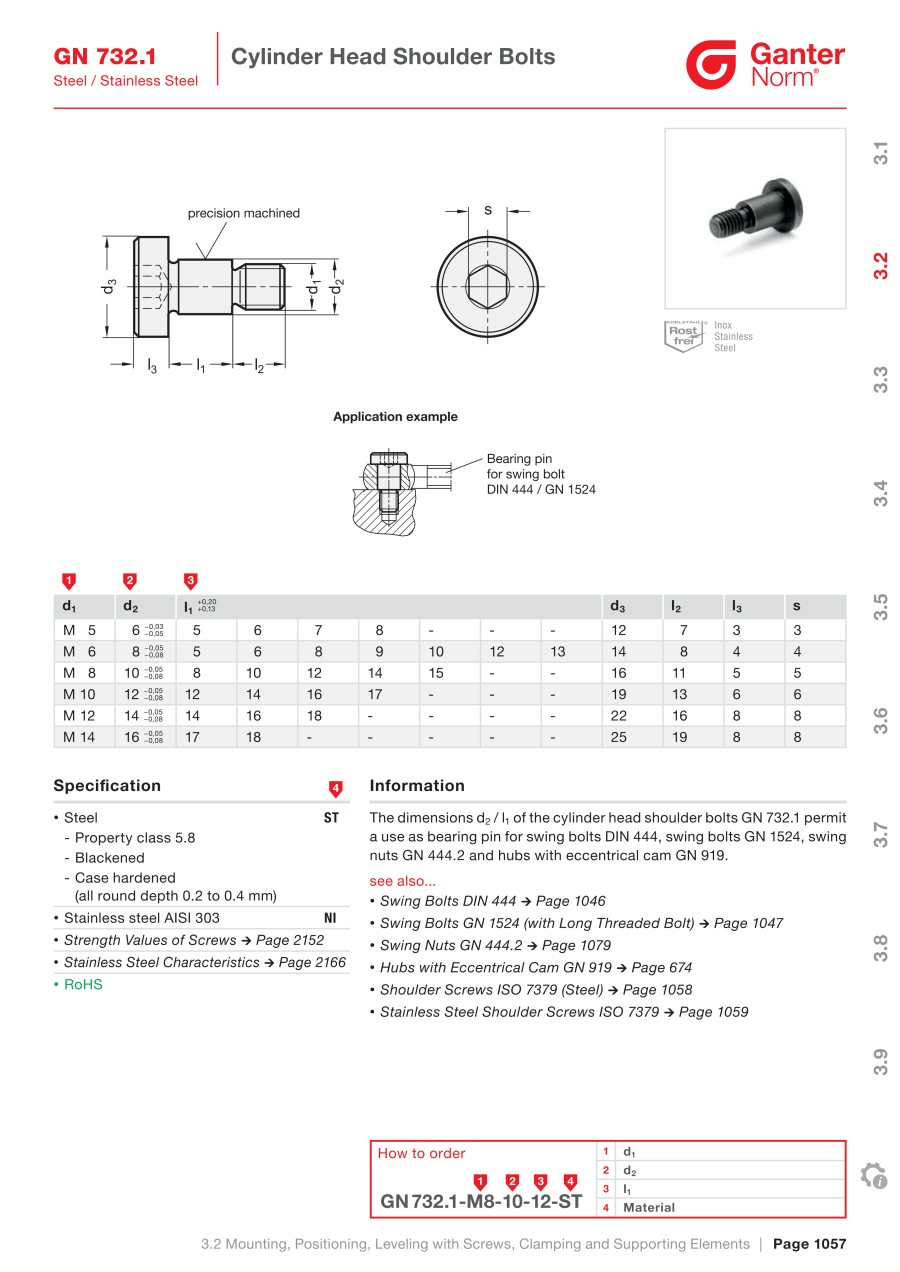

The dimensions d2 /I1 of the cylinder head shoulder bolts GN 732.1 permit a use as bearing pin for swing bolts DIN 444, swing bolts GN 1524, swing nuts GN 444.2 and hubs with eccentrical cam GN 919.
・Material: ST. Steel
The dimensions d2 /I1 of the cylinder head shoulder bolts GN 732.1 permit a use as bearing pin for swing bolts DIN 444, swing bolts GN 1524, swing nuts GN 444.2 and hubs with eccentrical cam GN 919.
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.
- Product data
- CAD data not available
Part Number
|
|---|
| 732.1-M10-12-16-ST |
| 732.1-M12-14-18-ST |
| Part Number |
Standard Unit Price
| Minimum order quantity | Volume Discount | Thread d1 | s | l3 | l2 | Weight (g) | Collet diameter d2 | d3 | Length l1 | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
6.18 € | 1 | Available | 7 Days | M 10 | 6. 6 | 6 | 13 | 26.0 | 12 | 19 | 16 | |
9.16 € | 1 | Available | 7 Days | M 12 | 8. 8 | 8 | 16 | 53.0 | 14 | 22 | 18 |
Loading...
Basic information
| Material | ST. Steel |
|---|
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
