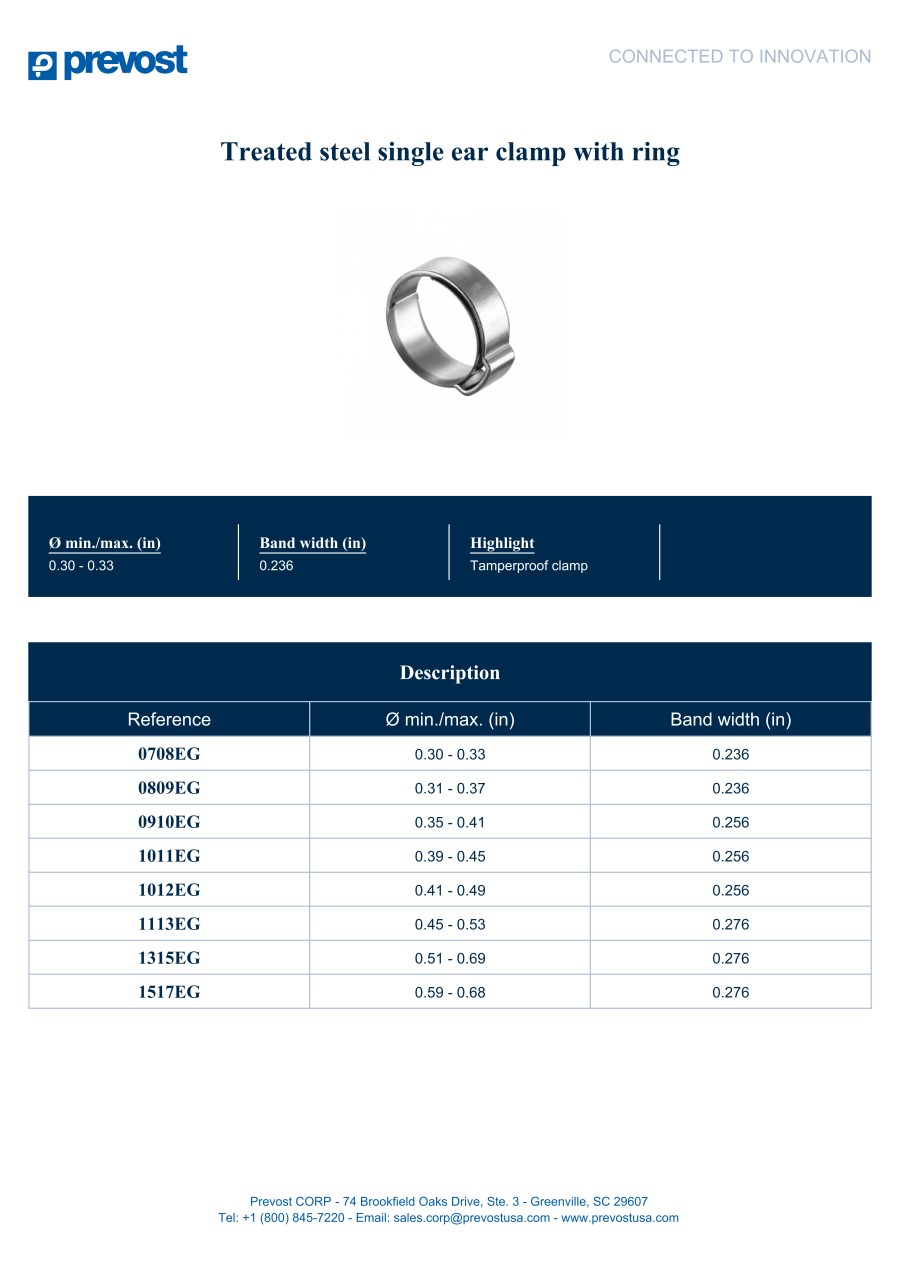

Treated Steel Single Ear O Clips with INOX 301 Ring
Ear clamps are used to attach flexible hoses made from PVC, rubber and other material.
• Safe and permanent attachement
• Quick and easy assembly
• Wide range of applications
• Economical
Full band screw clamps
PBS - PBI - PBX:
•Technology specifically for clamping hoses
• Made from high-quality steel
Openwork band screw clamps
PBJ:
• Versatility of slotted band
• Economical
• Possibility of making custom clamps in large diameters (kit)
PBR - Extremely tough clamps for thick pipes
Rubber-lined clamps
PBC - Clamps with rubber protection: soften vibrations and protect clamped hose and parts.
Available in 12 and 15 mm bands.
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.
- Product data
- CAD data not available
Part Number
|
|---|
| 0708EG |
| 0809EG |
| 0910EG |
| 1011EG |
| 1012EG |
| 1113EG |
| 1315EG |
| 1517EG |
| Part Number |
Standard Unit Price
| Minimum order quantity | Volume Discount | Band Width (mm) | Diameter (Min. - Max.) (mm) | |
|---|---|---|---|---|---|---|
23.42 € | 100 | 7 Days | 6 | 7.5 - 8.5 | ||
23.60 € | 100 | 7 Days | 6 | 8 - 9.5 | ||
24.98 € | 100 | 7 Days | 6.5 | 9 - 10.5 | ||
25.33 € | 100 | 7 Days | 6.5 | 10 - 11.5 | ||
25.73 € | 100 | 7 Days | 6.5 | 10.5 - 12.5 | ||
36.90 € | 100 | 7 Days | 7 | 11.5 - 13.3 | ||
33.57 € | 100 | 7 Days | 7 | 13 - 15.3 | ||
35.82 € | 100 | 7 Days | 7 | 15 - 17.3 |
Loading...
Basic information
| Highlight | Tamperproof clamp | Packaging (Box quantity) | 100 |
|---|
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
