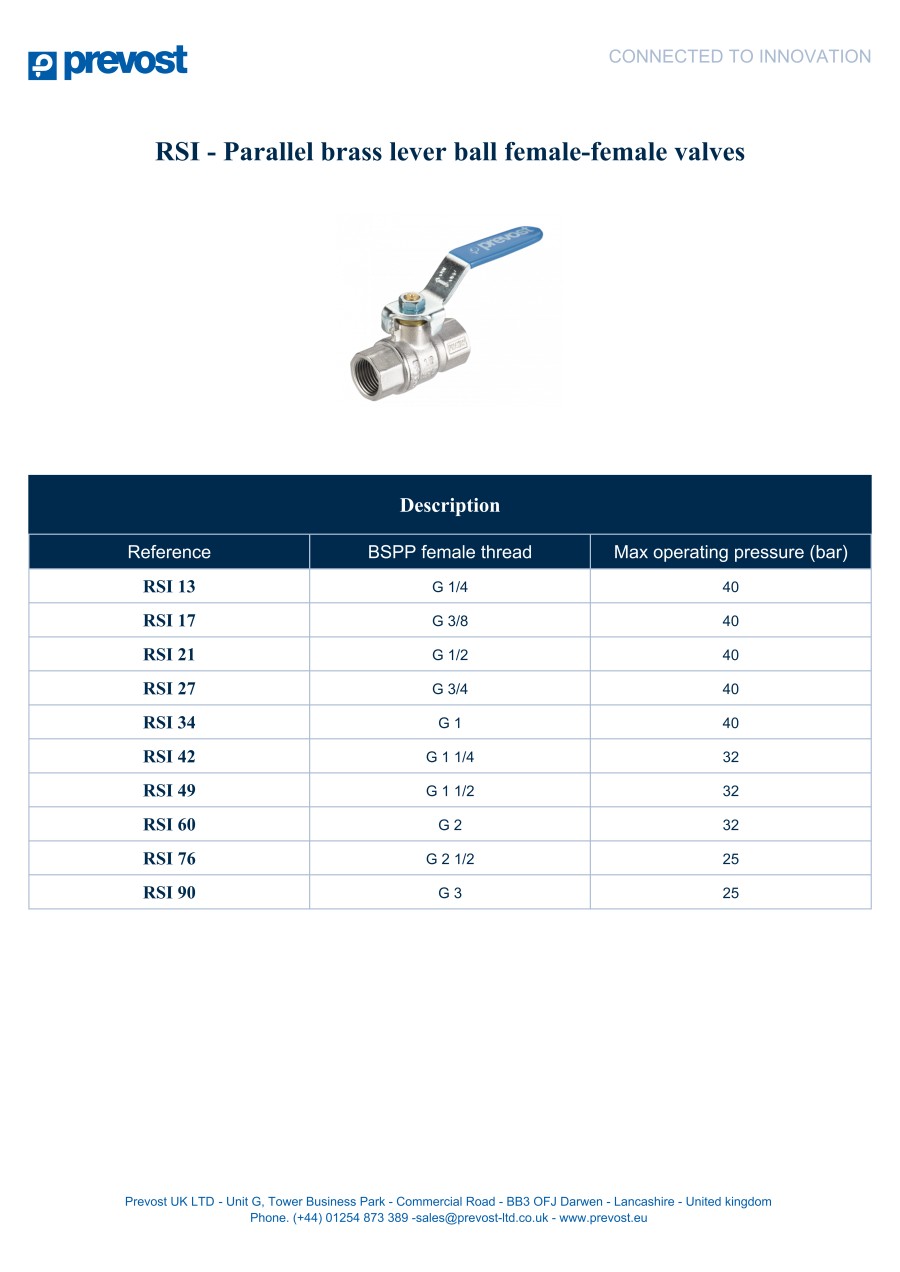

Parallel Brass Lever Ball Female-female Valves, RSI Series
- Quarter-turn brass full-flow valves (RSI)
- Butterfly valves
- Lockable stainless steel valves
- Double valves
- Mini-valves
- Programmable valves
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.
- Product data
- CAD data not available
Part Number
|
|---|
| RSI 13 |
| RSI 17 |
| RSI 21 |
| RSI 21P |
| RSI 27 |
| RSI 27P |
| RSI 34 |
| RSI 42 |
| RSI 49 |
| RSI 60 |
| RSI 76 |
| RSI 90 |
| Part Number |
Standard Unit Price
| Minimum order quantity | Volume Discount | Width (mm) | BSPP Female Thread | Length (mm) | Max. Operating Pressure (bar) | Height (mm) | |
|---|---|---|---|---|---|---|---|---|---|
8.05 € | 1 | 7 Days | - | G 1/4 | - | 40 | - | ||
8.05 € | 1 | 7 Days | - | G 3/8 | - | 40 | - | ||
9.28 € | 1 | 7 Days | - | G 1/2 | - | 40 | - | ||
9.27 € | 1 | 7 Days | 45 | G 1/2 | 200 | 40 | 75 | ||
12.88 € | 1 | 7 Days | - | G 3/4 | - | 40 | - | ||
12.82 € | 1 | 7 Days | 45 | G 3/4 | 215 | 40 | 85 | ||
19.10 € | 1 | 7 Days | - | G 1 | - | 40 | - | ||
28.85 € | 1 | 7 Days | - | G 1 1/4 | - | 32 | - | ||
44.88 € | 1 | 7 Days | - | G 1 1/2 | - | 32 | - | ||
67.17 € | 1 | 7 Days | - | G 2 | - | 32 | - | ||
148.60 € | 1 | 7 Days | - | G 2 1/2 | - | 25 | - | ||
233.93 € | 1 | 7 Days | - | G 3 | - | 25 | - |
Loading...
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
