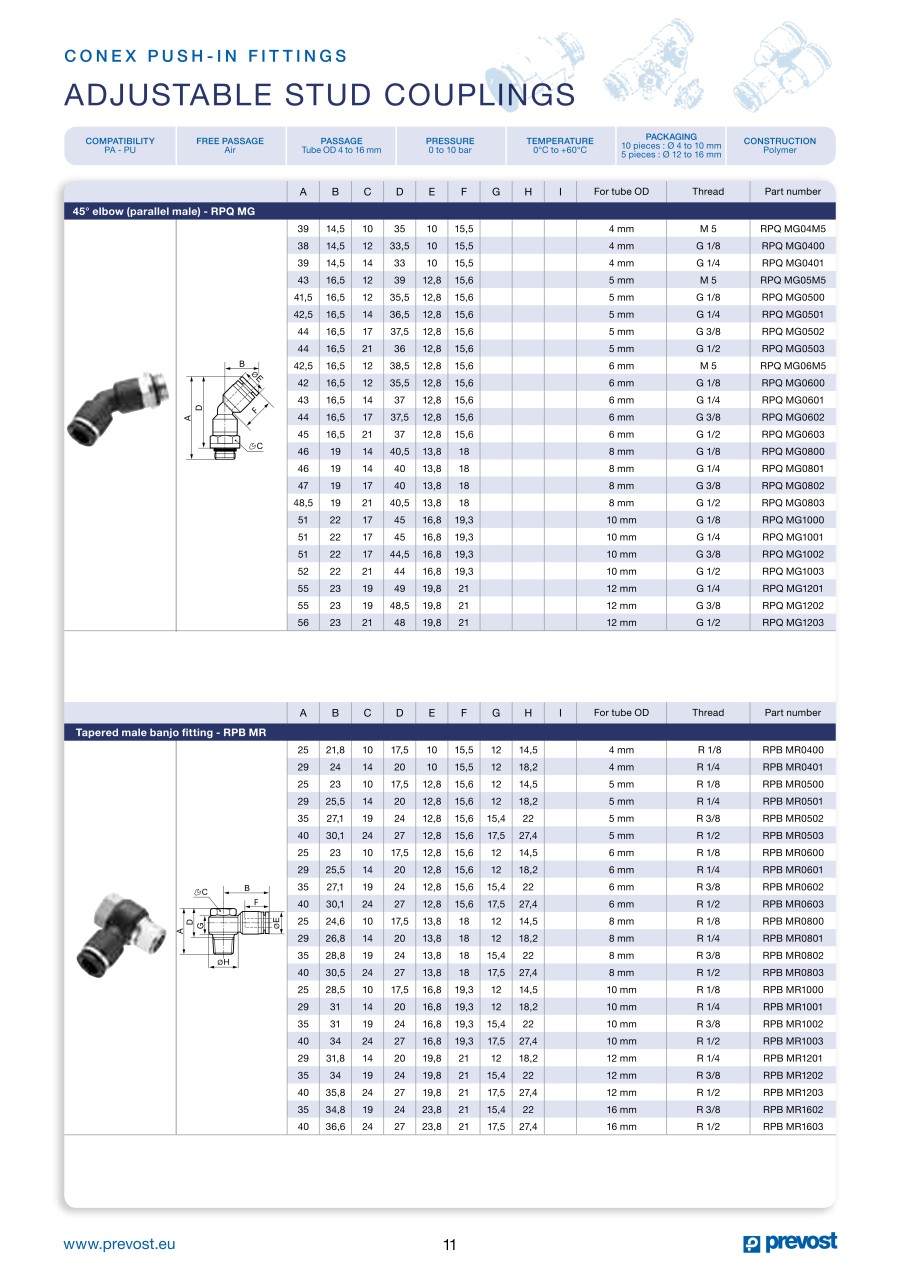

Tapered Male Banjo Fitting
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.
- Product data
- CAD data not available
| Part Number |
Standard Unit Price
| Minimum order quantity | Volume Discount | Width (mm) | Length (mm) | BSPT Male Thread | For Tube OD (mm) | Height (mm) | |
|---|---|---|---|---|---|---|---|---|---|
1.90 € | 10 | 7 Days | 25 | 29 | R 1/8 | 4 | 14 | ||
1.90 € | 10 | 7 Days | 29 | 33 | R 1/4 | 4 | 18 | ||
2.28 € | 10 | 7 Days | 25 | 29 | R 1/8 | 5 | 13 | ||
2.53 € | 10 | 7 Days | 29 | 33 | R 1/4 | 5 | 18 | ||
2.87 € | 10 | 7 Days | 35 | 37 | R 3/8 | 5 | 21 | ||
3.22 € | 10 | 7 Days | 40 | 43 | R 1/2 | 5 | 27 | ||
2.28 € | 10 | 7 Days | 25 | 30 | R 1/8 | 6 | 14 | ||
2.53 € | 10 | 7 Days | 29 | 35 | R 1/4 | 6 | 18 | ||
2.87 € | 10 | 7 Days | 36 | 38 | R 3/8 | 6 | 22 | ||
3.22 € | 10 | 7 Days | 40 | 43 | R 1/2 | 6 | 27 | ||
2.32 € | 10 | 7 Days | 25 | 32 | R 1/8 | 8 | 15 | ||
2.53 € | 10 | 7 Days | 29 | 38 | R 1/4 | 8 | 18 | ||
2.87 € | 10 | 7 Days | 36 | 40 | R 3/8 | 8 | 22 | ||
3.22 € | 10 | 7 Days | 40 | 43 | R 1/2 | 8 | 27 | ||
2.53 € | 10 | 7 Days | 26 | 36 | R 1/8 | 10 | 18 | ||
2.87 € | 10 | 7 Days | 29 | 39 | R 1/4 | 10 | 18 | ||
3.07 € | 10 | 7 Days | 36 | 41 | R 3/8 | 10 | 22 | ||
3.22 € | 10 | 7 Days | 40 | 43 | R 1/2 | 10 | 27 | ||
3.07 € | 5 | 7 Days | 31 | 40 | R 1/4 | 12 | 21 | ||
3.07 € | 5 | 7 Days | 36 | 44 | R 3/8 | 12 | 21 | ||
3.22 € | 5 | 7 Days | 40 | 50 | R 1/2 | 12 | 27 | ||
3.45 € | 5 | 7 Days | 38 | 45 | R 3/8 | 16 | 25 | ||
7.48 € | 5 | 7 Days | 40 | 50 | R 1/2 | 16 | 27 |
Loading...
Basic information
| Max. Operating Pressure(bar) | 10 |
|---|
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
