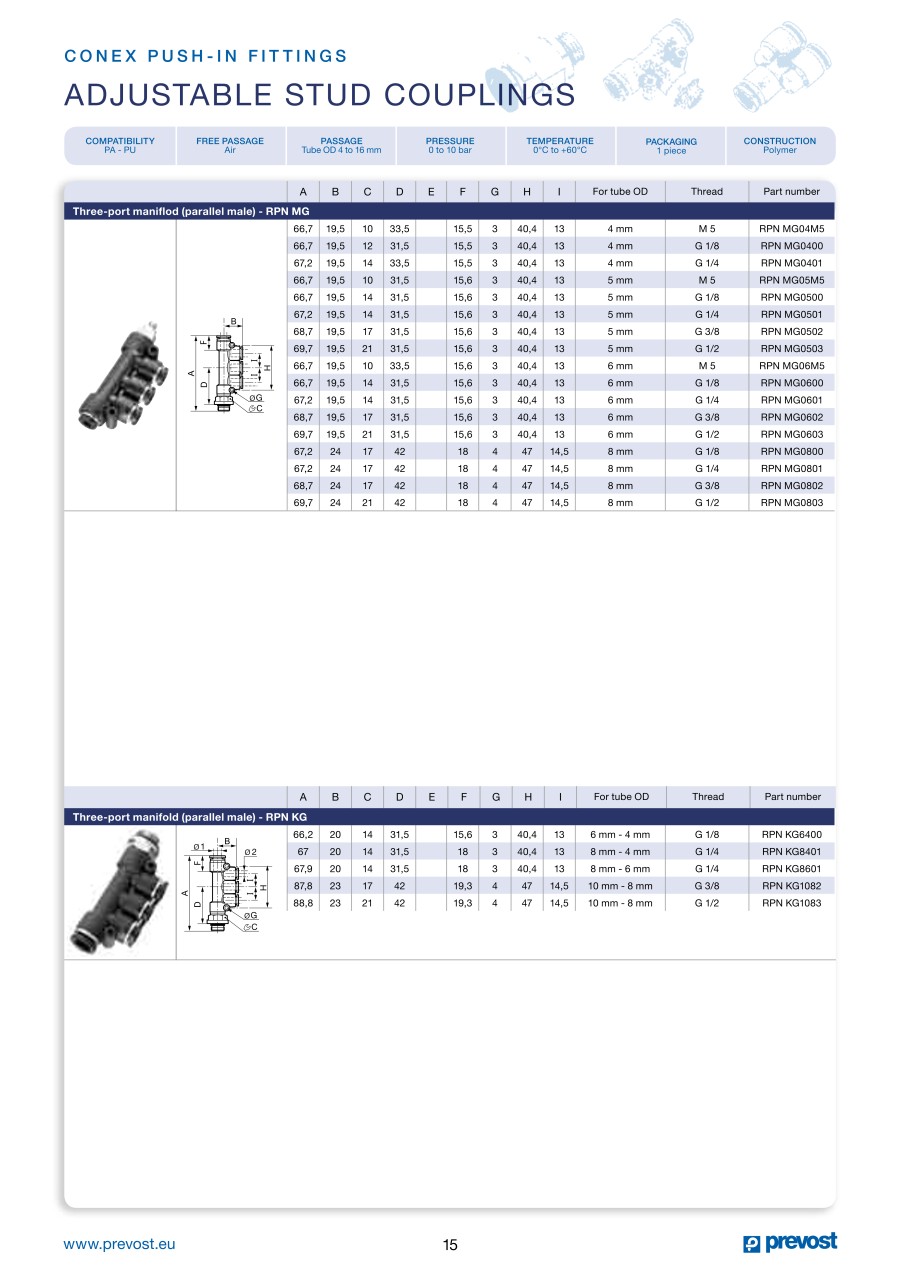

Parallel Male Three-port Manifold, RPN MG Series
- Fixed equipment fittings, with Teflon-coated thread (tapered or parallel) with gasket
- Link fittings, tube-to-tube connections (functional fittings, valves flow rate regulators)
- Nickel-plated brass options for excellent corrosion resistance
- Applications: compressed air, water, inert fluids and oil.
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.
- Product data
- CAD data not available
Part Number
|
|---|
| RPN MG04M5 |
| RPN MG05M5 |
| RPN MG06M5 |
| RPN MG0400 |
| RPN MG0401 |
| RPN MG0500 |
| RPN MG0501 |
| RPN MG0502 |
| RPN MG0503 |
| RPN MG0600 |
| RPN MG0601 |
| RPN MG0602 |
| RPN MG0603 |
| RPN MG0800 |
| RPN MG0801 |
| RPN MG0802 |
| RPN MG0803 |
| Part Number |
Standard Unit Price
| Minimum order quantity | Volume Discount | Metric Male Thread | For Tube OD (mm) | BSPP Male Thread | |
|---|---|---|---|---|---|---|---|
4.08 € | 1 | 7 Days | M5 | 4 | - | ||
4.08 € | 1 | 7 Days | M5 | 5 | - | ||
4.08 € | 1 | 7 Days | M5 | 6 | - | ||
4.08 € | 1 | 7 Days | - | 4 | G 1/8 | ||
4.08 € | 1 | 7 Days | - | 4 | G 1/4 | ||
4.08 € | 1 | 7 Days | - | 5 | G 1/8 | ||
4.08 € | 1 | 7 Days | - | 5 | G 1/4 | ||
4.22 € | 1 | 7 Days | - | 5 | G 3/8 | ||
4.33 € | 1 | 7 Days | - | 5 | G 1/2 | ||
4.08 € | 1 | 7 Days | - | 6 | G 1/8 | ||
4.08 € | 1 | 7 Days | - | 6 | G 1/4 | ||
4.22 € | 1 | 7 Days | - | 6 | G 3/8 | ||
4.33 € | 1 | 7 Days | - | 6 | G 1/2 | ||
4.33 € | 1 | 7 Days | - | 8 | G 1/8 | ||
4.33 € | 1 | 7 Days | - | 8 | G 1/4 | ||
4.63 € | 1 | 7 Days | - | 8 | G 3/8 | ||
4.88 € | 1 | 7 Days | - | 8 | G 1/2 |
Loading...
Basic information
| Temperature | 0 to + 60 °C | Construction | Polymer and nickel-plated brass | Operating pressure | 0 to 10 bar |
|---|
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
