IFM ELECTRONIC

Singleturn Solid Shaft Encoder

Singleturn Solid Shaft Encoder

Part number:

Still undefined. 2 possible part numbers found.
Quantity:

Part number list

Number of items
  • 1
    • Part number

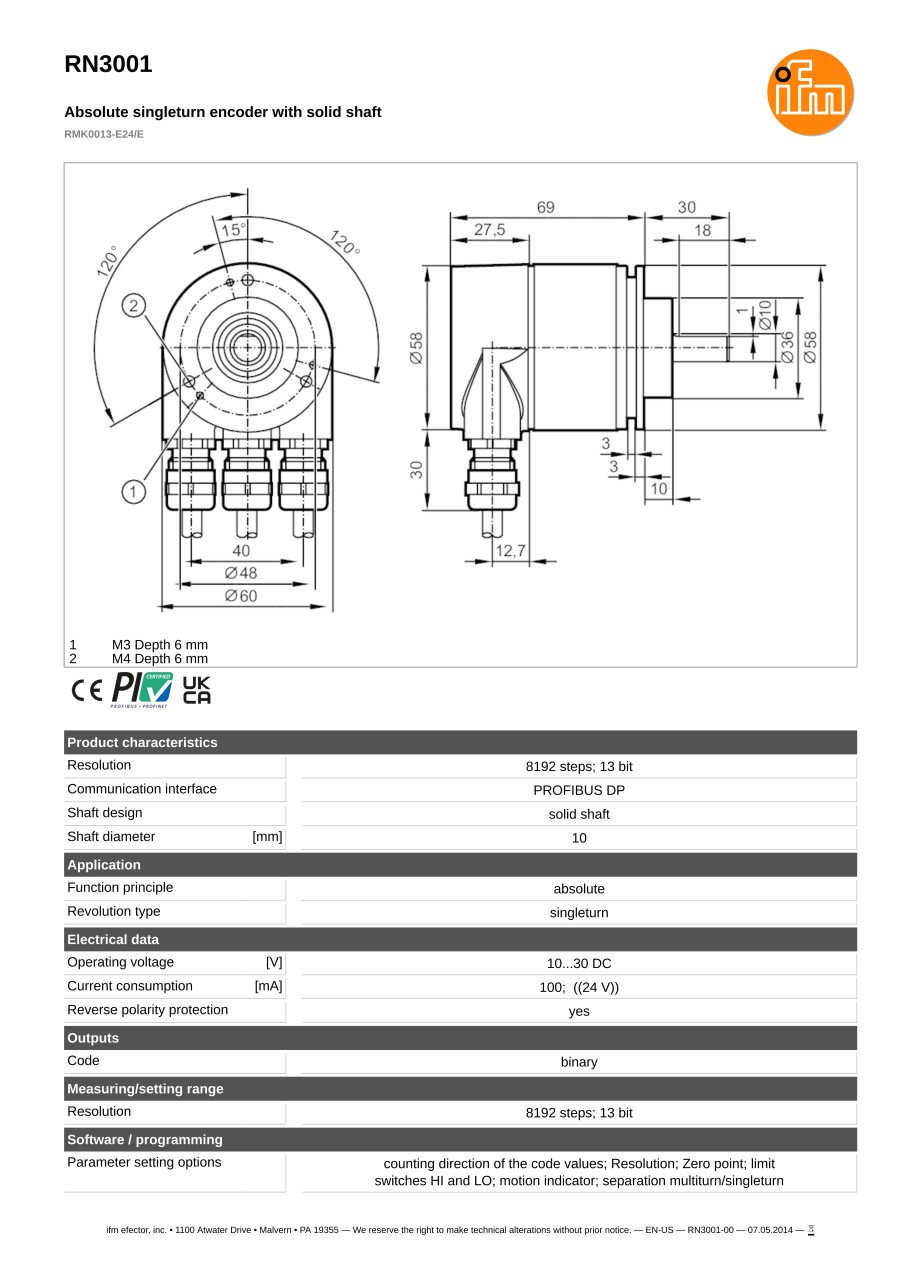

    RN3001
    RN7012

    Protection

    Current Consumption

    (mA)

    Transmission Standard

    Shaft Material

    Communication Interface

    		Minimum order quantity
    IP 67; (on the housing: IP 67; on the shaft: IP 67)
    100; ((24 V))
    DPV2
    -
    PROFIBUS DP
    1 pieces
    IP 65; (on the housing: IP 65; on the shaft: IP 64)
    100; ((10 V DC); 60 (24 V DC))
    -
    10steel (1.4104)
    Max. shaft load axial (at the shaft end) [N]: 40
    Max. shaft load radial (at the shaft end) [N]: 110
    Fixing flange: clamping flange
    CAN
    1 pieces
    Unit price (excluding VAT)(Unit price including VAT)
    Standard shipping days
    877.78 €
    ( 1,044.56 € )
    4 working days
    843.52 €
    ( 1,003.79 € )
    4 working days
  • 1

    • More Information

    Basic information

    [Specifications]
    ・Materials: Aluminium
    ・Operating Voltage(V): 10-30 DC

    [Features]
    ・For precise position, speed, angular and linear measurement
    ・Robust housing for use in harsh industrial environments
    ・High shock and vibration resistance
    ・Easy wiring and programming
