IFM ELECTRONIC

Mounting Adapter forl Sensors

Mounting Adapter forl Sensors

Part number:

Still undefined. 9 possible part numbers found.
Quantity:

Part number list

Number of items
  • 1
    • Part number

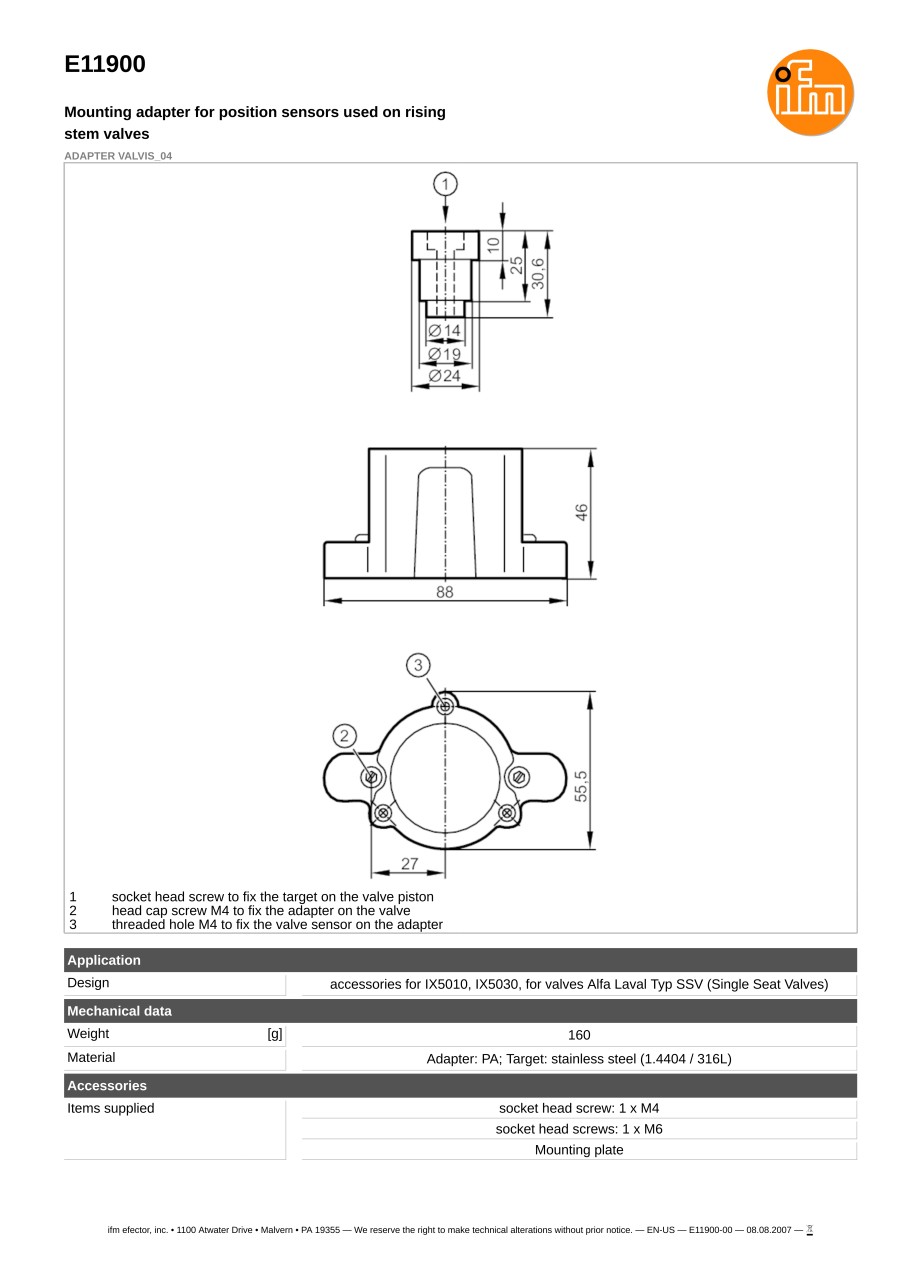

    E11900
    E12170
    E12411
    E12470
    E12476
    E12501
    E12515
    E33434
    E43329

    Pressure Rating

    (bar)

    Materials

    Design

    Hygienic Equipment Class to DIN 11866

    Process Connection

    Sealing

    Sensor Connection

    Surface Characteristics Ra/Rz of the Wetted Parts

    Dimensions

    (mm)

    Accessories (Included)

    		Minimum order quantity
    -
    Adapter: PA; Target: stainless steel (1.4404 / 316L)
    Accessories for IX5010, IX5030, for valves Alfa Laval Typ SSV (Single Seat Valves)
    -
    -
    -
    -
    -
    -
    socket head screw: 1 x M4
    socket head screws: 1 x M6
    Mounting plate
    1 pieces
    -
    Adapter: PA; Target: stainless steel (1.4404 / 316L)
    For Bardiani valves
    -
    -
    -
    -
    -
    46.6 x 59 x 59
    Screws: 3, thread forming
    socket head screw: 1 x M12 x 30
    O-ring
    socket head Screws: 2 x M6 x 18
    1 pieces
    -
    Target: stainless steel (1.4404 / 316L); mounting plate: stainless steel (1.4305 / 303); spacer: POM
    For valves APV / SPX, For valves APV / SPX
    -
    -
    -
    -
    -
    -
    Cylinder screws: 3 x M4 x 40, stainless steel
    washers: 3 x M4
    countersunk screws: 3 x M5 x 16, stainless steel
    1 pieces
    -
    Adapter: PA 6; Target: stainless steel (1.4404 / 316L); screws: stainless steel (1.4301 / 304); Clamping device: stainless steel (1.4301 / 304)
    For Alfa Laval valves Typ SSV (Single Seat Valves)
    -
    -
    -
    -
    -
    -
    -
    1 pieces
    -
    Adapter: PA 6; Clamping device: stainless steel (1.4301 / 304); Target: stainless steel (1.4404 / 316L); screw: stainless steel (1.4301 / 304); Sealing: EPDM
    For Alfa Laval valves Typ LKLA-T (Butterfly Valves)
    -
    -
    -
    -
    -
    -
    -
    1 pieces
    -
    flange: stainless steel; spacer: POM; Target: stainless steel (1.4404 / 316L); Sealing: FKM 80 Shore A
    For SPX/APV valves type butterfly valves
    -
    -
    -
    -
    -
    -
    Cylinder screws: 3 x M4 x 40, stainless steel
    washers: 3 x A4.3
    countersunk screws: 3 x M5 x 16, stainless steel
    Sealing: 1 x 7.5 x 1.5
    1 pieces
    -
    flange: stainless steel; spacer: POM; Target: stainless steel (1.4404 / 316L)
    For SPX/APV valves type single seat valves
    -
    -
    -
    -
    -
    -
    Cylinder screws: 3 x M4 x 40, stainless steel
    washers: 3 x M4
    countersunk screws: 2 x M8 x 16, stainless steel
    1 pieces
    34
    stainless steel (1.4435 / 316L); O-ring: EPDM
    Accessories for, PY200x, PM17xx, PI27xx, PG27xx, : Rosemount 1199 (SSW) Tank Spud Seal
    H4
    Tank Spud Rosemount 1199 (SSW) Tank Spud Seal
    Gasket
    G 1 Aseptoflex Vario
    0.4 / 4
    -
    -
    1 pieces
    -
    stainless steel (1.4435 / 316L)
    -
    -
    UPJ Ø 42 mm
    -
    G 1/2 sealing cone
    0.8 / 4
    -
    O-ring
    1 pieces
    Unit price (excluding VAT)(Unit price including VAT)
    Standard shipping days
    82.79 €
    ( 98.52 € )
    4 working days
    87.75 €
    ( 104.42 € )
    4 working days
    116.91 €
    ( 139.12 € )
    3 working days
    82.79 €
    ( 98.52 € )
    3 working days
    82.79 €
    ( 98.52 € )
    3 working days
    110.11 €
    ( 131.03 € )
    3 working days
    110.11 €
    ( 131.03 € )
    3 working days
    392.71 €
    ( 467.32 € )
    4 working days
    93.47 €
    ( 111.23 € )
    4 working days
