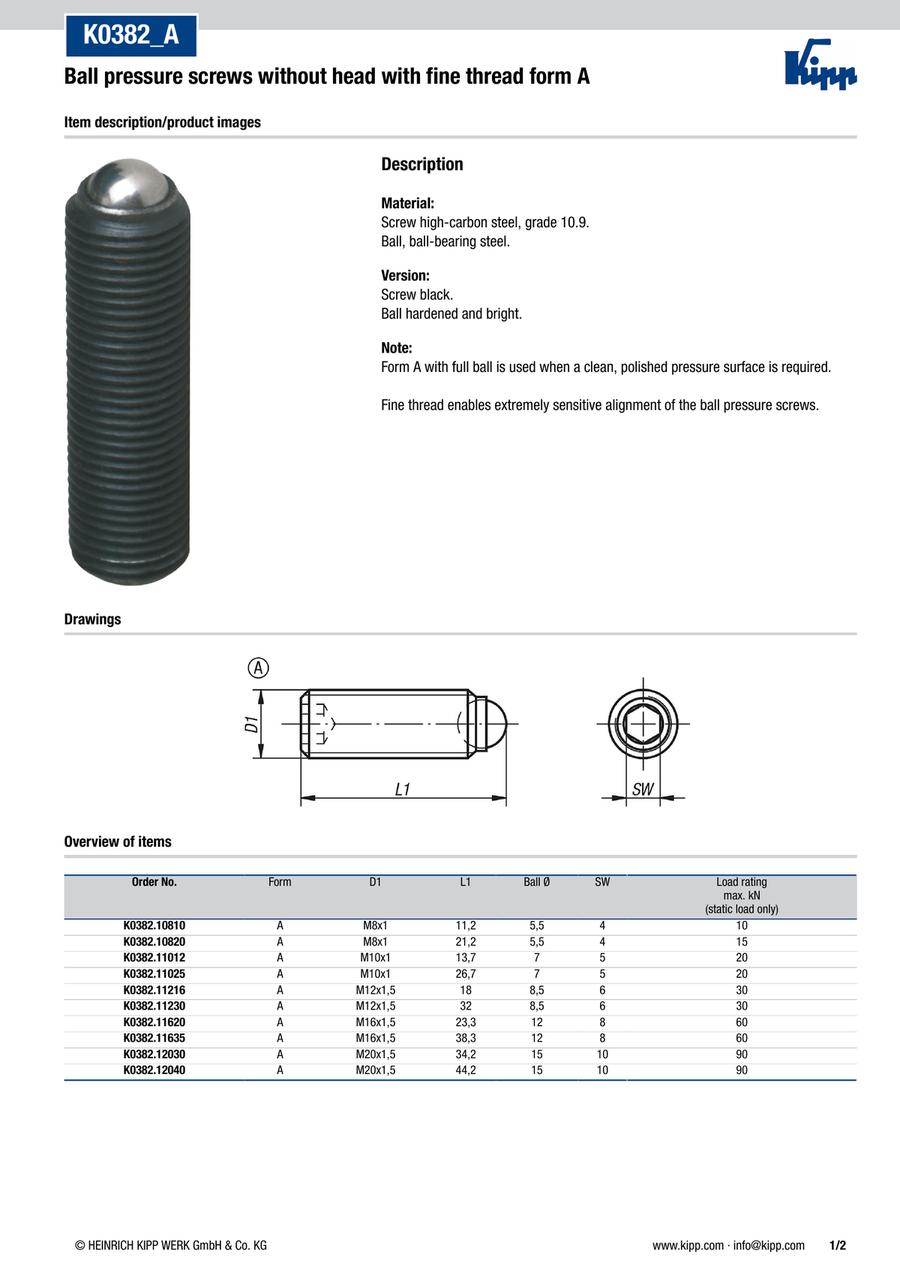

Ball pressure screws without head with fine thread form A (K0382)
· Application sectors: machine and fixture construction, assembly
· ball point hardened
· Fine thread enables extremely fine adjustments
· Different ball types
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.
Part Number
|
|---|
| K0382.10810 |
| K0382.10820 |
| K0382.11012 |
| K0382.11025 |
| K0382.11216 |
| K0382.11230 |
| K0382.11620 |
| K0382.11635 |
| K0382.12030 |
| K0382.12040 |
| Part Number |
Standard Unit Price
| Minimum order quantity | Volume Discount | Outside Dia./Thread M (mm) | D1=Thread | L1=thread length (mm) | Ball Ø (mm) | SW (mm) | Load rating max. (static load only) (kN) | |
|---|---|---|---|---|---|---|---|---|---|---|
2.27 € | 1 | 4 Days | 8 | M8x1 | 11.2 | 5.5 | 4 | 10 | ||
2.27 € | 1 | 4 Days | 8 | M8x1 | 21.2 | 5.5 | 4 | 15 | ||
2.65 € | 1 | 4 Days | 10 | M10x1 | 13.7 | 7 | 5 | 20 | ||
2.78 € | 1 | 4 Days | 10 | M10x1 | 26.7 | 7 | 5 | 20 | ||
3.01 € | 1 | 4 Days | 12 | M12x1,5 | 18 | 8.5 | 6 | 30 | ||
3.23 € | 1 | 4 Days | 12 | M12x1,5 | 32 | 8.5 | 6 | 30 | ||
4.83 € | 1 | 4 Days | 16 | M16x1,5 | 23.3 | 12 | 8 | 60 | ||
5.14 € | 1 | 4 Days | 16 | M16x1,5 | 38.3 | 12 | 8 | 60 | ||
11.09 € | 1 | 4 Days | 20 | M20x1,5 | 34.2 | 15 | 10 | 90 | ||
11.35 € | 1 | 4 Days | 20 | M20x1,5 | 44.2 | 15 | 10 | 90 |
Loading...
Basic information
| Tip Material | Steel | Form | A | Component material | Steel |
|---|
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
