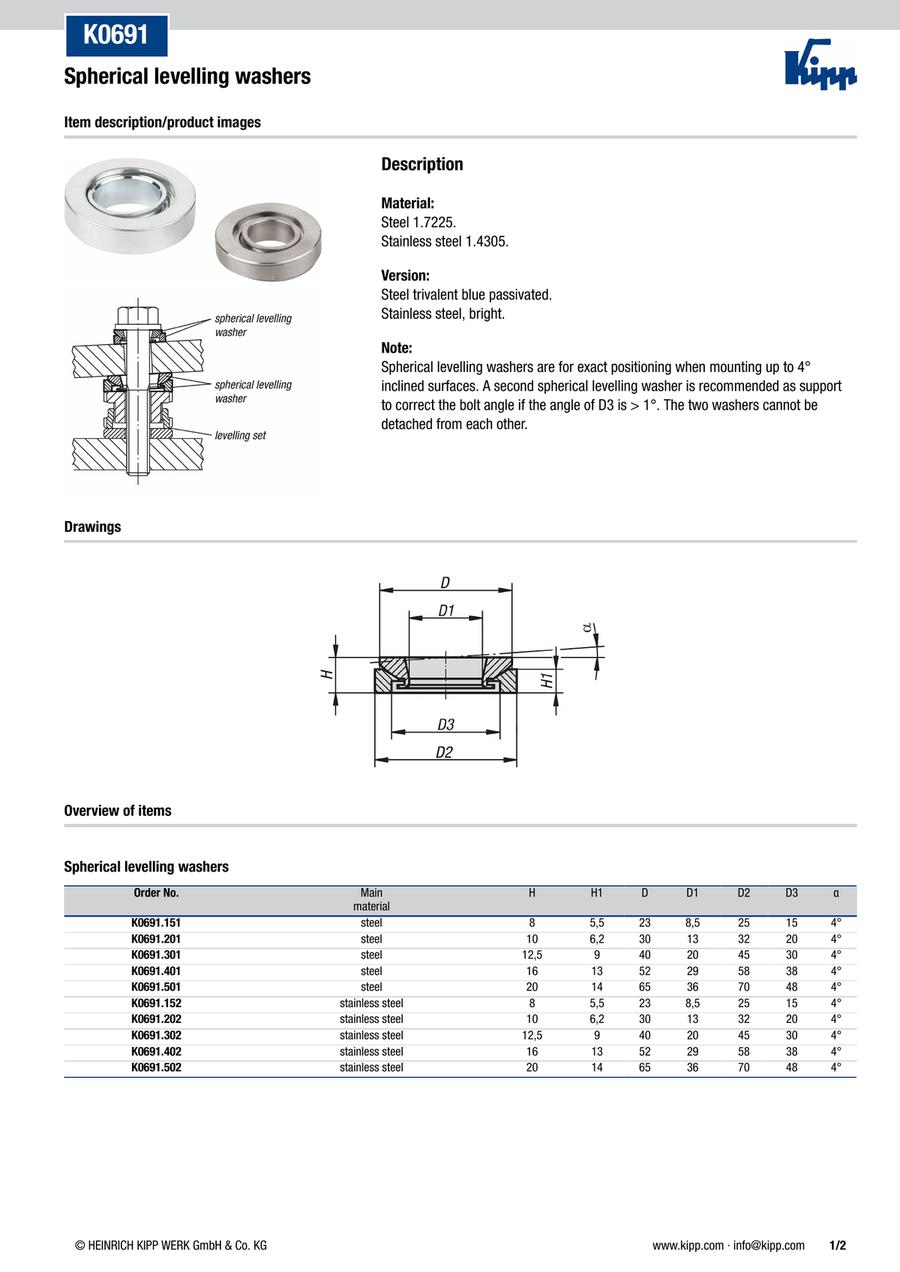

Spherical levelling washers (K0691)
・Main material: Stainless steel, Steel
・Internal diameter(mm): 8.5-36
・Outside diameter(mm): 25-70
[Features]
・Exact alignment when mounting on inclined surfaces
・Swivel angle up to 4°
・No falling out; upper and lower parts are secured
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.
Part Number
|
|---|
| K0691.151 |
| K0691.152 |
| K0691.201 |
| K0691.202 |
| K0691.301 |
| K0691.302 |
| K0691.401 |
| K0691.402 |
| K0691.501 |
| K0691.502 |
| Part Number |
Standard Unit Price
| Minimum order quantity | Volume Discount | Internal diameter (mm) | H=Height (mm) | Outside diameter (mm) | Main material | Steel code | Surface finish body | D (mm) | D3 (mm) | H1 (mm) | G=Thread | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
17.55 € | 1 | 4 Days | 8.5 | 8 | 25 | Steel | 1.7225 | blue-passivated | 23 | 15 | 5.5 | M8 | ||
22.63 € | 1 | 4 Days | 8.5 | 8 | 25 | Stainless steel | 1.4305 | bright | 23 | 15 | 5.5 | M8 | ||
19.54 € | 1 | 4 Days | 13 | 10 | 32 | Steel | 1.7225 | blue-passivated | 30 | 20 | 6.2 | M12 | ||
24.43 € | 1 | 4 Days | 13 | 10 | 32 | Stainless steel | 1.4305 | bright | 30 | 20 | 6.2 | M12 | ||
23.44 € | 1 | 4 Days | 20 | 12.5 | 45 | Steel | 1.7225 | blue-passivated | 40 | 30 | 9 | M20 | ||
31.30 € | 1 | 4 Days | 20 | 12.5 | 45 | Stainless steel | 1.4305 | bright | 40 | 30 | 9 | M20 | ||
36.56 € | 1 | 4 Days | 29 | 16 | 58 | Steel | 1.7225 | blue-passivated | 52 | 38 | 13 | M27 | ||
45.57 € | 1 | 4 Days | 29 | 16 | 58 | Stainless steel | 1.4305 | bright | 52 | 38 | 13 | M27 | ||
54.41 € | 1 | 4 Days | 36 | 20 | 70 | Steel | 1.7225 | blue-passivated | 65 | 48 | 14 | M36 | ||
68.36 € | 1 | 4 Days | 36 | 20 | 70 | Stainless steel | 1.4305 | bright | 65 | 48 | 14 | M36 |
Loading...
Basic information
| α | 4° |
|---|
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
