Configure
- B(mm)
- 11
- 15
- 17
- 20
- D=Diameter(mm)
- 16
- 20
- 25
- 32
- D1(mm)
- 6.5
- 8.5
- 10.5
- 12.5
- D2(mm)
- 11
- 15
- 18
- 20
- D3(mm)
- 10
- 12
- 14
- 17
- H(mm)
- 42
- 52
- 66
- 83
- H1(mm)
- 20
- 25
- 32
- 40
- H2(mm)
- 6
- 8
- 10
- 12
- H3(mm)
- 10
- 12
- 16
- 20
- R(mm)
- 9
- 12
- 14
- 18
- R1(mm)
- 20
- 25
- 32
- 40
- R2(mm)
- 30
- 50
- 60
- 80
- F max.(kN)
- 4.8
- 8.8
- 13.9
- 20.2
- Type
- CAD
- 2D
- 3D
- Est. shipping days
- All
- Within 4 working days

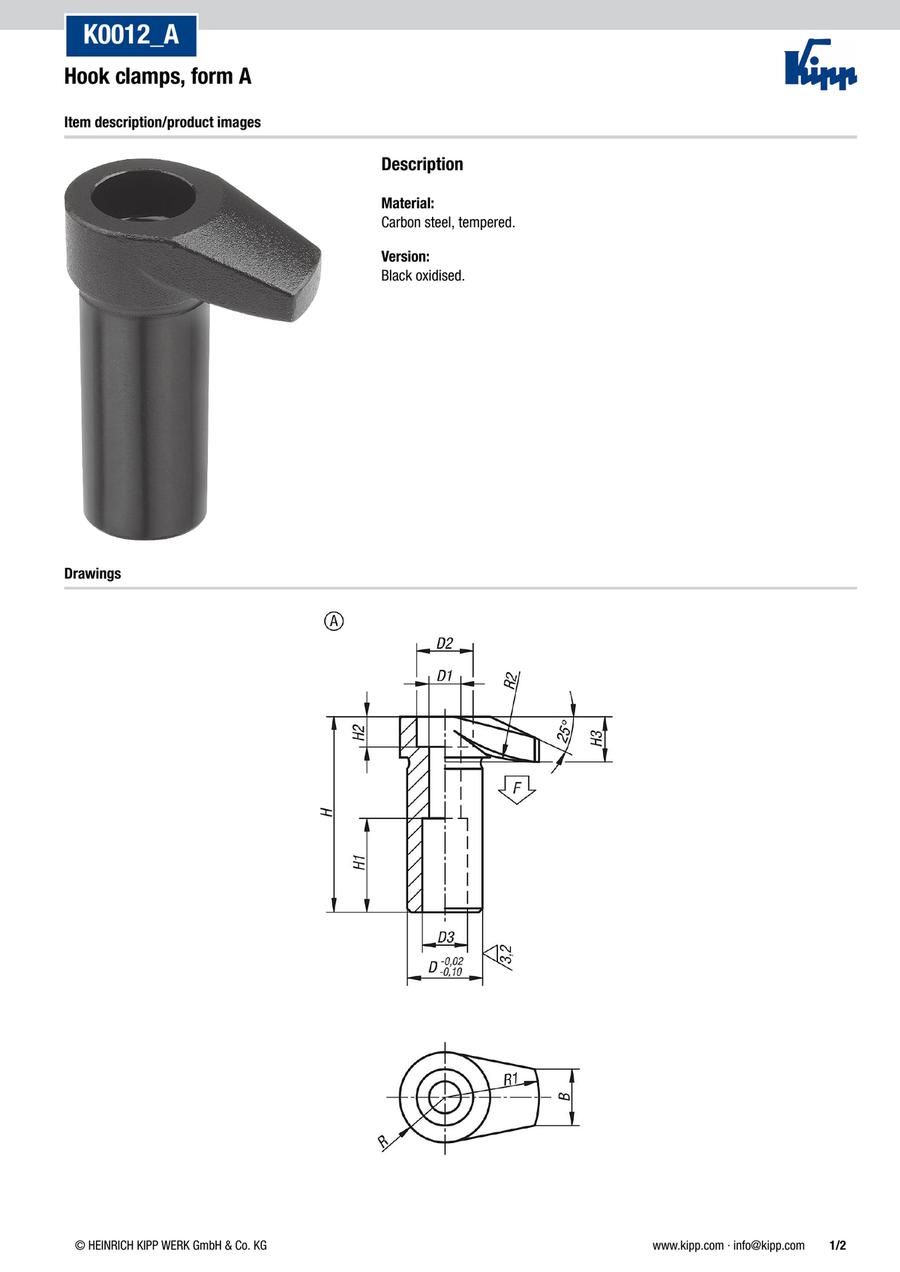

Hook clamps form A (K0012)
Part number:
possible part numbers found.More Information
Basic information
· Flexible application
· Application sectors: machine construction, toolmaking, fixture construction
· For clamping any workpiece and component
· Low space requirement
