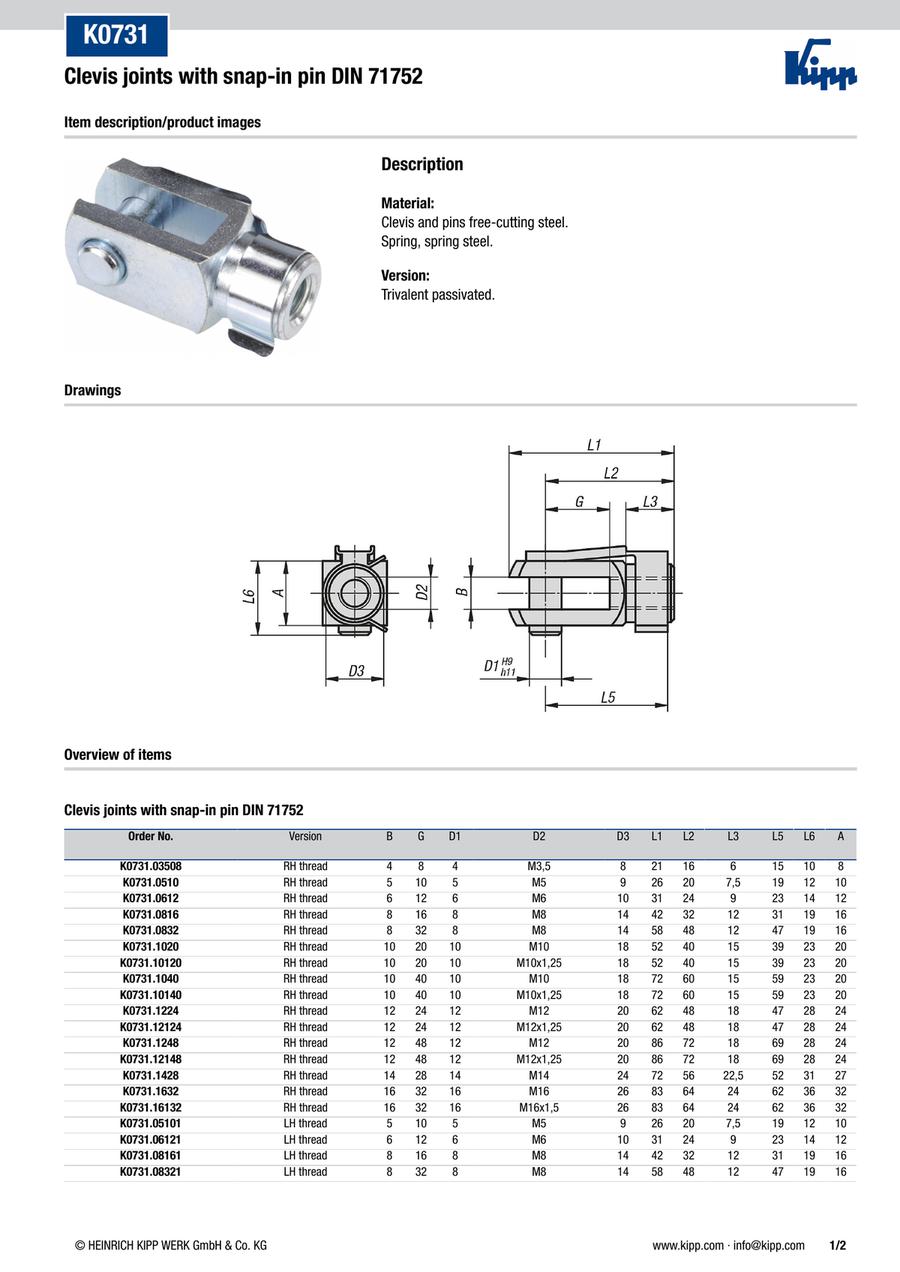

Clevis joints with snap-in pin DIN 71752 (K0731)
· Simple locking mechanism
· Version: right or left-hand thread
· Different thread sizes
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.
| Part Number |
Standard Unit Price
| Minimum order quantity | Volume Discount | D2=Thread (M) (mm) | Version 2 | B (mm) | G (mm) | A (mm) | D1 (mm) | D3 (mm) | L1 (mm) | L2 (mm) | L3 (mm) | L5 (mm) | L6 (mm) | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
3.28 € | 1 | 4 Days | 3,5 | RH thread | 4 | 8 | 8 | 4 | 8 | 21 | 16 | 6 | 15 | 10 | ||
2.04 € | 1 | 4 Days | 5 | RH thread | 5 | 10 | 10 | 5 | 9 | 26 | 20 | 7.5 | 19 | 12 | ||
2.46 € | 1 | 4 Days | 5 | LH thread | 5 | 10 | 10 | 5 | 9 | 26 | 20 | 7.5 | 19 | 12 | ||
2.36 € | 1 | 4 Days | 6 | RH thread | 6 | 12 | 12 | 6 | 10 | 31 | 24 | 9 | 23 | 14 | ||
2.55 € | 1 | 4 Days | 6 | LH thread | 6 | 12 | 12 | 6 | 10 | 31 | 24 | 9 | 23 | 14 | ||
2.86 € | 1 | 4 Days | 8 | RH thread | 8 | 16 | 16 | 8 | 14 | 42 | 32 | 12 | 31 | 19 | ||
2.90 € | 1 | 4 Days | 8 | LH thread | 8 | 16 | 16 | 8 | 14 | 42 | 32 | 12 | 31 | 19 | ||
3.29 € | 1 | 4 Days | 8 | RH thread | 8 | 32 | 16 | 8 | 14 | 58 | 48 | 12 | 47 | 19 | ||
3.36 € | 1 | 4 Days | 8 | LH thread | 8 | 32 | 16 | 8 | 14 | 58 | 48 | 12 | 47 | 19 | ||
4.00 € | 1 | 4 Days | 10x1,25 | RH thread | 10 | 20 | 20 | 10 | 18 | 52 | 40 | 15 | 39 | 23 | ||
4.57 € | 1 | 4 Days | 10x1,25 | RH thread | 10 | 40 | 20 | 10 | 18 | 72 | 60 | 15 | 59 | 23 | ||
3.63 € | 1 | 4 Days | 10 | RH thread | 10 | 20 | 20 | 10 | 18 | 52 | 40 | 15 | 39 | 23 | ||
3.83 € | 1 | 4 Days | 10 | LH thread | 10 | 20 | 20 | 10 | 18 | 52 | 40 | 15 | 39 | 23 | ||
4.14 € | 1 | 4 Days | 10 | RH thread | 10 | 40 | 20 | 10 | 18 | 72 | 60 | 15 | 59 | 23 | ||
4.44 € | 1 | 4 Days | 10 | LH thread | 10 | 40 | 20 | 10 | 18 | 72 | 60 | 15 | 59 | 23 | ||
5.69 € | 1 | 4 Days | 12x1,25 | RH thread | 12 | 24 | 24 | 12 | 20 | 62 | 48 | 18 | 47 | 28 | ||
6.67 € | 1 | 4 Days | 12x1,25 | RH thread | 12 | 48 | 24 | 12 | 20 | 86 | 72 | 18 | 69 | 28 | ||
5.20 € | 1 | 4 Days | 12 | RH thread | 12 | 24 | 24 | 12 | 20 | 62 | 48 | 18 | 47 | 28 | ||
5.44 € | 1 | 4 Days | 12 | LH thread | 12 | 24 | 24 | 12 | 20 | 62 | 48 | 18 | 47 | 28 | ||
6.05 € | 1 | 4 Days | 12 | RH thread | 12 | 48 | 24 | 12 | 20 | 86 | 72 | 18 | 69 | 28 | ||
7.04 € | 1 | 4 Days | 14 | RH thread | 14 | 28 | 27 | 14 | 24 | 72 | 56 | 22.5 | 52 | 31 | ||
11.32 € | 1 | 4 Days | 16x1,5 | RH thread | 16 | 32 | 32 | 16 | 26 | 83 | 64 | 24 | 62 | 36 | ||
10.25 € | 1 | 4 Days | 16 | RH thread | 16 | 32 | 32 | 16 | 26 | 83 | 64 | 24 | 62 | 36 | ||
10.38 € | 1 | 4 Days | 16 | LH thread | 16 | 32 | 32 | 16 | 26 | 83 | 64 | 24 | 62 | 36 |
Loading...
Basic information
| Material | Steel | Surface finish body | galvanised and passivated | Component material | Steel |
|---|
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
