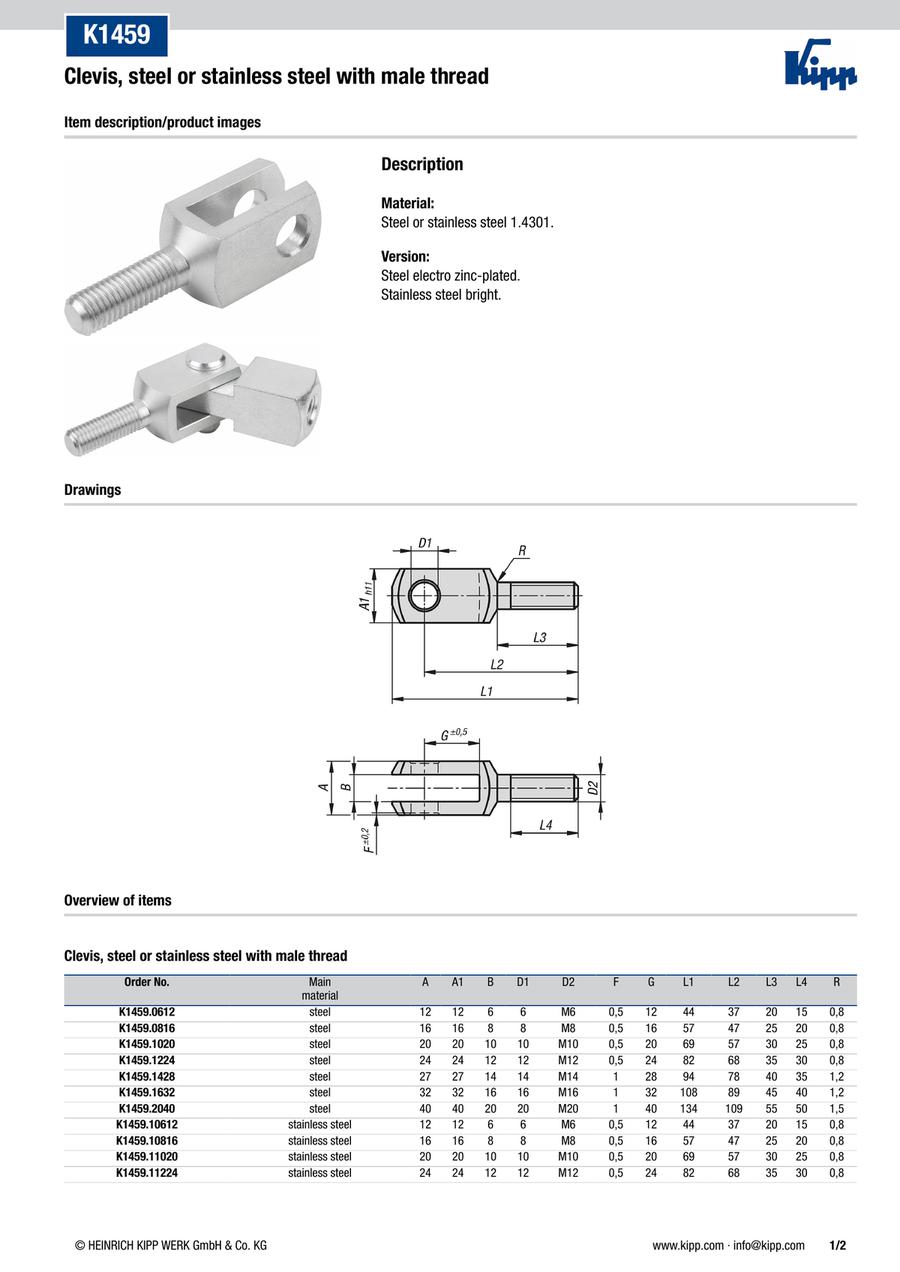

Clevis steel or stainless steel with male thread (K1459)
・Material: Steel, Stainless Steel
・Surface finish body: bright, galvanised
[Features]
・Transmission and redirection of forces
・Application sectors: machine and vehicle construction,material handling
・Material: steel or stainless steel 1.430.1
・Version: steel electro zinc-plated.Stainless steel bright
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.
Part Number
|
|---|
| K1459.0612 |
| K1459.0816 |
| K1459.1020 |
| K1459.10612 |
| K1459.10816 |
| K1459.11020 |
| K1459.11224 |
| K1459.11428 |
| K1459.11632 |
| K1459.12040 |
| K1459.1224 |
| K1459.1428 |
| K1459.1632 |
| K1459.2040 |
| Part Number |
Standard Unit Price
| Minimum order quantity | Volume Discount | D2=Thread (M) (mm) | Material | Steel code | Surface finish body | B (mm) | G (mm) | A (mm) | A1 (mm) | D1 (mm) | F (mm) | L1 (mm) | L2 (mm) | L3 (mm) | L4 (mm) | R (mm) | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
5.32 € | 1 | 4 Days | 6 | Steel | 1.0718 | galvanised | 6 | 12 | 12 | 12 | 6 | 0.5 | 44 | 37 | 20 | 15 | 0.8 | ||
3.94 € | 1 | 4 Days | 8 | Steel | 1.0718 | galvanised | 8 | 16 | 16 | 16 | 8 | 0.5 | 57 | 47 | 25 | 20 | 0.8 | ||
6.52 € | 1 | 4 Days | 10 | Steel | 1.0718 | galvanised | 10 | 20 | 20 | 20 | 10 | 0.5 | 69 | 57 | 30 | 25 | 0.8 | ||
10.90 € | 1 | 4 Days | 6 | Stainless Steel | 1.4305 | bright | 6 | 12 | 12 | 12 | 6 | 0.5 | 44 | 37 | 20 | 15 | 0.8 | ||
10.90 € | 1 | 4 Days | 8 | Stainless Steel | 1.4305 | bright | 8 | 16 | 16 | 16 | 8 | 0.5 | 57 | 47 | 25 | 20 | 0.8 | ||
23.36 € | 1 | 4 Days | 10 | Stainless Steel | 1.4305 | bright | 10 | 20 | 20 | 20 | 10 | 0.5 | 69 | 57 | 30 | 25 | 0.8 | ||
28.38 € | 1 | 4 Days | 12 | Stainless Steel | 1.4305 | bright | 12 | 24 | 24 | 24 | 12 | 0.5 | 82 | 68 | 35 | 30 | 0.8 | ||
45.16 € | 1 | 4 Days | 14 | Stainless Steel | 1.4305 | bright | 14 | 28 | 27 | 27 | 14 | 1 | 94 | 78 | 40 | 35 | 1.2 | ||
34.26 € | 1 | 4 Days | 16 | Stainless Steel | 1.4305 | bright | 16 | 32 | 32 | 32 | 16 | 1 | 108 | 89 | 45 | 40 | 1.2 | ||
86.80 € | 1 | 4 Days | 20 | Stainless Steel | 1.4305 | bright | 20 | 40 | 40 | 40 | 20 | 1 | 134 | 109 | 55 | 50 | 1.5 | ||
10.53 € | 1 | 4 Days | 12 | Steel | 1.0718 | galvanised | 12 | 24 | 24 | 24 | 12 | 0.5 | 82 | 68 | 35 | 30 | 0.8 | ||
16.81 € | 1 | 4 Days | 14 | Steel | 1.0718 | galvanised | 14 | 28 | 27 | 27 | 14 | 1 | 94 | 78 | 40 | 35 | 1.2 | ||
12.35 € | 1 | 4 Days | 16 | Steel | 1.0718 | galvanised | 16 | 32 | 32 | 32 | 16 | 1 | 108 | 89 | 45 | 40 | 1.2 | ||
21.87 € | 1 | 4 Days | 20 | Steel | 1.0718 | galvanised | 20 | 40 | 40 | 40 | 20 | 1 | 134 | 109 | 55 | 50 | 1.5 |
Loading...
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
