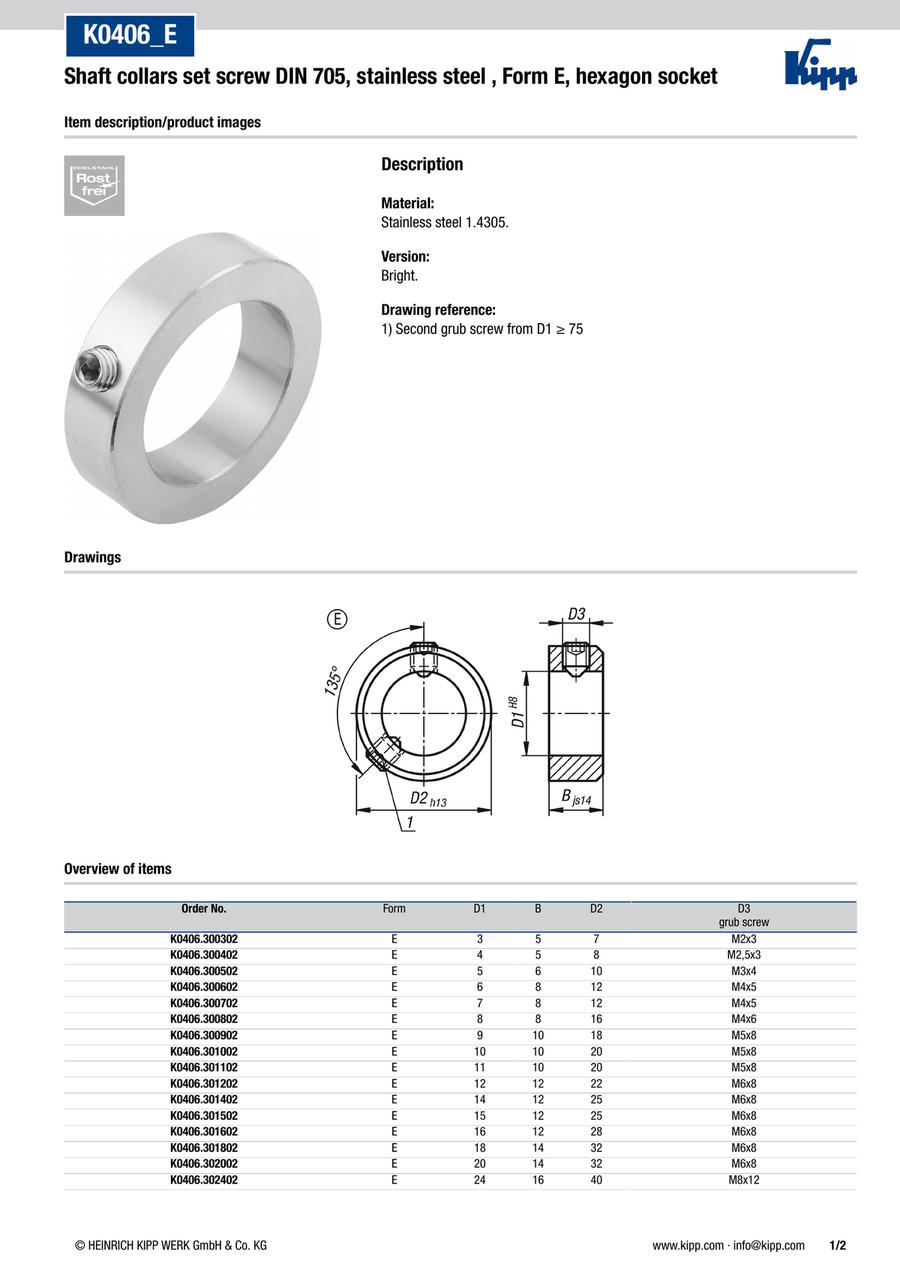

Shaft collars set screw DIN 705, stainless steel, Form E, hexagon socket (K0406)
・Form-Type: grub screw with hexagon socket
・Material: Stainless Steel
・Surface finish body: bright
[Features]
・Positioning and stop element for shafts
・Dimensionally precise
・Very high retaining forces
・Prevents damage to the shaft
・DIN 705
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.
| Part Number |
Standard Unit Price
| Minimum order quantity | Volume Discount | Internal diameter (mm) | Outside diameter (mm) | B=Thickness (mm) | D3 (grub screw) | |
|---|---|---|---|---|---|---|---|---|
1.32 € | 1 | 4 Days | 3 | 7 | 5 | M2x3 | ||
1.32 € | 1 | 4 Days | 4 | 8 | 5 | M2,5x3 | ||
1.32 € | 1 | 4 Days | 5 | 10 | 6 | M3x4 | ||
1.40 € | 1 | 4 Days | 6 | 12 | 8 | M4x5 | ||
1.40 € | 1 | 4 Days | 7 | 12 | 8 | M4x5 | ||
1.68 € | 1 | 4 Days | 8 | 16 | 8 | M4x6 | ||
1.90 € | 1 | 4 Days | 9 | 18 | 10 | M5x8 | ||
2.04 € | 1 | 4 Days | 10 | 20 | 10 | M5x8 | ||
2.09 € | 1 | 4 Days | 11 | 20 | 10 | M5x8 | ||
2.68 € | 1 | 4 Days | 12 | 22 | 12 | M6x8 | ||
3.04 € | 1 | 4 Days | 14 | 25 | 12 | M6x8 | ||
3.04 € | 1 | 4 Days | 15 | 25 | 12 | M6x8 | ||
4.28 € | 1 | 4 Days | 16 | 28 | 12 | M6x8 | ||
5.28 € | 1 | 4 Days | 18 | 32 | 14 | M6x8 | ||
5.28 € | 1 | 4 Days | 20 | 32 | 14 | M6x8 | ||
8.74 € | 1 | 4 Days | 24 | 40 | 16 | M8x12 | ||
8.74 € | 1 | 4 Days | 25 | 40 | 16 | M8x10 | ||
8.74 € | 1 | 4 Days | 26 | 40 | 16 | M8x10 | ||
10.26 € | 1 | 4 Days | 28 | 45 | 16 | M8x12 | ||
10.26 € | 1 | 4 Days | 30 | 45 | 16 | M8x10 | ||
13.02 € | 1 | 4 Days | 32 | 50 | 16 | M8x12 | ||
13.79 € | 1 | 4 Days | 35 | 56 | 16 | M8x12 | ||
15.50 € | 1 | 4 Days | 36 | 56 | 16 | M8x12 | ||
16.55 € | 1 | 4 Days | 38 | 56 | 16 | M8x12 | ||
21.68 € | 1 | 4 Days | 40 | 63 | 18 | M10x16 | ||
21.68 € | 1 | 4 Days | 42 | 63 | 18 | M10x16 | ||
25.23 € | 1 | 4 Days | 45 | 70 | 18 | M10x16 | ||
25.23 € | 1 | 4 Days | 48 | 70 | 18 | M10x16 | ||
26.91 € | 1 | 4 Days | 50 | 80 | 18 | M10x16 | ||
26.91 € | 1 | 4 Days | 52 | 80 | 18 | M10x16 | ||
26.91 € | 1 | 4 Days | 55 | 80 | 18 | M10x16 | ||
26.91 € | 1 | 4 Days | 56 | 80 | 18 | M10x16 | ||
41.39 € | 1 | 4 Days | 58 | 90 | 20 | M10x16 | ||
41.39 € | 1 | 4 Days | 60 | 90 | 20 | M10x16 | ||
41.39 € | 1 | 4 Days | 63 | 90 | 20 | M10x16 | ||
54.75 € | 1 | 4 Days | 65 | 100 | 20 | M10x20 | ||
54.75 € | 1 | 4 Days | 68 | 100 | 20 | M10x20 | ||
54.75 € | 1 | 4 Days | 70 | 100 | 20 | M10x20 | ||
73.46 € | 1 | 4 Days | 72 | 100 | 20 | M10x20 | ||
73.46 € | 1 | 4 Days | 75 | 110 | 22 | M12x20 | ||
73.46 € | 1 | 4 Days | 80 | 110 | 22 | M12x20 | ||
95.62 € | 1 | 4 Days | 85 | 125 | 22 | M12x25 | ||
95.62 € | 1 | 4 Days | 90 | 125 | 22 | M12x20 | ||
113.11 € | 1 | 4 Days | 100 | 140 | 25 | M12x25 |
Loading...
Basic information
| Material | Stainless Steel | Surface finish body | bright | Form | E |
|---|---|---|---|---|---|
| Form-Type | grub screw with hexagon socket |
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
