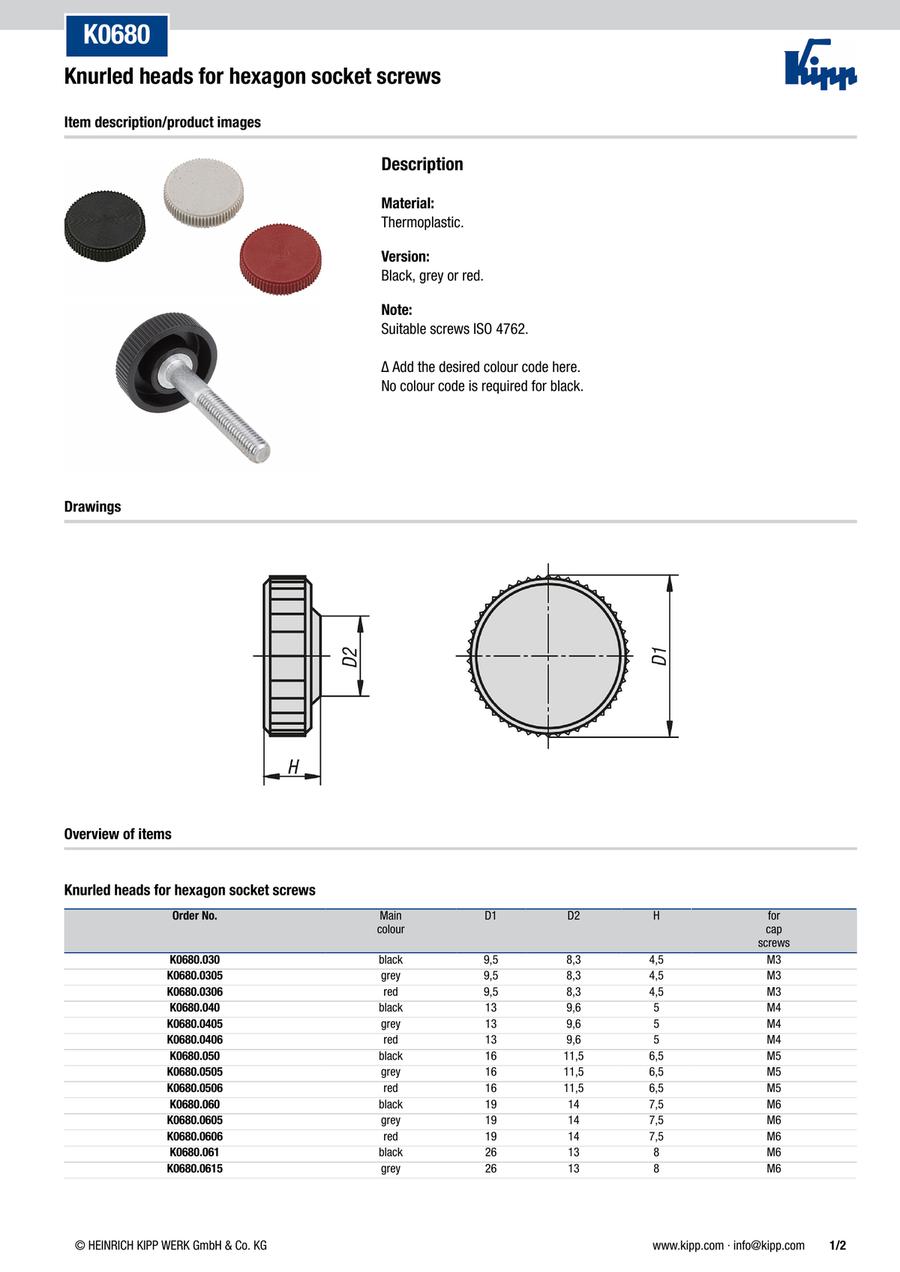

Knurled heads for hexagon socket screws (K0680)
· Application fields: machine, plant and fixture construction, toolmaking
· Advantage: knurled nut is tightened and loosened with tools
· Especially suitable for use with ISO 4762 screws
· Colours: black, grey and red
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.
Part Number
|
|---|
| K0680.030 |
| K0680.040 |
| K0680.050 |
| K0680.060 |
| K0680.061 |
| K0680.080 |
| K0680.0305 |
| K0680.0306 |
| K0680.0405 |
| K0680.0406 |
| K0680.0505 |
| K0680.0506 |
| K0680.0605 |
| K0680.0606 |
| K0680.0615 |
| K0680.0616 |
| K0680.0805 |
| K0680.0806 |
| Part Number |
Standard Unit Price
| Minimum order quantity | Volume Discount | Outside diameter (φ) | Main colour (mm) | D2 (mm) | H=Height (mm) | for SK screw (mm) | |
|---|---|---|---|---|---|---|---|---|---|
0.93 € | 1 | 4 Days | 9.5 | black | 8.3 | 4.5 | M3 | ||
0.93 € | 1 | 4 Days | 13 | black | 9.6 | 5 | M4 | ||
1.08 € | 1 | 4 Days | 16 | black | 11.5 | 6.5 | M5 | ||
1.08 € | 1 | 4 Days | 19 | black | 14 | 7.5 | M6 | ||
1.64 € | 1 | 4 Days | 26 | black | 13 | 8 | M6 | ||
1.64 € | 1 | 4 Days | 26 | black | 16 | 10 | M8 | ||
0.93 € | 1 | 4 Days | 9.5 | grey | 8.3 | 4.5 | M3 | ||
0.93 € | 1 | 4 Days | 9.5 | red | 8.3 | 4.5 | M3 | ||
0.93 € | 1 | 4 Days | 13 | grey | 9.6 | 5 | M4 | ||
0.93 € | 1 | 4 Days | 13 | red | 9.6 | 5 | M4 | ||
1.08 € | 1 | 4 Days | 16 | grey | 11.5 | 6.5 | M5 | ||
1.08 € | 1 | 4 Days | 16 | red | 11.5 | 6.5 | M5 | ||
1.08 € | 1 | 4 Days | 19 | grey | 14 | 7.5 | M6 | ||
1.08 € | 1 | 4 Days | 19 | red | 14 | 7.5 | M6 | ||
1.64 € | 1 | 4 Days | 26 | grey | 13 | 8 | M6 | ||
1.64 € | 1 | 4 Days | 26 | red | 13 | 8 | M6 | ||
1.64 € | 1 | 4 Days | 26 | grey | 16 | 10 | M8 | ||
1.64 € | 1 | 4 Days | 26 | red | 16 | 10 | M8 |
Loading...
Basic information
| Main Body Material | Other | Main material(mm) | Thermoplastic |
|---|
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
