Cam levers adjustable external thread, stainless steel, thrust washer stainless steel (K0647)

Configure

A=Handle length(mm)
- 36.2
- 52.3
- 70.4
- 96
Surface finish body
- blasted
- electropolished
Size
- 0
- 1
- 2
- 9
A=Handle length(mm)
- 36.2
- 52.3
- 70.4
- 96
A1=Handle length(mm)
- 41.7
- 59.1
- 79.2
- 108
B=Width(mm)
- 14.4
- 18
- 21.5
- 33.3
B1(mm)
- 11.5
- 13
- 15
- 24
D=thread(mm)
- M3
- M4
- M5
- M6
- M8
- M10
D1(mm)
- 12
- 15.4
- 18
- 27
D2(mm)
- 6
- 8
- 9
- 11
H(mm)
- 9
- 11.4
- 14.7
- 18.3
H1=Height(mm)
- 13.5
- 17.2
- 22
- 28.8
L=thread length(mm)
- 10
- 15
- 20
- 25
- 30
- 40
- 50
Clamping force F(kN)
- 1.5
- 2.5
- 4
- 8
Hand force FH(N)
- 90
- 100
- 120
- 350
Travel S(mm)
- 1
- 1.2
- 1.5
Type
CAD
- 2D
- 3D
Est. shipping days
- All
- Within 4 working days

Cam levers adjustable external thread, stainless steel, thrust washer stainless steel (K0647)

Catalog

Part number:

Still undefined. 58 possible part numbers found.

Part number list
More Information
Catalog

Part number list

Number of items

Part number

A=Handle length

(mm)

Surface finish body

Size

A=Handle length

(mm)

A1=Handle length

(mm)

B=Width

(mm)

D=thread

(mm)

H1=Height

(mm)

L=thread length

(mm)

Clamping force F

(kN)

Hand force FH

(N)

Travel S

(mm)

Minimum order quantity

52.3	electropolished	0	52.3	59.1	18	13	M4	15.4	8	11.4	17.2	15	2.5	100	1	1 pieces
52.3	electropolished	0	52.3	59.1	18	13	M4	15.4	8	11.4	17.2	20	2.5	100	1	1 pieces
52.3	electropolished	0	52.3	59.1	18	13	M4	15.4	8	11.4	17.2	30	2.5	100	1	1 pieces
52.3	electropolished	0	52.3	59.1	18	13	M5	15.4	8	11.4	17.2	20	2.5	100	1	1 pieces
52.3	electropolished	0	52.3	59.1	18	13	M5	15.4	8	11.4	17.2	30	2.5	100	1	1 pieces
52.3	electropolished	0	52.3	59.1	18	13	M5	15.4	8	11.4	17.2	40	2.5	100	1	1 pieces
52.3	electropolished	0	52.3	59.1	18	13	M5	15.4	8	11.4	17.2	50	2.5	100	1	1 pieces
52.3	blasted	0	52.3	59.1	18	13	M4	15.4	8	11.4	17.2	15	2.5	100	1	1 pieces
52.3	blasted	0	52.3	59.1	18	13	M4	15.4	8	11.4	17.2	20	2.5	100	1	1 pieces
52.3	blasted	0	52.3	59.1	18	13	M4	15.4	8	11.4	17.2	30	2.5	100	1	1 pieces
52.3	blasted	0	52.3	59.1	18	13	M5	15.4	8	11.4	17.2	20	2.5	100	1	1 pieces
52.3	blasted	0	52.3	59.1	18	13	M5	15.4	8	11.4	17.2	30	2.5	100	1	1 pieces
52.3	blasted	0	52.3	59.1	18	13	M5	15.4	8	11.4	17.2	40	2.5	100	1	1 pieces
52.3	blasted	0	52.3	59.1	18	13	M5	15.4	8	11.4	17.2	50	2.5	100	1	1 pieces
70.4	electropolished	1	70.4	79.2	21.5	15	M5	18	9	14.7	22	20	4	120	1.2	1 pieces
70.4	electropolished	1	70.4	79.2	21.5	15	M5	18	9	14.7	22	30	4	120	1.2	1 pieces
70.4	electropolished	1	70.4	79.2	21.5	15	M5	18	9	14.7	22	40	4	120	1.2	1 pieces
70.4	electropolished	1	70.4	79.2	21.5	15	M5	18	9	14.7	22	50	4	120	1.2	1 pieces
70.4	electropolished	1	70.4	79.2	21.5	15	M6	18	9	14.7	22	20	4	120	1.2	1 pieces
70.4	electropolished	1	70.4	79.2	21.5	15	M6	18	9	14.7	22	30	4	120	1.2	1 pieces
70.4	electropolished	1	70.4	79.2	21.5	15	M6	18	9	14.7	22	40	4	120	1.2	1 pieces
70.4	electropolished	1	70.4	79.2	21.5	15	M6	18	9	14.7	22	50	4	120	1.2	1 pieces
70.4	blasted	1	70.4	79.2	21.5	15	M5	18	9	14.7	22	20	4	120	1.2	1 pieces
70.4	blasted	1	70.4	79.2	21.5	15	M5	18	9	14.7	22	30	4	120	1.2	1 pieces
70.4	blasted	1	70.4	79.2	21.5	15	M5	18	9	14.7	22	40	4	120	1.2	1 pieces
70.4	blasted	1	70.4	79.2	21.5	15	M5	18	9	14.7	22	50	4	120	1.2	1 pieces
70.4	blasted	1	70.4	79.2	21.5	15	M6	18	9	14.7	22	20	4	120	1.2	1 pieces
70.4	blasted	1	70.4	79.2	21.5	15	M6	18	9	14.7	22	30	4	120	1.2	1 pieces
70.4	blasted	1	70.4	79.2	21.5	15	M6	18	9	14.7	22	40	4	120	1.2	1 pieces
70.4	blasted	1	70.4	79.2	21.5	15	M6	18	9	14.7	22	50	4	120	1.2	1 pieces
96	electropolished	2	96	108	33.3	24	M8	27	11	18.3	28.8	25	8	350	1.5	1 pieces
96	electropolished	2	96	108	33.3	24	M8	27	11	18.3	28.8	30	8	350	1.5	1 pieces
96	electropolished	2	96	108	33.3	24	M8	27	11	18.3	28.8	40	8	350	1.5	1 pieces
96	electropolished	2	96	108	33.3	24	M8	27	11	18.3	28.8	50	8	350	1.5	1 pieces
96	electropolished	2	96	108	33.3	24	M10	27	11	18.3	28.8	25	8	350	1.5	1 pieces
96	electropolished	2	96	108	33.3	24	M10	27	11	18.3	28.8	30	8	350	1.5	1 pieces
96	electropolished	2	96	108	33.3	24	M10	27	11	18.3	28.8	40	8	350	1.5	1 pieces
96	electropolished	2	96	108	33.3	24	M10	27	11	18.3	28.8	50	8	350	1.5	1 pieces
96	blasted	2	96	108	33.3	24	M8	27	11	18.3	28.8	25	8	350	1.5	1 pieces
96	blasted	2	96	108	33.3	24	M8	27	11	18.3	28.8	30	8	350	1.5	1 pieces
96	blasted	2	96	108	33.3	24	M8	27	11	18.3	28.8	40	8	350	1.5	1 pieces
96	blasted	2	96	108	33.3	24	M8	27	11	18.3	28.8	50	8	350	1.5	1 pieces
96	blasted	2	96	108	33.3	24	M10	27	11	18.3	28.8	25	8	350	1.5	1 pieces
96	blasted	2	96	108	33.3	24	M10	27	11	18.3	28.8	30	8	350	1.5	1 pieces
96	blasted	2	96	108	33.3	24	M10	27	11	18.3	28.8	40	8	350	1.5	1 pieces
96	blasted	2	96	108	33.3	24	M10	27	11	18.3	28.8	50	8	350	1.5	1 pieces
36.2	electropolished	9	36.2	41.7	14.4	11.5	M3	12	6	9	13.5	10	1.5	90	1	1 pieces
36.2	electropolished	9	36.2	41.7	14.4	11.5	M3	12	6	9	13.5	15	1.5	90	1	1 pieces
36.2	electropolished	9	36.2	41.7	14.4	11.5	M3	12	6	9	13.5	30	1.5	90	1	1 pieces
36.2	electropolished	9	36.2	41.7	14.4	11.5	M4	12	6	9	13.5	10	1.5	90	1	1 pieces
36.2	electropolished	9	36.2	41.7	14.4	11.5	M4	12	6	9	13.5	15	1.5	90	1	1 pieces
36.2	electropolished	9	36.2	41.7	14.4	11.5	M4	12	6	9	13.5	30	1.5	90	1	1 pieces
36.2	blasted	9	36.2	41.7	14.4	11.5	M3	12	6	9	13.5	10	1.5	90	1	1 pieces
36.2	blasted	9	36.2	41.7	14.4	11.5	M3	12	6	9	13.5	15	1.5	90	1	1 pieces
36.2	blasted	9	36.2	41.7	14.4	11.5	M3	12	6	9	13.5	30	1.5	90	1	1 pieces
36.2	blasted	9	36.2	41.7	14.4	11.5	M4	12	6	9	13.5	10	1.5	90	1	1 pieces
36.2	blasted	9	36.2	41.7	14.4	11.5	M4	12	6	9	13.5	15	1.5	90	1	1 pieces
36.2	blasted	9	36.2	41.7	14.4	11.5	M4	12	6	9	13.5	30	1.5	90	1	1 pieces

Unit price (excluding VAT)(Unit price including VAT)	Standard shipping days

21.87 € ( 26.03 € )	4 working days
21.87 € ( 26.03 € )	4 working days
21.87 € ( 26.03 € )	4 working days
21.87 € ( 26.03 € )	4 working days
21.87 € ( 26.03 € )	4 working days
22.67 € ( 26.98 € )	4 working days
22.67 € ( 26.98 € )	4 working days
19.69 € ( 23.43 € )	4 working days
19.69 € ( 23.43 € )	4 working days
19.69 € ( 23.43 € )	4 working days
19.69 € ( 23.43 € )	4 working days
19.69 € ( 23.43 € )	4 working days
20.39 € ( 24.26 € )	4 working days
20.39 € ( 24.26 € )	4 working days
25.69 € ( 30.57 € )	4 working days
25.69 € ( 30.57 € )	4 working days
26.65 € ( 31.71 € )	4 working days
26.65 € ( 31.71 € )	4 working days
25.69 € ( 30.57 € )	4 working days
25.69 € ( 30.57 € )	4 working days
26.65 € ( 31.71 € )	4 working days
26.65 € ( 31.71 € )	4 working days
23.15 € ( 27.55 € )	4 working days
23.15 € ( 27.55 € )	4 working days
24.01 € ( 28.57 € )	4 working days
24.01 € ( 28.57 € )	4 working days
23.15 € ( 27.55 € )	4 working days
23.15 € ( 27.55 € )	4 working days
24.01 € ( 28.57 € )	4 working days
24.01 € ( 28.57 € )	4 working days
34.90 € ( 41.53 € )	4 working days
34.90 € ( 41.53 € )	4 working days
35.96 € ( 42.79 € )	4 working days
35.96 € ( 42.79 € )	4 working days
34.90 € ( 41.53 € )	4 working days
34.90 € ( 41.53 € )	4 working days
35.96 € ( 42.79 € )	4 working days
35.96 € ( 42.79 € )	4 working days
31.42 € ( 37.39 € )	4 working days
31.42 € ( 37.39 € )	4 working days
32.33 € ( 38.47 € )	4 working days
32.33 € ( 38.47 € )	4 working days
31.42 € ( 37.39 € )	4 working days
31.42 € ( 37.39 € )	4 working days
32.33 € ( 38.47 € )	4 working days
32.33 € ( 38.47 € )	4 working days
20.59 € ( 24.50 € )	4 working days
20.59 € ( 24.50 € )	4 working days
20.59 € ( 24.50 € )	4 working days
20.59 € ( 24.50 € )	4 working days
20.59 € ( 24.50 € )	4 working days
20.59 € ( 24.50 € )	4 working days
18.52 € ( 22.04 € )	4 working days
18.52 € ( 22.04 € )	4 working days
18.52 € ( 22.04 € )	4 working days
18.52 € ( 22.04 € )	4 working days
18.52 € ( 22.04 € )	4 working days
18.52 € ( 22.04 € )	4 working days

More Information

Basic information

Basic information

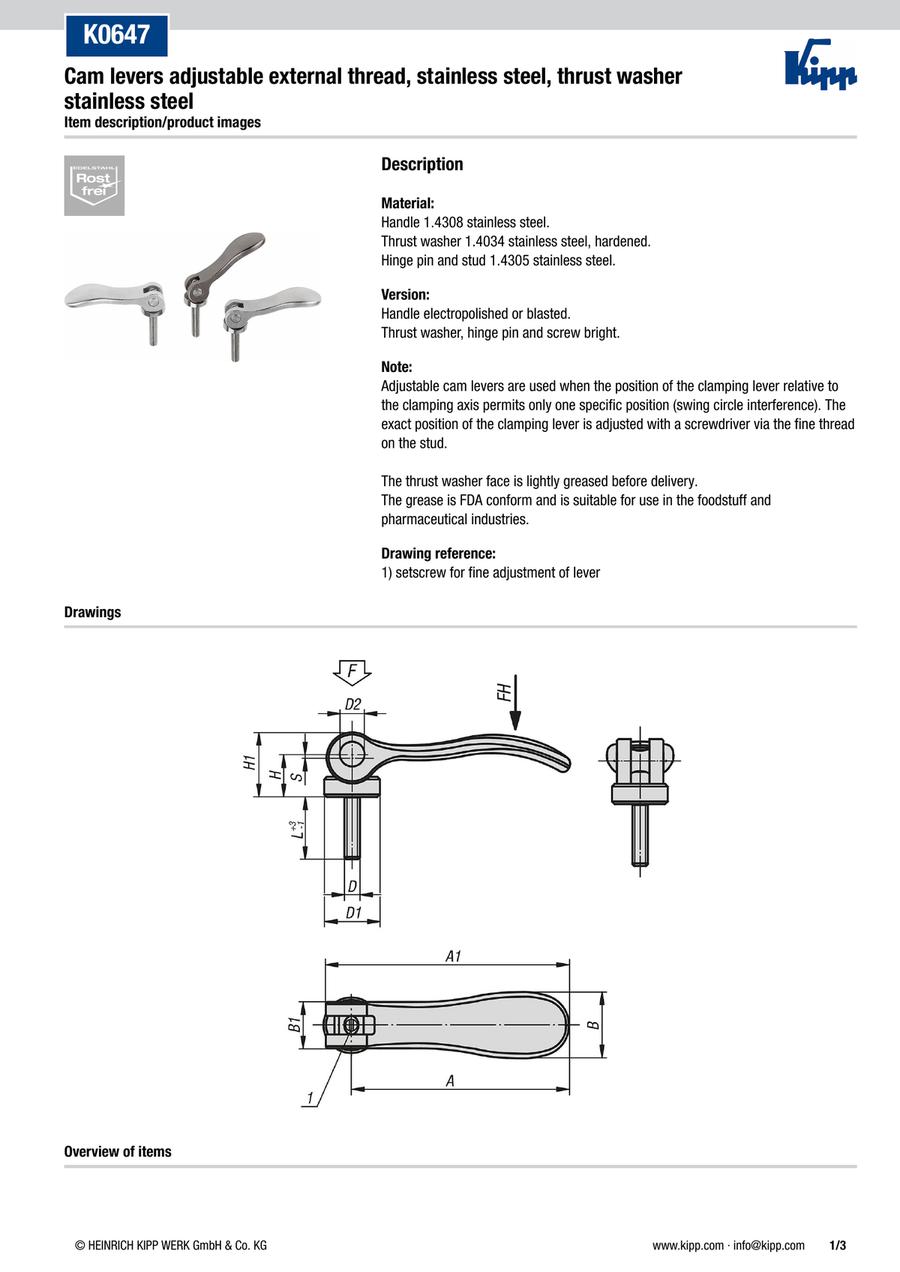

· Cam levers can be used to clamp workpieces quickly and torque-free

· Advantage: workpiece needs no further securing

· Precise clamping adjustment via a fine thread setscrew

· Application fields: machine and assembly construction, rehabilitation and medical technology

· Versions: electropolished or abrasive blasted
