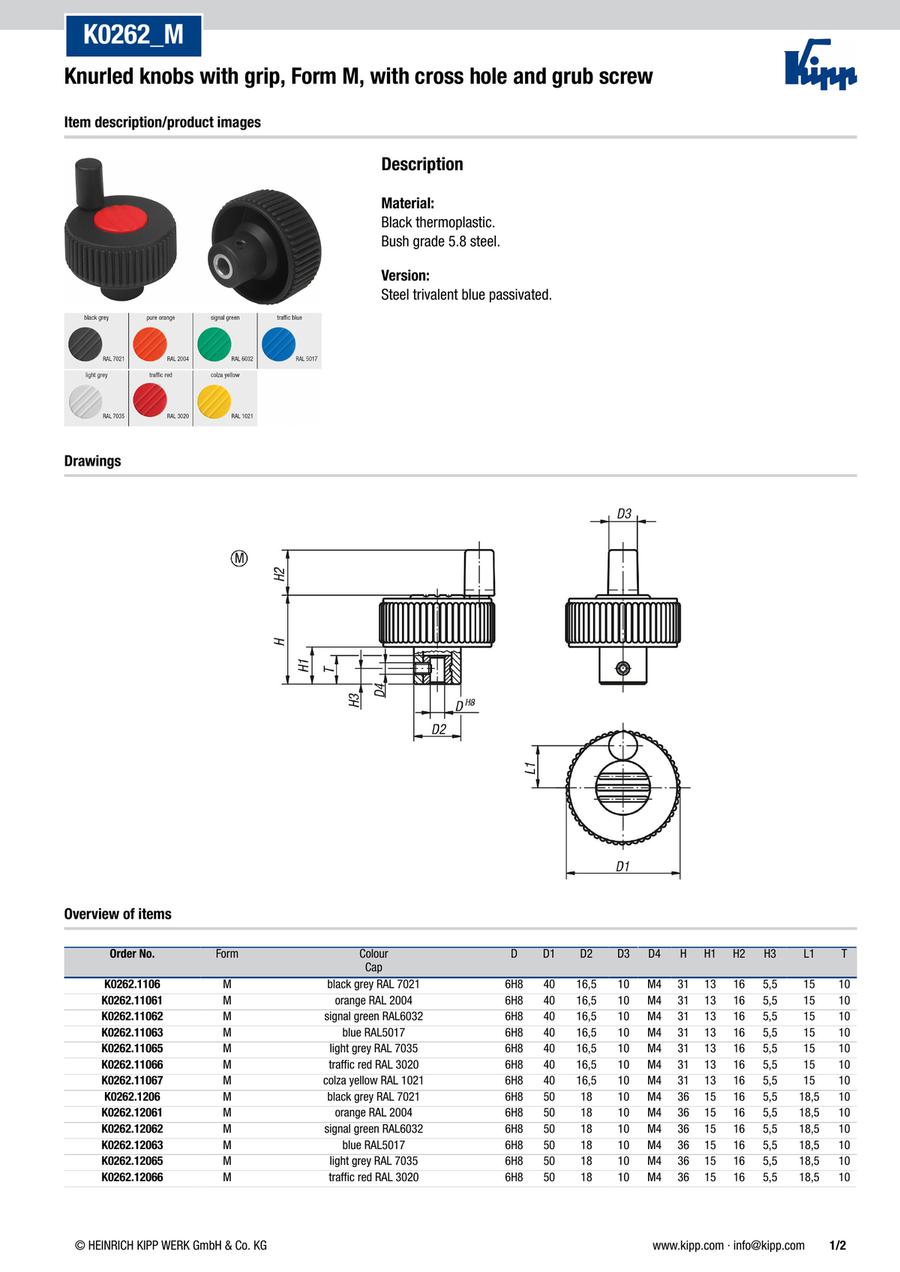

Knurled knobs with grip, Form M, with cross hole and grub screw (K0262)
· Application fields: machine, plant and fixture construction, toolmaking
· The NOVO grip product range represents an attractive design and an easy-to-grip form
· Form M: with transverse hole and grub screw
· Various colours available
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.
| Part Number |
Standard Unit Price
| Minimum order quantity | Volume Discount | Outside diameter (φ) | Colour Cap (mm) | Size (mm) | D=bore | D2 (mm) | H=Height (mm) | H1 (Nm) | H3 | L1 (mm) | T=bore depth (mm) | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
9.38 € | 1 | 4 Days | 40 | black grey RAL 7021 | 1 | 6H8 | 16.5 | 31 | 13 | 5.5 | 15 | 10 | ||
9.38 € | 1 | 4 Days | 40 | orange RAL 2004 | 1 | 6H8 | 16.5 | 31 | 13 | 5.5 | 15 | 10 | ||
9.38 € | 1 | 4 Days | 40 | signal green RAL6032 | 1 | 6H8 | 16.5 | 31 | 13 | 5.5 | 15 | 10 | ||
9.38 € | 1 | 4 Days | 40 | blue RAL5017 | 1 | 6H8 | 16.5 | 31 | 13 | 5.5 | 15 | 10 | ||
9.38 € | 1 | 4 Days | 40 | light grey RAL 7035 | 1 | 6H8 | 16.5 | 31 | 13 | 5.5 | 15 | 10 | ||
9.38 € | 1 | 4 Days | 40 | traffic red RAL 3020 | 1 | 6H8 | 16.5 | 31 | 13 | 5.5 | 15 | 10 | ||
9.38 € | 1 | 4 Days | 40 | rape yellow RAL 1021 | 1 | 6H8 | 16.5 | 31 | 13 | 5.5 | 15 | 10 | ||
10.43 € | 1 | 4 Days | 50 | black grey RAL 7021 | 2 | 6H8 | 18 | 36 | 15 | 5.5 | 18.5 | 10 | ||
10.43 € | 1 | 4 Days | 50 | orange RAL 2004 | 2 | 6H8 | 18 | 36 | 15 | 5.5 | 18.5 | 10 | ||
10.43 € | 1 | 4 Days | 50 | signal green RAL6032 | 2 | 6H8 | 18 | 36 | 15 | 5.5 | 18.5 | 10 | ||
10.43 € | 1 | 4 Days | 50 | blue RAL5017 | 2 | 6H8 | 18 | 36 | 15 | 5.5 | 18.5 | 10 | ||
10.43 € | 1 | 4 Days | 50 | light grey RAL 7035 | 2 | 6H8 | 18 | 36 | 15 | 5.5 | 18.5 | 10 | ||
10.43 € | 1 | 4 Days | 50 | traffic red RAL 3020 | 2 | 6H8 | 18 | 36 | 15 | 5.5 | 18.5 | 10 | ||
10.43 € | 1 | 4 Days | 50 | rape yellow RAL 1021 | 2 | 6H8 | 18 | 36 | 15 | 5.5 | 18.5 | 10 | ||
11.51 € | 1 | 4 Days | 63 | black grey RAL 7021 | 3 | 8H8 | 22 | 41 | 17 | 8 | 25 | 14 | ||
11.51 € | 1 | 4 Days | 63 | orange RAL 2004 | 3 | 8H8 | 22 | 41 | 17 | 8 | 25 | 14 | ||
11.51 € | 1 | 4 Days | 63 | signal green RAL6032 | 3 | 8H8 | 22 | 41 | 17 | 8 | 25 | 14 | ||
11.51 € | 1 | 4 Days | 63 | blue RAL5017 | 3 | 8H8 | 22 | 41 | 17 | 8 | 25 | 14 | ||
11.51 € | 1 | 4 Days | 63 | light grey RAL 7035 | 3 | 8H8 | 22 | 41 | 17 | 8 | 25 | 14 | ||
11.51 € | 1 | 4 Days | 63 | traffic red RAL 3020 | 3 | 8H8 | 22 | 41 | 17 | 8 | 25 | 14 | ||
11.51 € | 1 | 4 Days | 63 | rape yellow RAL 1021 | 3 | 8H8 | 22 | 41 | 17 | 8 | 25 | 14 |
Loading...
Basic information
| Main Body Material | Other | Main material(mm) | Thermoplastic | Component material(mm) | Steel |
|---|---|---|---|---|---|
| Main colour(mm) | black grey RAL 7021 | Form(mm) | M | D3(mm) | 10 |
| D4(mm) | M4 | H2 | 16 |
Configure
Basic Attributes
-
Outside diameter(φ)
-
Colour Cap(mm)
-
Size(mm)
-
D=bore
-
D2(mm)
-
H=Height(mm)
-
H1(Nm)
-
H3
-
L1(mm)
-
T=bore depth(mm)
-
Type
-
Filter by CAD data type
- 2D
- 3D
Filter by standard shipping days
-
- All
- 4 Days or Less
Optional Attributes
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
