    KIPP

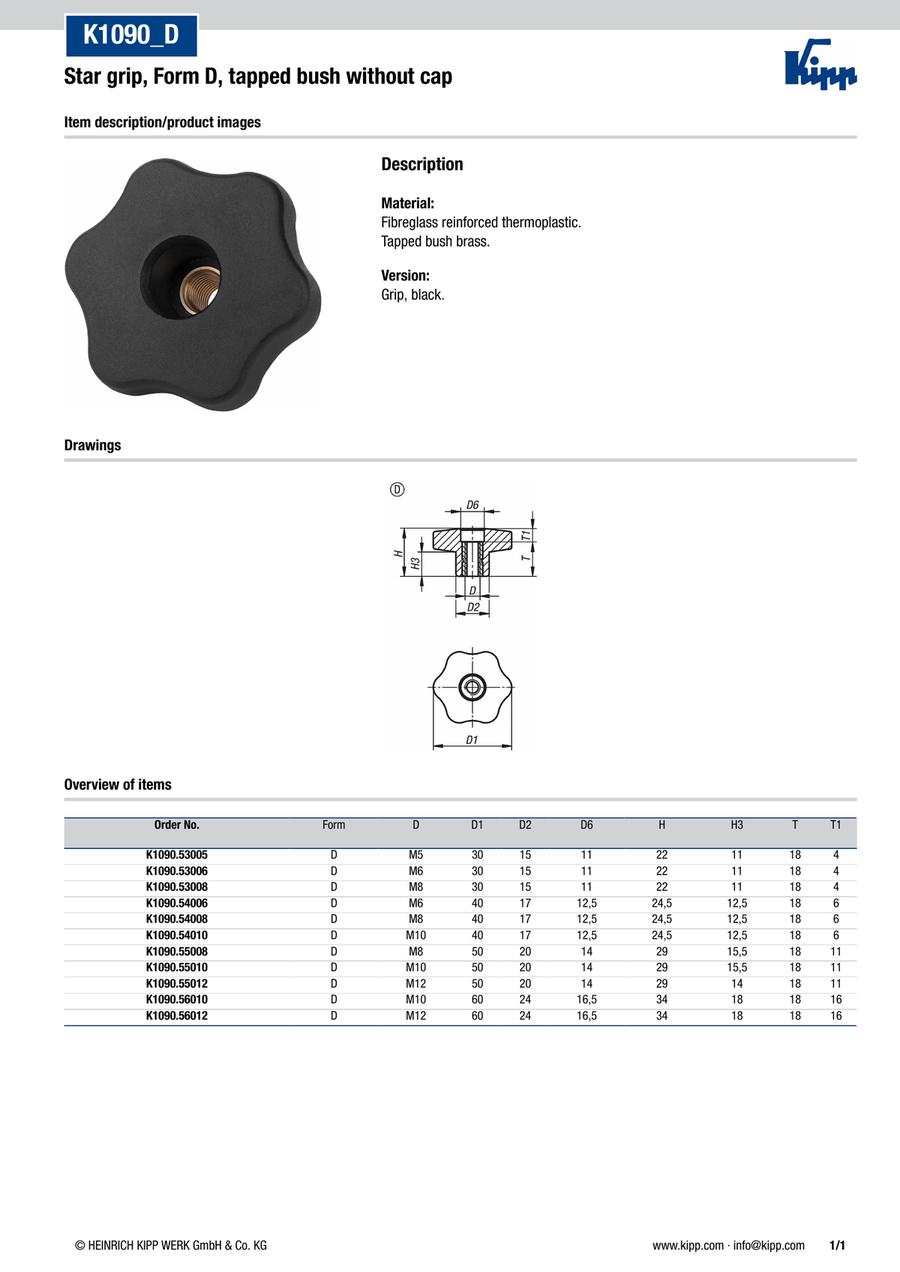

    Star grip, Form D, tapped bush, without cap (K1090)

    Star grip, Form D, tapped bush, without cap (K1090)

    Part number:

    Still undefined. 11 possible part numbers found.
    Quantity:

    Part number list

    Number of items
  • 1
    • Part number
    K1090.53005
    K1090.53006
    K1090.53008
    K1090.54006
    K1090.54008
    K1090.54010
    K1090.55008
    K1090.55010
    K1090.55012
    K1090.56010
    K1090.56012

    Thread

    Outside diameter

    (φ)

    D2

    (mm)

    D6

    (mm)

    H=Height

    (mm)

    H3

    T1

    (mm)

    		Minimum order quantity
    M5
    30
    15
    11
    22
    11
    4
    1 pieces
    M6
    30
    15
    11
    22
    11
    4
    1 pieces
    M8
    30
    15
    11
    22
    11
    4
    1 pieces
    M6
    40
    17
    12.5
    24.5
    12.5
    6
    1 pieces
    M8
    40
    17
    12.5
    24.5
    12.5
    6
    1 pieces
    M10
    40
    17
    12.5
    24.5
    12.5
    6
    1 pieces
    M8
    50
    20
    14
    29
    15.5
    11
    1 pieces
    M10
    50
    20
    14
    29
    15.5
    11
    1 pieces
    M12
    50
    20
    14
    29
    14
    11
    1 pieces
    M10
    60
    24
    16.5
    34
    18
    16
    1 pieces
    M12
    60
    24
    16.5
    34
    18
    16
    1 pieces
    Unit price (excluding VAT)(Unit price including VAT)
    Standard shipping days
    1.21 €
    ( 1.44 € )
    4 working days
    1.08 €
    ( 1.29 € )
    4 working days
    1.12 €
    ( 1.33 € )
    4 working days
    1.68 €
    ( 2.00 € )
    4 working days
    1.69 €
    ( 2.01 € )
    4 working days
    1.84 €
    ( 2.19 € )
    4 working days
    2.15 €
    ( 2.56 € )
    4 working days
    2.30 €
    ( 2.74 € )
    4 working days
    2.46 €
    ( 2.93 € )
    4 working days
    2.56 €
    ( 3.05 € )
    4 working days
    2.75 €
    ( 3.27 € )
    4 working days
  • 1

    • More Information

    Basic information

    · Can be used as a clamping, retaining and fastening element

    · Application fields: machine, plant and fixture construction, toolmaking

    · For manually adjusting assemblies, machines and aggregates

    · Form D: tapped bush without cap

    · Different thread sizes
