    KIPP

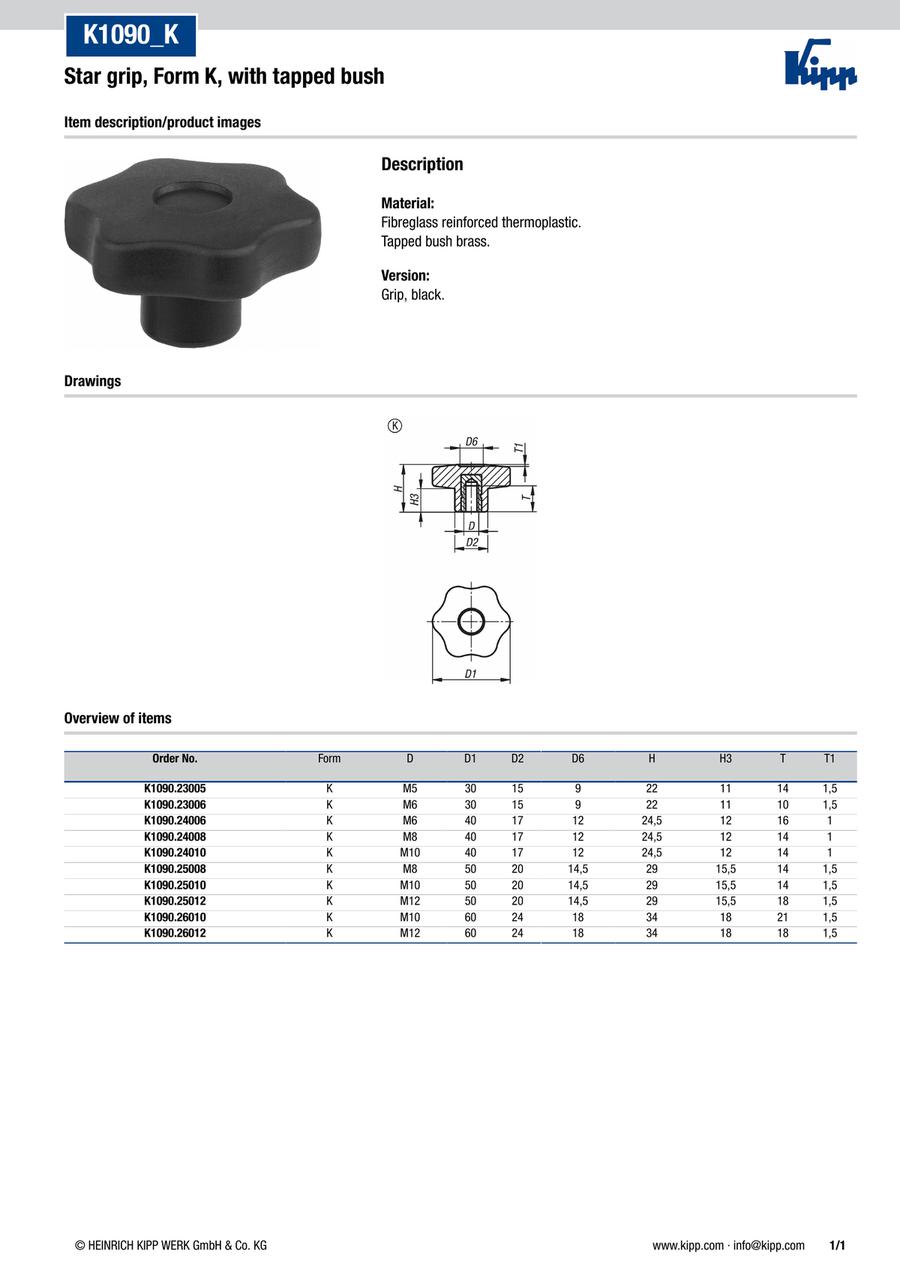

    Star grip, Form K, with tapped bush (K1090)

    Star grip, Form K, with tapped bush (K1090)

    Part number:

    Still undefined. 10 possible part numbers found.
    Quantity:

    Part number list

    Number of items
  • 1
    • Part number
    K1090.23005
    K1090.23006
    K1090.24006
    K1090.24008
    K1090.24010
    K1090.25008
    K1090.25010
    K1090.25012
    K1090.26010
    K1090.26012

    Thread

    Outside diameter

    (φ)

    D2

    (mm)

    D6

    (mm)

    H=Height

    (mm)

    H3

    T=thread depth

    (mm)

    T1

    (mm)

    		Minimum order quantity
    M5
    30
    15
    9
    22
    11
    14
    1.5
    1 pieces
    M6
    30
    15
    9
    22
    11
    10
    1.5
    1 pieces
    M6
    40
    17
    12
    24.5
    12
    16
    1
    1 pieces
    M8
    40
    17
    12
    24.5
    12
    14
    1
    1 pieces
    M10
    40
    17
    12
    24.5
    12
    14
    1
    1 pieces
    M8
    50
    20
    14.5
    29
    15.5
    14
    1.5
    1 pieces
    M10
    50
    20
    14.5
    29
    15.5
    14
    1.5
    1 pieces
    M12
    50
    20
    14.5
    29
    15.5
    18
    1.5
    1 pieces
    M10
    60
    24
    18
    34
    18
    21
    1.5
    1 pieces
    M12
    60
    24
    18
    34
    18
    18
    1.5
    1 pieces
    Unit price (excluding VAT)(Unit price including VAT)
    Standard shipping days
    1.04 €
    ( 1.24 € )
    4 working days
    1.13 €
    ( 1.34 € )
    4 working days
    1.62 €
    ( 1.93 € )
    4 working days
    1.62 €
    ( 1.93 € )
    4 working days
    1.71 €
    ( 2.03 € )
    4 working days
    1.83 €
    ( 2.18 € )
    4 working days
    1.99 €
    ( 2.37 € )
    4 working days
    2.45 €
    ( 2.92 € )
    4 working days
    2.76 €
    ( 3.28 € )
    4 working days
    2.91 €
    ( 3.46 € )
    4 working days
  • 1

    • More Information

    Basic information

    · Can be used as a clamping, retaining and fastening element

    · Application fields: machine, plant and fixture construction, toolmaking

    · For manually adjusting assemblies, machines and aggregates

    · Form K: with tapped bush

    · Different thread sizes
