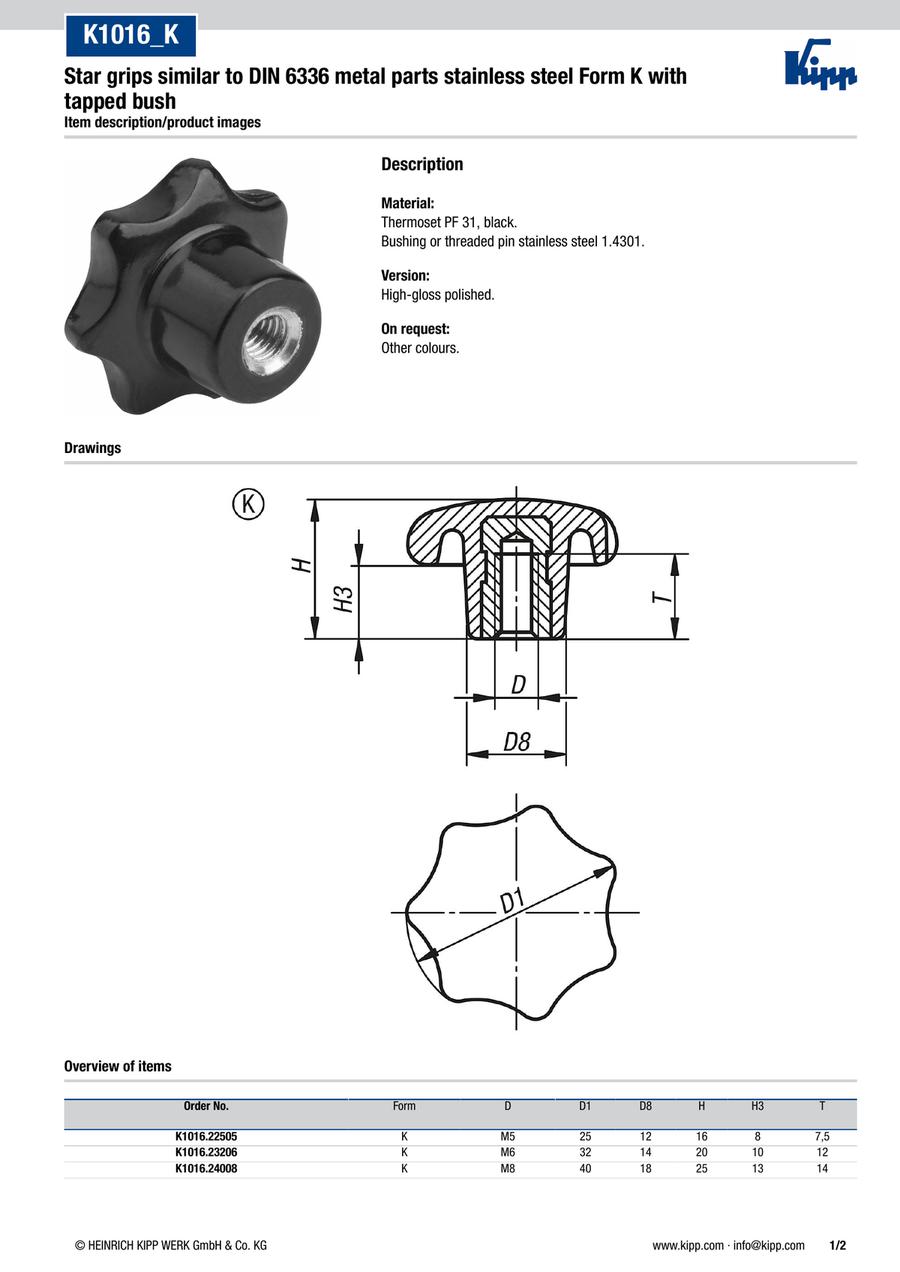

Star grips similar to DIN 6336 metal parts stainless steel Form K with tapped bush (K1016)
· Application fields: machine, plant and fixture construction, toolmaking
· For manually adjusting assemblies, machines and aggregates
· Form K: tapped bush, stainless steel
· Different thread sizes
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.
Part Number
|
|---|
| K1016.22505 |
| K1016.23206 |
| K1016.24008 |
| K1016.25010 |
| K1016.26312 |
| K1016.28016 |
| Part Number |
Standard Unit Price
| Minimum order quantity | Volume Discount | Thread | Outside diameter (φ) | D8 (mm) | H=Height (mm) | H3 | T=thread depth (mm) | T6 min. (mm) | |
|---|---|---|---|---|---|---|---|---|---|---|---|
2.65 € | 1 | 4 Days | M5 | 25 | 12 | 16 | 8 | 7.5 | 7.5 | ||
2.67 € | 1 | 4 Days | M6 | 32 | 14 | 20 | 10 | 12 | 9 | ||
3.12 € | 1 | 4 Days | M8 | 40 | 18 | 25 | 13 | 14 | 12 | ||
3.93 € | 1 | 4 Days | M10 | 50 | 22 | 32 | 17 | 18 | 15 | ||
5.62 € | 1 | 4 Days | M12 | 63 | 26 | 40 | 21 | 22 | 18 | ||
10.36 € | 1 | 4 Days | M16 | 80 | 35 | 50 | 25 | 24 | 24 |
Loading...
Basic information
| Main Body Material | Other | Main material(mm) | Duroplast | Surface finish body(mm) | high-gloss polished |
|---|---|---|---|---|---|
| Component material(mm) | Stainless steel | Main colour(mm) | black | Form(mm) | K |
| Form-Type(mm) | with tapped bush |
