Configure
- Steel code
- 1.4305
- Component material
- Component colour
- Surface finish component
- A=Handle length(mm)
- 28
- 40
- B=Width(mm)
- 13
- 16
- D2(mm)
- 14.6
- H=Height(mm)
- 15
- 21
- T=thread depth(mm)
- 6
- 7.5
- 9
- 12
- H1(mm)
- 19
- H2(mm)
- 4
- Weight
- 0.0150
- 0.0170
- Type
- CAD
- 2D
- 3D
- Est. shipping days
- All
- Within 4 working days

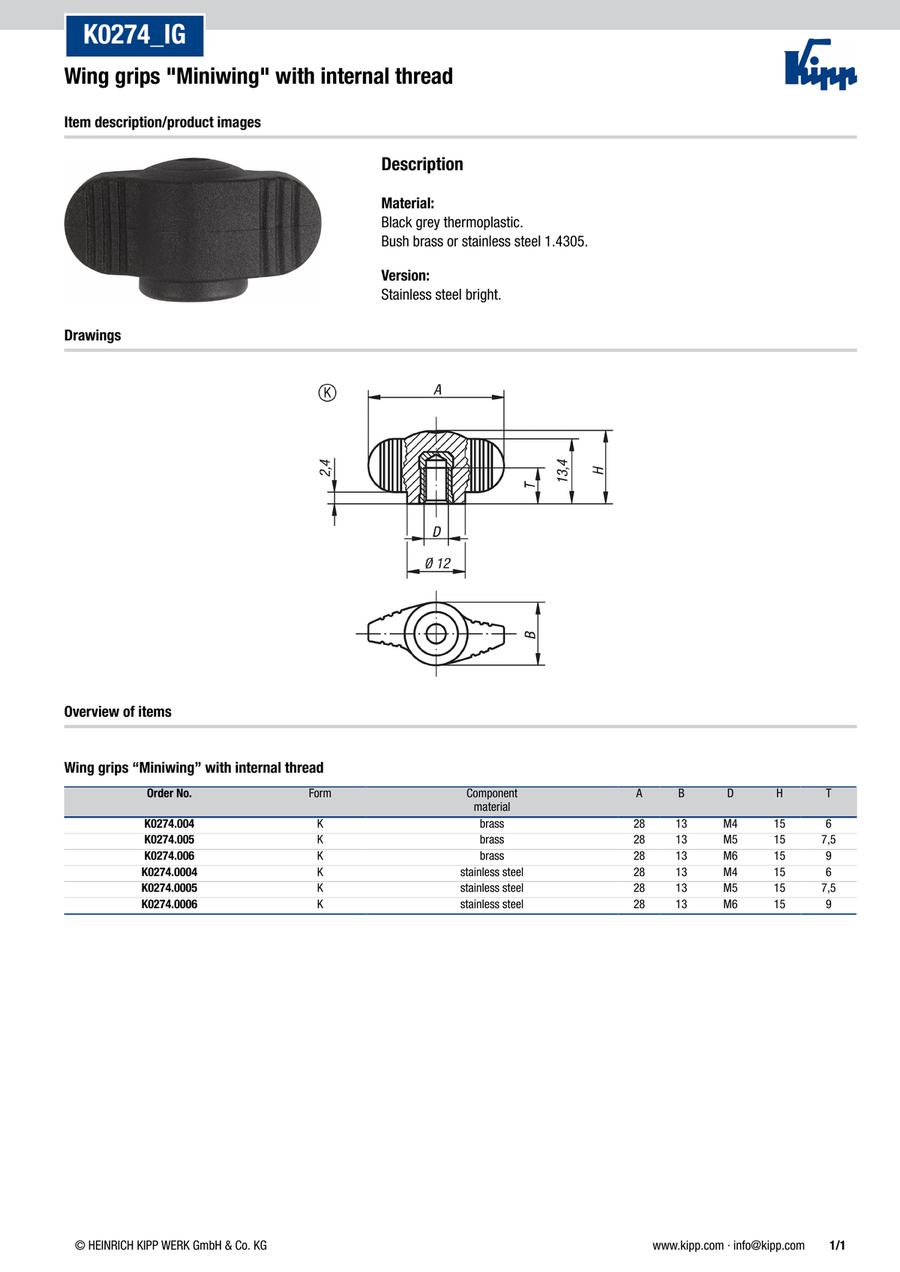

Wing grips "Miniwing" with internal thread (K0274)
Part number:
possible part numbers found.Part number list
Number of items
| Part number |
|---|
Unit price (excluding VAT)(Unit price including VAT) | Standard shipping days |
|---|
1.05 € ( 1.25 € ) | 4 working days |
1.05 € ( 1.25 € ) | 4 working days |
1.05 € ( 1.25 € ) | 4 working days |
0.62 € ( 0.74 € ) | 4 working days |
0.62 € ( 0.74 € ) | 4 working days |
0.62 € ( 0.74 € ) | 4 working days |
1.63 € ( 1.94 € ) | 4 working days |
2.04 € ( 2.43 € ) | 4 working days |
1.41 € ( 1.68 € ) | 4 working days |
1.77 € ( 2.11 € ) | 4 working days |
More Information
Basic information
· Can be used as a clamping, retaining and fastening element
· Application fields: machine, plant and fixture construction, toolmaking
· For manually adjusting assemblies, machines and aggregates
· The NOVO grip product range represents an attractive design and an easy-to-grip form
· Finger-specific ergonomics
