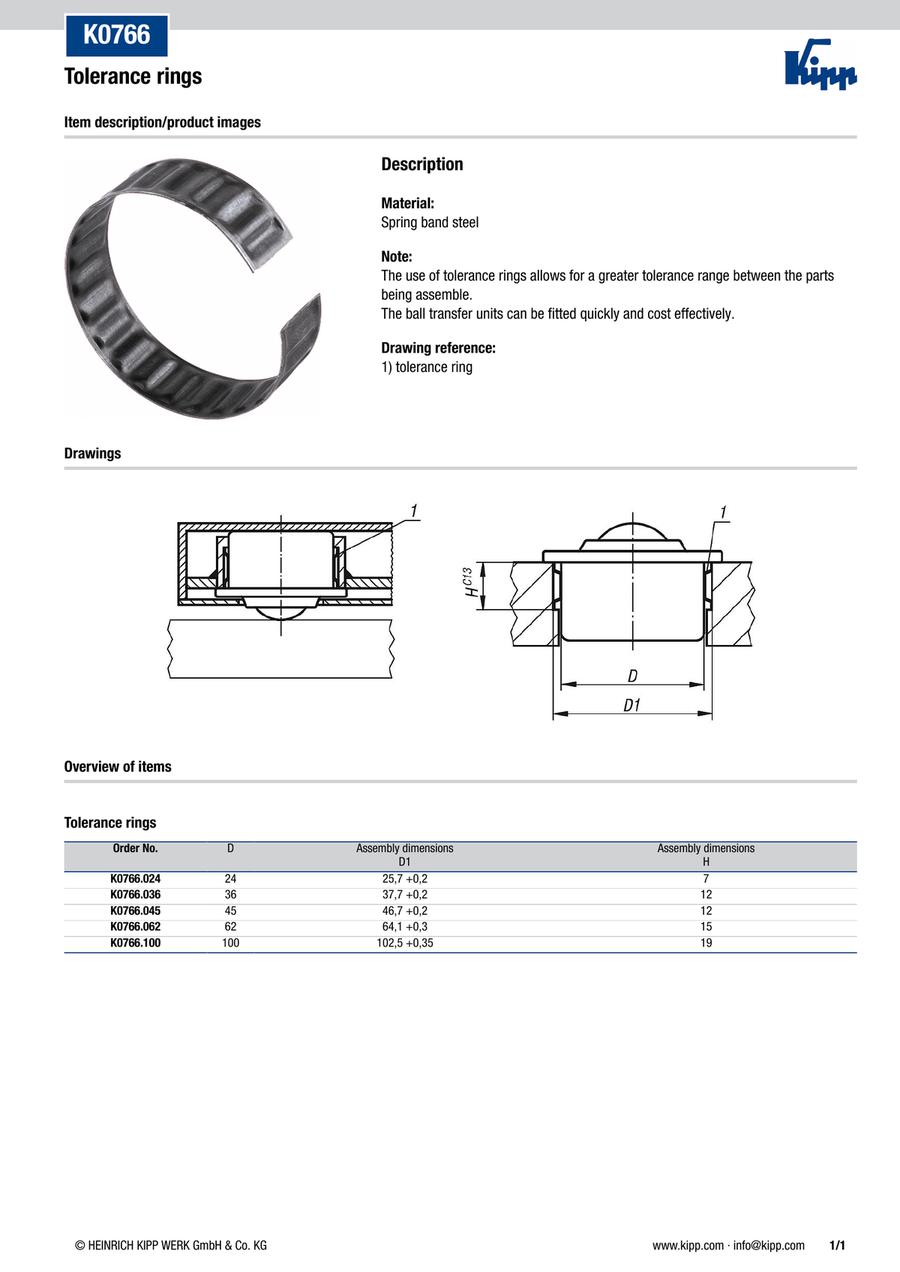

Tolerance rings (K0766)
· Ball transfer units are mounted quickly and economically
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.
Part Number
|
|---|
| K0766.024 |
| K0766.036 |
| K0766.045 |
| K0766.062 |
| K0766.100 |
| Part Number |
Standard Unit Price
| Minimum order quantity | Volume Discount | Assembly dimensions D1 (mm) | Assembly dimensions H (mm) | D=diameter (mm) | Tolerance ring suitable for ball rollers | |
|---|---|---|---|---|---|---|---|---|
1.14 € | 1 | 4 Days | 25.7 +0.2 | 7 | 24 | 95150-.15 / 95152-.15 | ||
1.68 € | 1 | 4 Days | 37.7 +0.2 | 12 | 36 | 95150-.22 / 95152-.22 | ||
1.96 € | 1 | 4 Days | 46.7 +0.2 | 12 | 45 | 95150-.30 / 95152-.30 | ||
2.31 € | 1 | 4 Days | 64.1 +0.3 | 15 | 62 | 95150-.45 | ||
6.27 € | 1 | 4 Days | 102.5 +0.35 | 19 | 100 | 95156-.60 |
Loading...
Basic information
| Main material | Leaf spring steel |
|---|
Configure
Basic Attributes
-
Assembly dimensions D1(mm)
-
Assembly dimensions H(mm)
- 7
- 12
- 15
- 19
-
D=diameter(mm)
- 24
- 36
- 45
- 62
- 100
-
Tolerance ring suitable for ball rollers
- 95150-.45
- 95150-.30 / 95152-.30
- 95150-.22 / 95152-.22
- 95150-.15 / 95152-.15
- 95156-.60
-
Type
-
Filter by CAD data type
- 2D
- 3D
Filter by standard shipping days
-
- All
- 4 Days or Less
Optional Attributes
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
