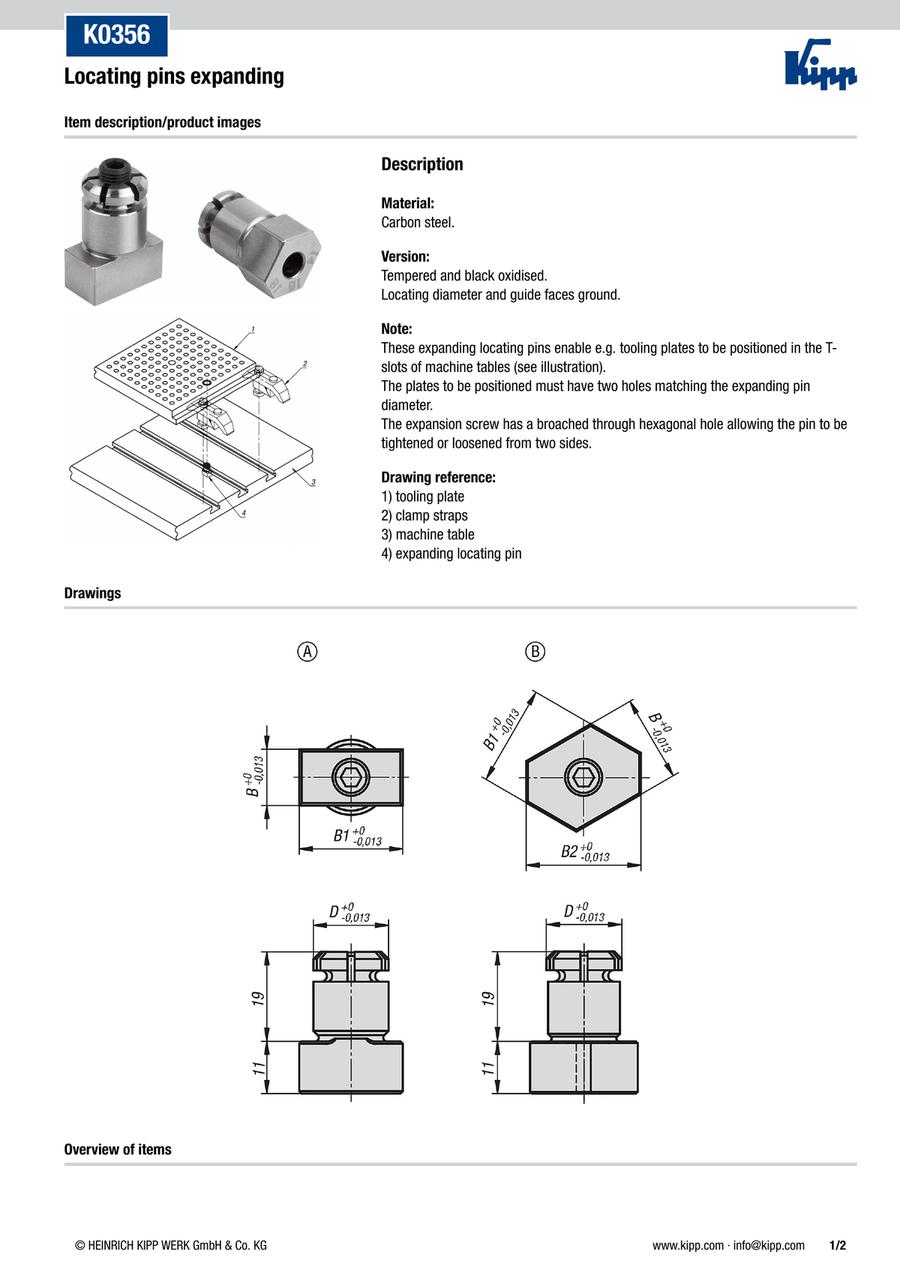

Locating pins expanding (K0356)
· Can be operated from two sides
· Simple assembly
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.
Part Number
|
|---|
| K0356.1610 |
| K0356.1612 |
| K0356.1614 |
| K0356.2024 |
| Part Number |
Standard Unit Price
| Minimum order quantity | Volume Discount | Form | B (mm) | B1=Pin diameter (mm) | B2 (mm) | D (mm) | Recommended Ø (mm) | |
|---|---|---|---|---|---|---|---|---|---|---|
30.56 € | 1 | 4 Days | A | 10 | 20 | - | 16 | 16.01 ±0.01 | ||
27.85 € | 1 | 4 Days | A | 12 | 22 | - | 16 | 16.01 ±0.01 | ||
27.85 € | 1 | 4 Days | B | 14 | 16 | 18 | 16 | 16.01 ±0.01 | ||
38.77 € | 1 | 4 Days | B | 24 | 28 | 32 | 20 | 20.01 ±0.01 |
Loading...
Basic information
| Main material | High carbon steel | Material (mount surface / support surface) | Steel |
|---|
Configure
Basic Attributes
-
Form
-
B(mm)
-
B1=Pin diameter(mm)
-
B2(mm)
- 18
- 32
-
D(mm)
-
Recommended Ø(mm)
- 16.01 ±0.01
- 20.01 ±0.01
-
Type
-
Filter by CAD data type
- 2D
- 3D
Filter by standard shipping days
-
- All
- 4 Days or Less
Optional Attributes
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
