    KIPP

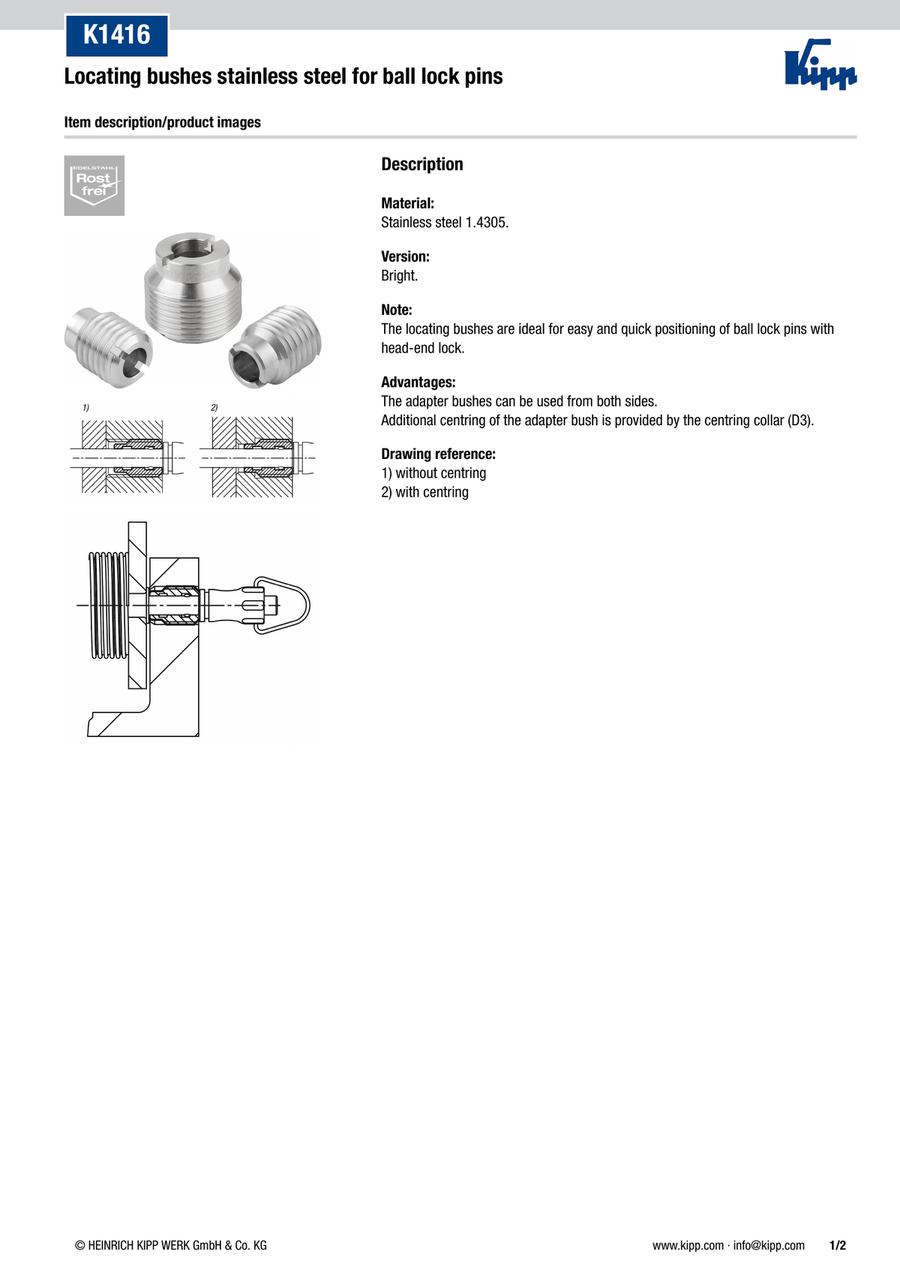

    Locating bushes stainless steel for ball lock pins (K1416)

    Locating bushes stainless steel for ball lock pins (K1416)

    Part number:

    Still undefined. 6 possible part numbers found.
    Quantity:

    Part number list

    Number of items
  • 1
    • Part number
    K1416.10512
    K1416.10616
    K1416.10816
    K1416.11024
    K1416.11230
    K1416.11630

    Inner Diameter

    (mm)

    D1=Thread

    D2

    (mm)

    D3

    (mm)

    L

    (mm)

    L3

    (mm)

    L4

    (mm)

    L5

    (mm)

    N

    (mm)

    T

    (mm)

    		Minimum order quantity
    5
    M12
    6
    9
    17
    4
    3
    6
    2
    2.5
    1 pieces
    6
    M16
    7.5
    12
    18
    5
    3
    7
    2
    2.5
    1 pieces
    8
    M16
    10
    12
    20.5
    5
    3.5
    8.5
    2
    2.5
    1 pieces
    10
    M24x1,5
    13
    18
    21.5
    5
    3.5
    9
    2.5
    2.5
    1 pieces
    12
    M30x1,5
    15
    24
    22.5
    5
    3.5
    9.5
    2.5
    2.5
    1 pieces
    16
    M30x1,5
    20
    24
    27
    5
    4.1
    11.1
    2.5
    3
    1 pieces
    Unit price (excluding VAT)(Unit price including VAT)
    Standard shipping days
    6.49 €
    ( 7.72 € )
    4 working days
    7.00 €
    ( 8.33 € )
    4 working days
    7.37 €
    ( 8.77 € )
    4 working days
    8.97 €
    ( 10.67 € )
    4 working days
    10.78 €
    ( 12.83 € )
    4 working days
    12.12 €
    ( 14.42 € )
    4 working days
  • 1

    • More Information

    Basic information

    · Easy and quick positioning of ball lock pins with head-end lock

    · Adapter bushes can be used from both sides

    · Additional centring
