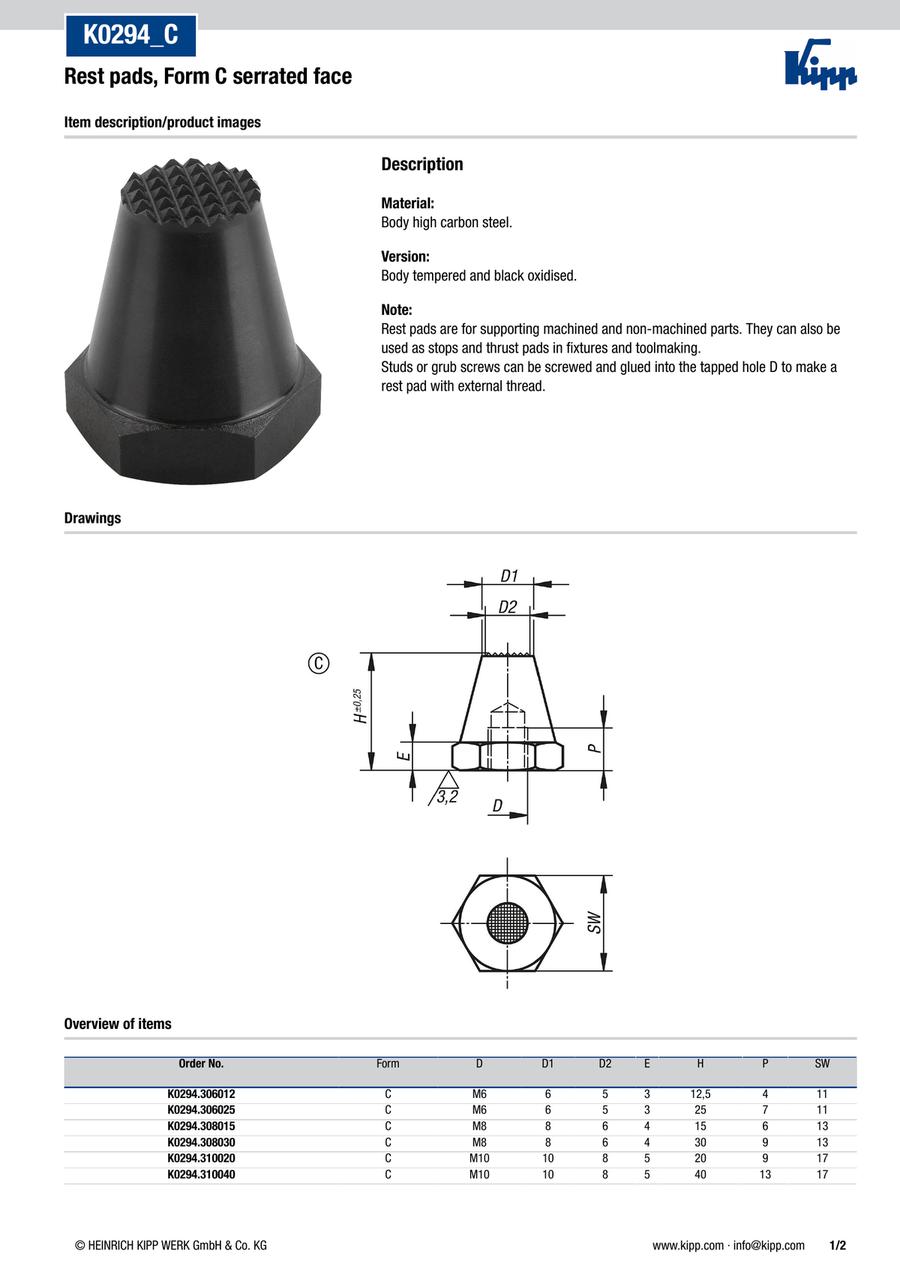

Rest pads, Form C serrated face (K0294)
· Application sectors: machine and fixture construction, toolmaking
· For supporting workpieces and fixtures
· Simple assembly
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.
Part Number
|
|---|
| K0294.306012 |
| K0294.306025 |
| K0294.308015 |
| K0294.308030 |
| K0294.310020 |
| K0294.310040 |
| K0294.312025 |
| K0294.312050 |
| K0294.316030 |
| K0294.316060 |
| Part Number |
Standard Unit Price
| Minimum order quantity | Volume Discount | Tip O.D. (mm) | D=thread (mm) | D2 (mm) | E (mm) | H=Height (mm) | P (mm) | SW=key width (mm) | |
|---|---|---|---|---|---|---|---|---|---|---|---|
15.01 € | 1 | 4 Days | 6 | M6 | 5 | 3 | 12.5 | 4 | 11 | ||
15.62 € | 1 | 4 Days | 6 | M6 | 5 | 3 | 25 | 7 | 11 | ||
15.57 € | 1 | 4 Days | 8 | M8 | 6 | 4 | 15 | 6 | 13 | ||
16.41 € | 1 | 4 Days | 8 | M8 | 6 | 4 | 30 | 9 | 13 | ||
18.25 € | 1 | 4 Days | 10 | M10 | 8 | 5 | 20 | 9 | 17 | ||
19.01 € | 1 | 4 Days | 10 | M10 | 8 | 5 | 40 | 13 | 17 | ||
17.56 € | 1 | 4 Days | 12 | M12 | 9.5 | 6 | 25 | 11 | 19 | ||
19.17 € | 1 | 4 Days | 12 | M12 | 9.5 | 6 | 50 | 16 | 19 | ||
38.79 € | 1 | 4 Days | 16 | M16 | 13 | 8 | 30 | 12 | 24 | ||
45.31 € | 1 | 4 Days | 16 | M16 | 13 | 8 | 60 | 20 | 24 |
Loading...
Basic information
| Main material | High carbon steel | Surface finish body | tempered, black oxidised | Material (mount surface / support surface) | Steel |
|---|---|---|---|---|---|
| Form | C |
Configure
Basic Attributes
-
Tip O.D.(mm)
-
D=thread(mm)
-
D2(mm)
-
E(mm)
-
H=Height(mm)
-
P(mm)
-
SW=key width(mm)
-
Type
-
Filter by CAD data type
- 2D
- 3D
Filter by standard shipping days
-
- All
- 4 Days or Less
Optional Attributes
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
