Configure
- Hand force FH(N)
- 160
- 200
- 250
- 280
- Component colour
- Retaining force F1(N)
- 1350
- 2000
- 2200
- 2400
- Retaining force F2(N)
- 1900
- 2800
- 4500
- 5500
- Clamping force F3(N)
- 720
- 830
- 1000
- 1200
- Clamping force F4(N)
- 1200
- 1400
- 2800
- Hole arrangement
- 3
- 4
- A(mm)
- 26
- 41.5
- 44
- A1(mm)
- 39
- 44
- 59
- 65
- A2(mm)
- 6.5
- 8.5
- 9
- 10
- A3(mm)
- 40
- A4(mm)
- 1
- B(mm)
- 28
- 31
- 42
- 43
- B1(mm)
- 39
- 45
- 59
- 67
- B2(mm)
- 17.5
- 21
- 26
- 28
- B3(mm)
- 12.5
- 16
- 19
- 21
- B4(mm)
- 23
- 24
- 39
- 40
- B5(mm)
- 2.5
- 3.5
- B6(mm)
- 51.1
- 53.4
- 56.5
- C(mm)
- 25.4
- 32.2
- 40
- 52.3
- C2(mm)
- 13.5
- D(mm)
- 5.5
- 6.2
- 8.5
- 8.8
- H(mm)
- 63.7
- 73.9
- 94.8
- 104.8
- H1(mm)
- 59.6
- 70.1
- 88
- 101.6
- L(mm)
- 193.3
- 230.4
- 286
- 321.3
- L1(mm)
- 60.5
- 74.9
- 103.9
- 122
- Type
- CAD
- 2D
- 3D
- Est. shipping days
- All
- Within 4 working days

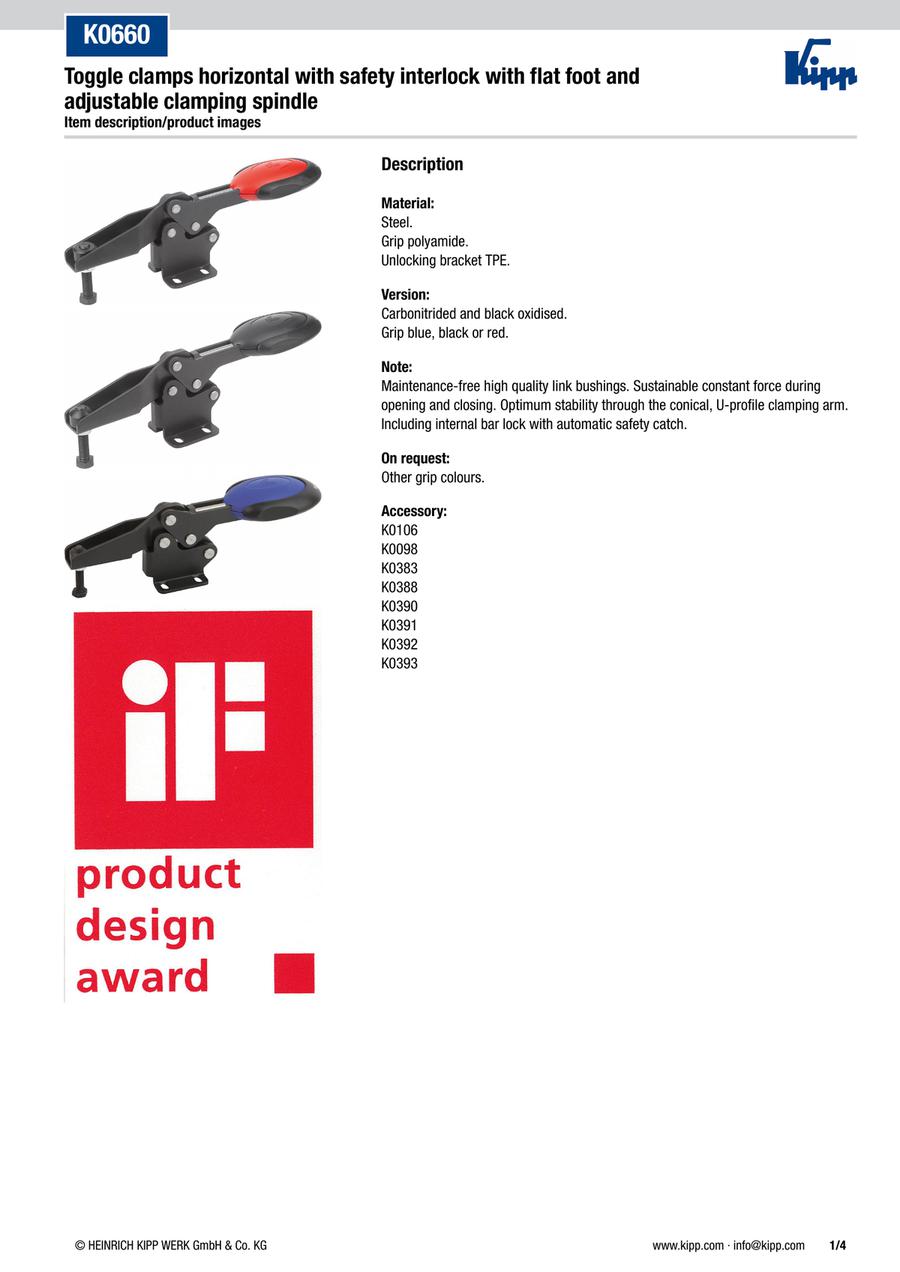

Toggle clamps horizontal with safety interlock with flat foot and adjustable clamping spindle (K0660)
Part number:
possible part numbers found.Part number list
Number of items
| Part number |
|---|
Unit price (excluding VAT)(Unit price including VAT) | Standard shipping days |
|---|
41.69 € ( 49.61 € ) | 4 working days |
41.69 € ( 49.61 € ) | 4 working days |
41.69 € ( 49.61 € ) | 4 working days |
49.32 € ( 58.69 € ) | 4 working days |
49.32 € ( 58.69 € ) | 4 working days |
49.32 € ( 58.69 € ) | 4 working days |
66.18 € ( 78.75 € ) | 4 working days |
66.18 € ( 78.75 € ) | 4 working days |
66.18 € ( 78.75 € ) | 4 working days |
69.01 € ( 82.12 € ) | 4 working days |
69.01 € ( 82.12 € ) | 4 working days |
69.01 € ( 82.12 € ) | 4 working days |
More Information
Basic information
· Toggle clamps and power clamps are used in assembly and workholding fixtures
· Application sectors: machine construction, welding technology, metal processing, woodworking, plastics industry
· Optimum stability through the conical, U-profile clamping arm
· Slim design – ideal for tight spaces
· KIPPlock: internal latch mechanism with automatic lock
