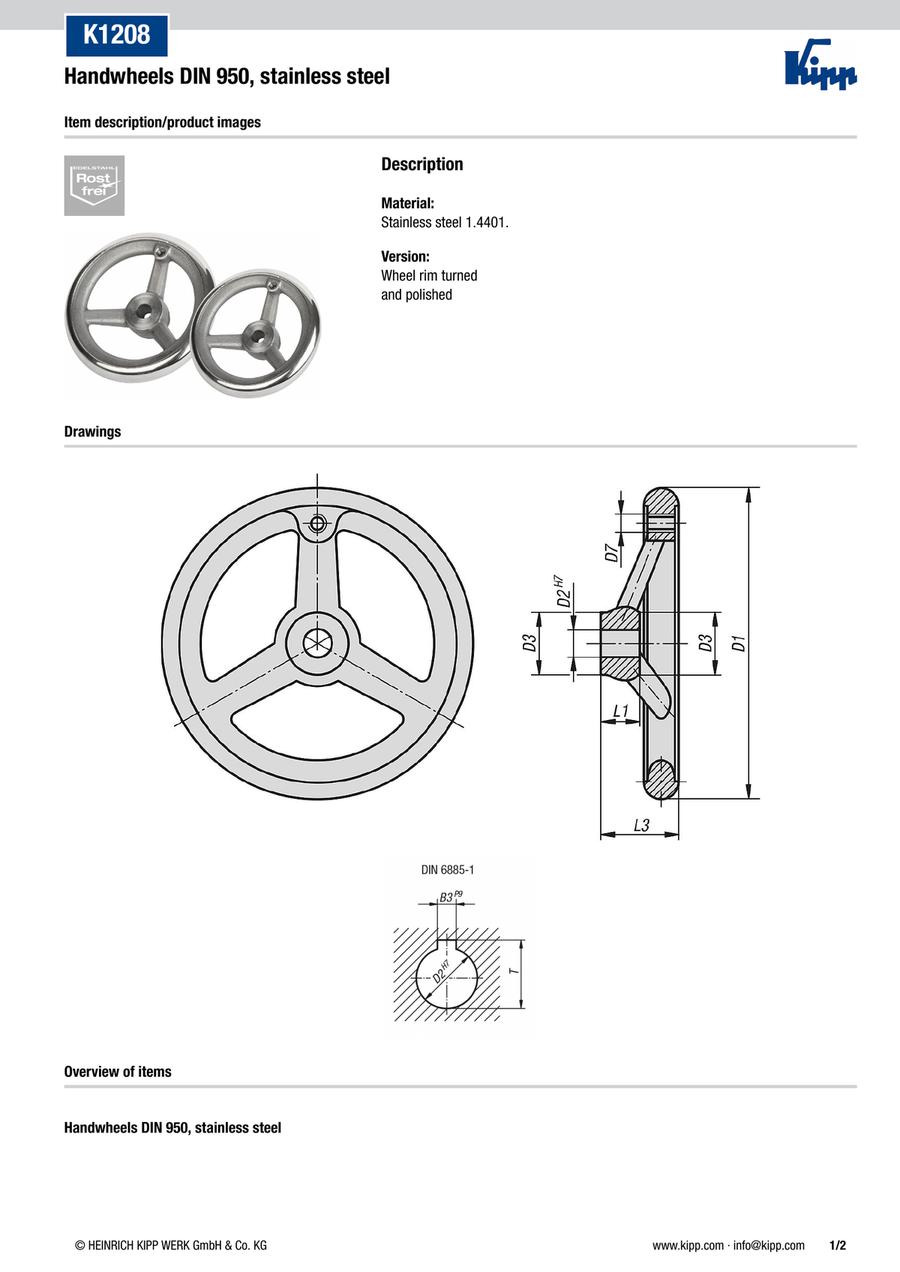

Handwheels DIN 950, stainless steel (K1208)
· Application sectors: machine, plant, armament and instrument construction, measuring equipment
· For opening, closing and operating valves in fittings, machine tools
· Material: stainless steel 1.4401
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.
Part Number
|
|---|
| K1208.0100X10 |
| K1208.0125X12 |
| K1208.0160X16 |
| K1208.0200X18 |
| K1208.1100X10 |
| K1208.1125X12 |
| K1208.1160X16 |
| K1208.1200X18 |
| Part Number |
Standard Unit Price
| Minimum order quantity | Volume Discount | Outside diameter (Ø) | Height (mm) | Version 1 | B3 (mm) | D2=Fastening hole (mm) | D3 (mm) | D7=Thread | L1 (mm) | T (mm) | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
44.09 € | 1 | 4 Days | 100 | 33 | reamed hole | - | 10H7 | 26 | M6 | 17 | - | ||
63.25 € | 1 | 4 Days | 125 | 36 | reamed hole | - | 12H7 | 28 | M8 | 18 | - | ||
93.25 € | 1 | 4 Days | 160 | 40 | reamed hole | - | 16H7 | 32 | M10 | 20 | - | ||
161.45 € | 1 | 4 Days | 200 | 45 | reamed hole | - | 18H7 | 38 | M10 | 24 | - | ||
46.33 € | 1 | 4 Days | 100 | 33 | reamed hole with slot | 3 | 10H7 | 26 | M6 | 17 | 11.4 | ||
65.48 € | 1 | 4 Days | 125 | 36 | reamed hole with slot | 4 | 12H7 | 28 | M8 | 18 | 13.8 | ||
95.47 € | 1 | 4 Days | 160 | 40 | reamed hole with slot | 5 | 16H7 | 32 | M10 | 20 | 18.3 | ||
163.69 € | 1 | 4 Days | 200 | 45 | reamed hole with slot | 6 | 18H7 | 38 | M10 | 24 | 20.8 |
Loading...
Basic information
| Handle, Material | Stainless Steel | Steel code | 1.4401 | Main colour | polished |
|---|---|---|---|---|---|
| Number of spokes | 3 |
Configure
Basic Attributes
-
Outside diameter(Ø)
-
Height(mm)
-
Version 1
-
B3(mm)
- 3
- 4
- 5
- 6
-
D2=Fastening hole(mm)
-
D3(mm)
-
D7=Thread
-
L1(mm)
-
T(mm)
-
Type
-
Filter by CAD data type
- 2D
- 3D
Filter by standard shipping days
-
- All
- 4 Days or Less
Optional Attributes
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
