KIPP

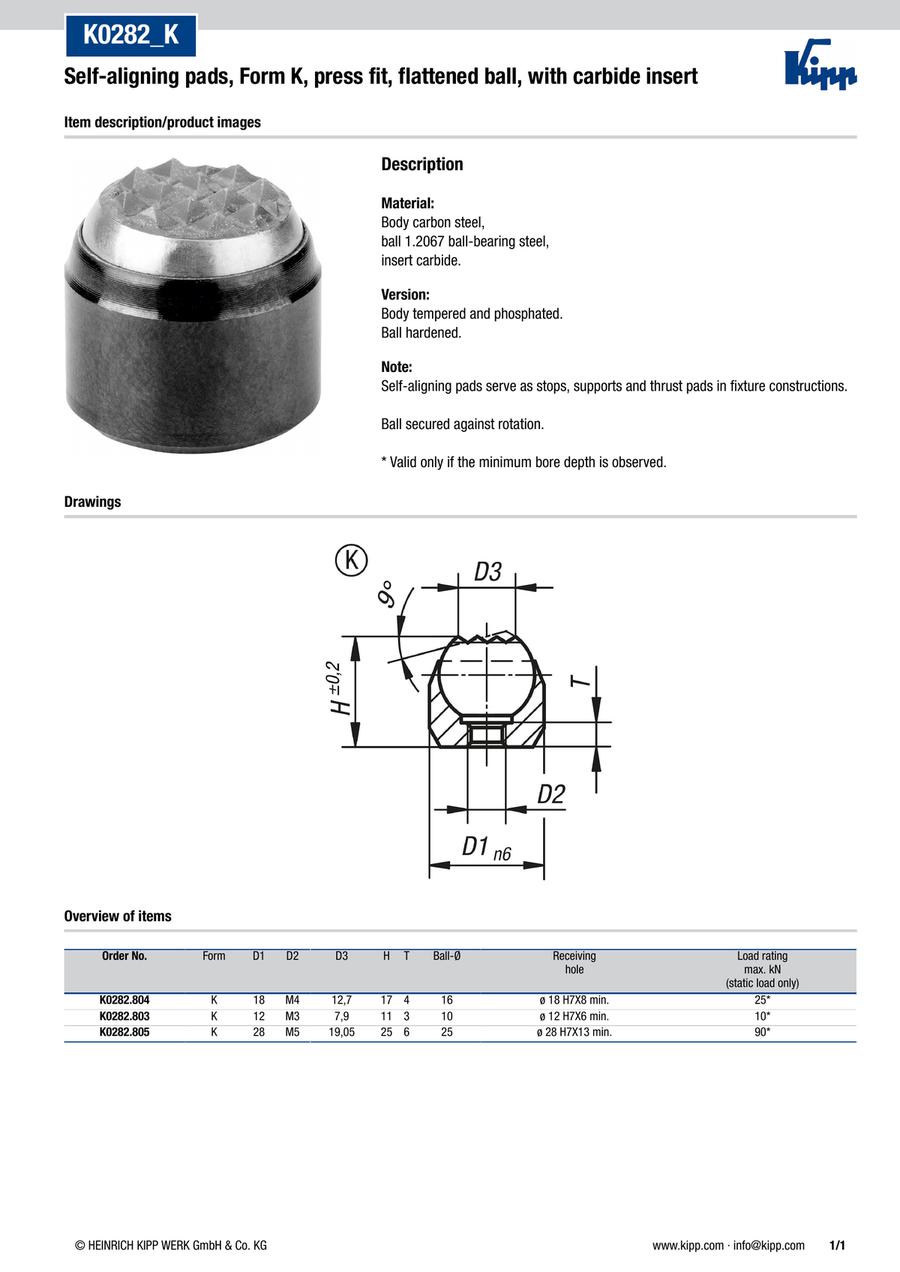

Self-aligning pads, Form K, press fit, flattened ball, with carbide insert (K0282)

Self-aligning pads, Form K, press fit, flattened ball, with carbide insert (K0282)

Part number:

Still undefined. 3 possible part numbers found.
Quantity:

Part number list

Number of items
  • 1
    • Part number
    K0282.803
    K0282.804
    K0282.805

    D1=Outside diameter

    (mm)

    D2=Thread

    D3

    (mm)

    H=Height

    (mm)

    T=thread depth

    (mm)

    Ball Ø

    (mm)

    Receiving hole

    (mm)

    Load rating max. (static load only)

    (kN)

    		Minimum order quantity
    12
    M3
    7.9
    11
    3
    10
    ø 12 H7X6 min.
    10*
    1 pieces
    18
    M4
    12.7
    17
    4
    16
    ø 18 H7X8 min.
    25*
    1 pieces
    28
    M5
    19.05
    25
    6
    25
    ø 28 H7X13 min.
    90*
    1 pieces
    Unit price (excluding VAT)(Unit price including VAT)
    Standard shipping days
    49.42 €
    ( 58.81 € )
    4 working days
    61.43 €
    ( 73.10 € )
    4 working days
    68.85 €
    ( 81.93 € )
    4 working days
  • 1

    • More Information

    Basic information

    · Serve as supports, stops and thrust pads

    · Application sectors: machine and fixture construction, assembly

    · Ball secured against rotation

    · ball point hardened
