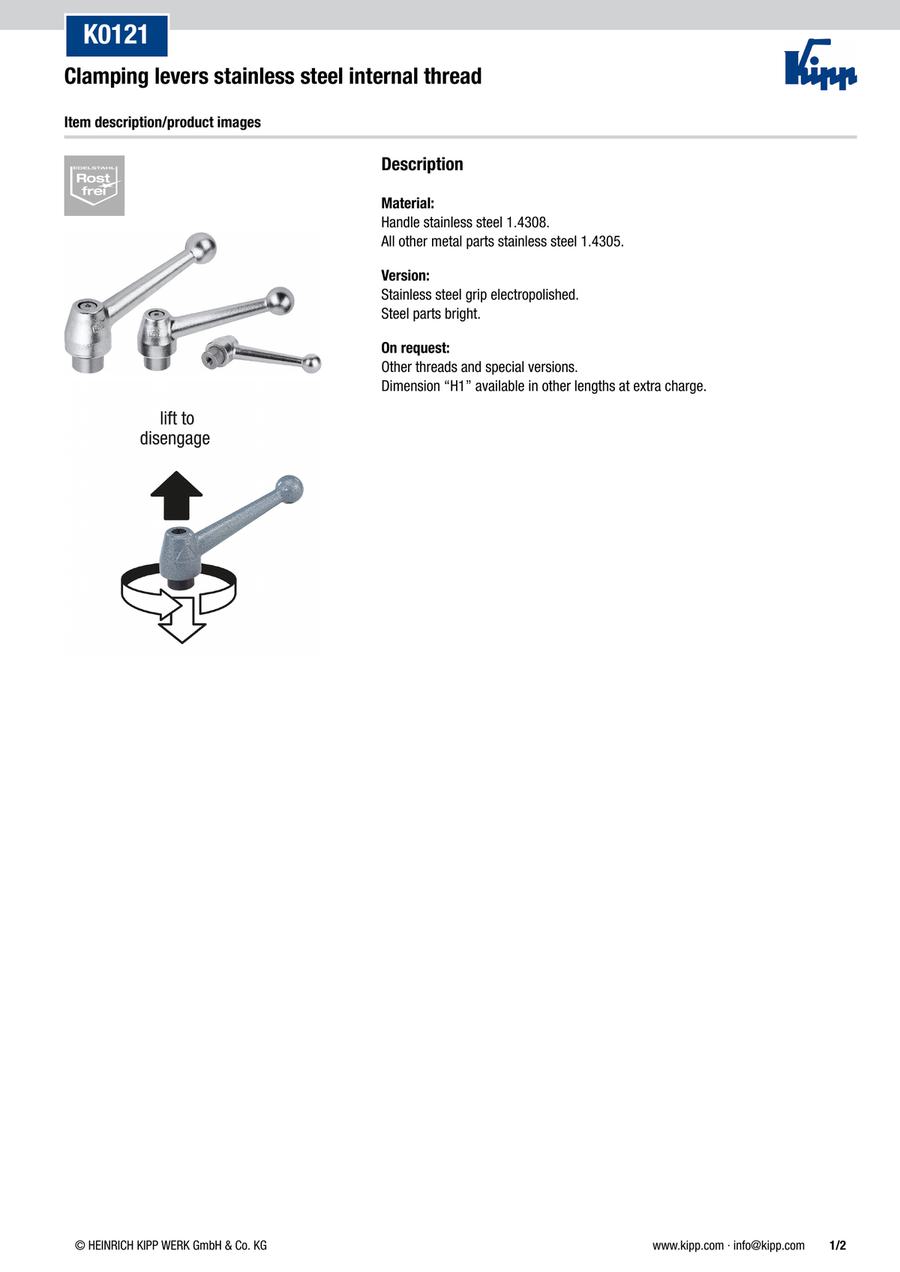

Clamping levers stainless steel internal thread (K0121)
· The KIPP clamping lever stands for reliability, stability and versatility
· Makes it easier to clamp individual components and complete machine parts
· Application fields: machine construction, rehabilitation and medical technology, food industry, pharmaceutical industry, chemical industry, outdoors
· Material: stainless steel, electropolished, corrosion resistant
· Different thread sizes and handle lengths
· Makes it easier to clamp individual components and complete machine parts
· Application fields: machine construction, rehabilitation and medical technology, food industry, pharmaceutical industry, chemical industry, outdoors
· Material: stainless steel, electropolished, corrosion resistant
· Different thread sizes and handle lengths
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.
Part Number
|
|---|
| K0121.1108 |
| K0121.1110 |
| K0121.1112 |
| Part Number |
Standard Unit Price
| Minimum order quantity | Volume Discount | X=thread | |
|---|---|---|---|---|---|
36.49 € | 1 | 4 Days | M8 | ||
36.49 € | 1 | 4 Days | M10 | ||
36.49 € | 1 | 4 Days | M12 |
Loading...
Basic information
| A=Handle length(mm) | 83 | Main Body Material | Stainless Steel | Main colour | electropolished |
|---|---|---|---|---|---|
| Component material | Stainless steel | Size | 1 | A=Handle length(mm) | 83 |
| A1(mm) | 107 | D(mm) | 19 | D1(mm) | 28 |
| D2(mm) | 20 | H(mm) | 40.5 | H1(mm) | 12 |
| H3=handle height(mm) | 65 | H4(mm) | 68.5 | T=thread depth(mm) | 17 |
| No. of teeth | 24 |
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
