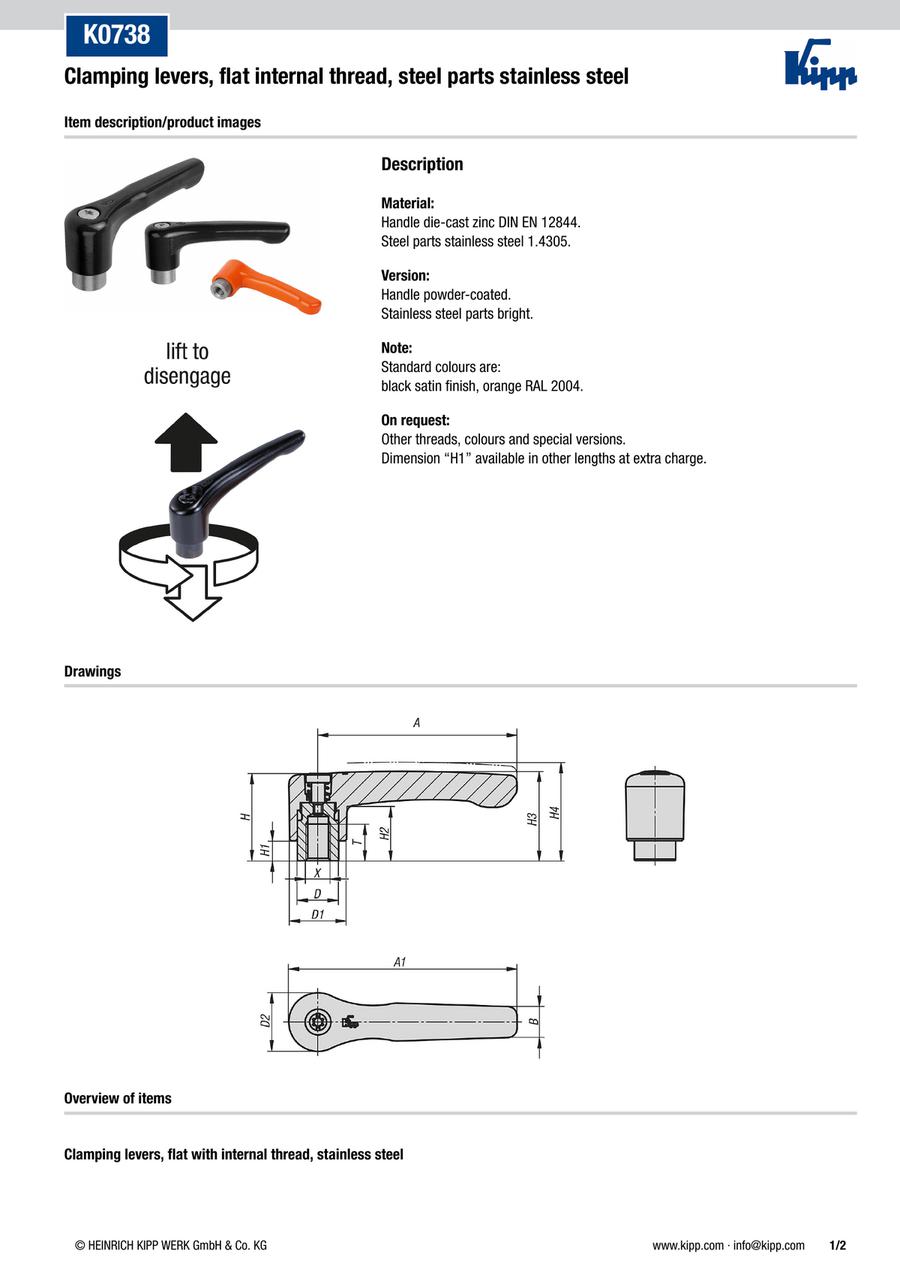

Clamping levers, flat internal thread, steel parts stainless steel (K0738)
· Makes it easier to clamp individual components and complete machine parts
· Application fields: machine construction, plant construction, rehabilitation and medical technology, furniture industry
· Flat handle for tight spots
· Flat design offers additional safety advantages
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.
Part Number
|
|---|
| K0738.2061 |
| K0738.2062 |
| K0738.2081 |
| K0738.2082 |
| K0738.3081 |
| K0738.3082 |
| K0738.3101 |
| K0738.3102 |
| Part Number |
Standard Unit Price
| Minimum order quantity | Volume Discount | Rotating Radius R (mm) | Main colour | Size | X=thread | A=Handle length (mm) | A1=Handle length (mm) | B (mm) | D (mm) | D1 (mm) | D2 (mm) | H (mm) | H1 (mm) | H2 (mm) | H3=handle height (mm) | H4 (mm) | T=thread depth (mm) | No. of teeth | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
9.74 € | 1 | 4 Days | 65 | black | 2 | M6 | 65 | 74.5 | 10.1 | 13.5 | 18.5 | 19.1 | 28.5 | 6.5 | 17.8 | 29.2 | 32.2 | 12 | 20 | ||
9.74 € | 1 | 4 Days | 65 | orange RAL 2004 | 2 | M6 | 65 | 74.5 | 10.1 | 13.5 | 18.5 | 19.1 | 28.5 | 6.5 | 17.8 | 29.2 | 32.2 | 12 | 20 | ||
9.74 € | 1 | 4 Days | 65 | black | 2 | M8 | 65 | 74.5 | 10.1 | 13.5 | 18.5 | 19.1 | 28.5 | 6.5 | 17.8 | 29.2 | 32.2 | 12 | 20 | ||
9.74 € | 1 | 4 Days | 65 | orange RAL 2004 | 2 | M8 | 65 | 74.5 | 10.1 | 13.5 | 18.5 | 19.1 | 28.5 | 6.5 | 17.8 | 29.2 | 32.2 | 12 | 20 | ||
11.05 € | 1 | 4 Days | 80 | black | 3 | M8 | 80 | 91 | 11.7 | 16 | 21.2 | 22 | 37 | 10 | 23.8 | 38 | 42 | 14 | 22 | ||
11.05 € | 1 | 4 Days | 80 | orange RAL 2004 | 3 | M8 | 80 | 91 | 11.7 | 16 | 21.2 | 22 | 37 | 10 | 23.8 | 38 | 42 | 14 | 22 | ||
11.05 € | 1 | 4 Days | 80 | black | 3 | M10 | 80 | 91 | 11.7 | 16 | 21.2 | 22 | 37 | 10 | 23.8 | 38 | 42 | 14 | 22 | ||
11.05 € | 1 | 4 Days | 80 | orange RAL 2004 | 3 | M10 | 80 | 91 | 11.7 | 16 | 21.2 | 22 | 37 | 10 | 23.8 | 38 | 42 | 14 | 22 |
Loading...
Basic information
| Main Body Material | Other | Main material | Zinc | Surface finish body | plastic-coated |
|---|---|---|---|---|---|
| Component material | Stainless steel | Surface finish component | bright |
Configure
Basic Attributes
-
Rotating Radius R(mm)
-
Main colour
-
Size
-
X=thread
-
A=Handle length(mm)
-
A1=Handle length(mm)
-
B(mm)
-
D(mm)
-
D1(mm)
-
D2(mm)
-
H(mm)
-
H1(mm)
-
H2(mm)
-
H3=handle height(mm)
-
H4(mm)
-
T=thread depth(mm)
-
No. of teeth
- 20
- 22
-
Type
-
Filter by CAD data type
- 2D
- 3D
Filter by standard shipping days
-
- All
- 4 Days or Less
Optional Attributes
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
