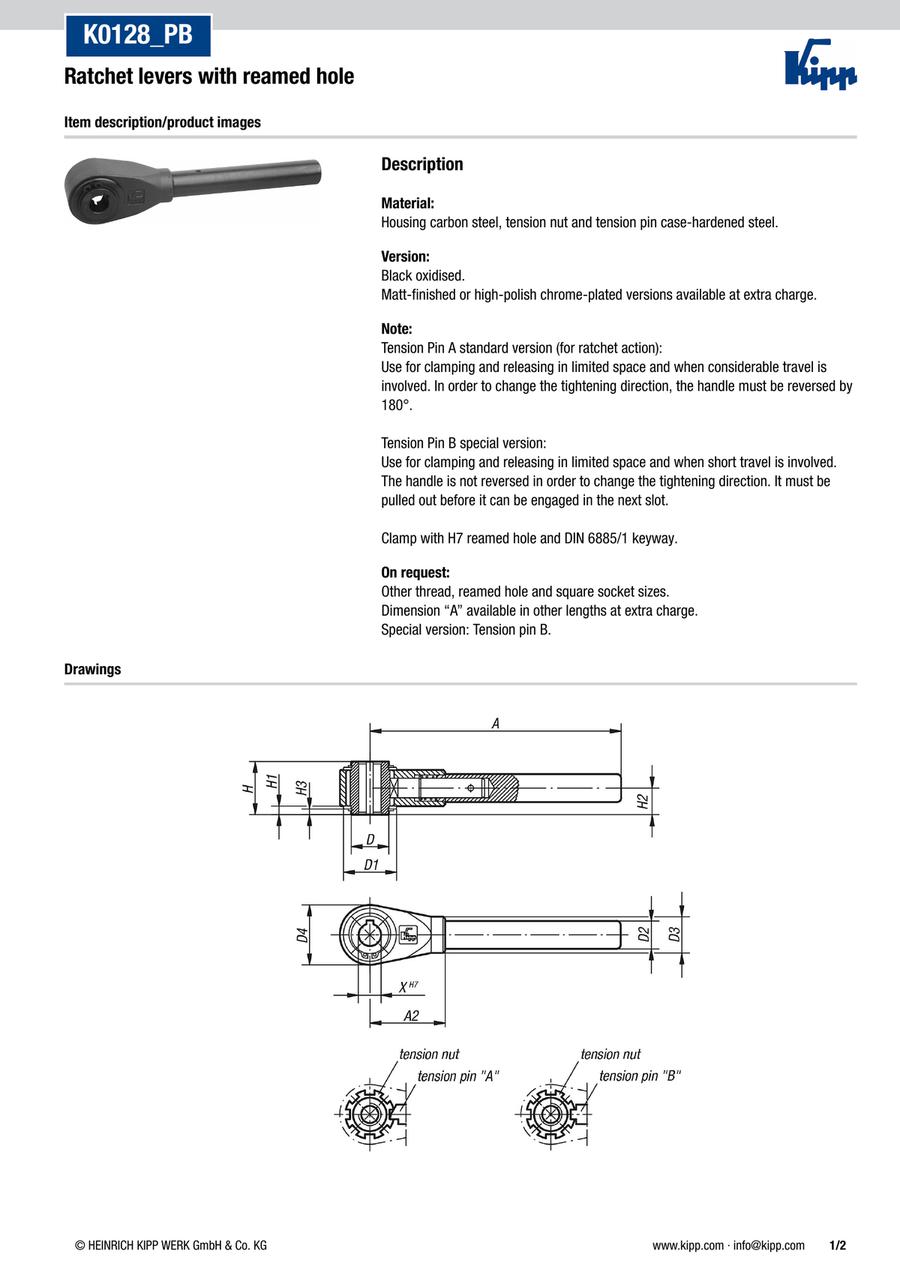

Ratchet levers with reamed hole (K0128)
· Application fields: machine and plant construction, welding technology
· Available in standard version (clamping pin A) and special version (clamping pin B)
· Version: reamed hole
· Various sizes
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.
Part Number
|
|---|
| K0128.412 |
| K0128.414 |
| K0128.415 |
| K0128.416 |
| K0128.418 |
| K0128.420 |
| K0128.422 |
| K0128.425 |
| K0128.427 |
| K0128.430 |
| K0128.436 |
| Part Number |
Standard Unit Price
| Minimum order quantity | Volume Discount | A=Handle length (mm) | Size | X=bore (mm) | A=Handle length (mm) | A1 (mm) | A2 (mm) | D (mm) | D1 (mm) | D2 (mm) | D3 (mm) | D4 (mm) | H (mm) | H1 (mm) | H2 (mm) | H3 (mm) | No. of index slots | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
105.20 € | 1 | 4 Days | 150 | 1 | 12 | 150 | 168 | 48 | 22 | 33 | 17 | 22 | 36 | 31 | 4.5 | 15.5 | 3 | 7 | ||
125.51 € | 1 | 4 Days | 180 | 2 | 14 | 180 | 201.5 | 54 | 27 | 38 | 20 | 26 | 43 | 38 | 6 | 19 | 4 | 8 | ||
125.51 € | 1 | 4 Days | 180 | 2 | 15 | 180 | 201.5 | 54 | 27 | 38 | 20 | 26 | 43 | 38 | 6 | 19 | 4 | 8 | ||
125.51 € | 1 | 4 Days | 180 | 2 | 16 | 180 | 201.5 | 54 | 27 | 38 | 20 | 26 | 43 | 38 | 6 | 19 | 4 | 8 | ||
167.97 € | 1 | 4 Days | 230 | 3 | 18 | 230 | 255.5 | 70 | 35 | 45 | 24 | 30 | 51 | 42 | 6 | 21 | 4 | 8 | ||
167.97 € | 1 | 4 Days | 230 | 3 | 20 | 230 | 255.5 | 70 | 35 | 45 | 24 | 30 | 51 | 42 | 6 | 21 | 4 | 8 | ||
228.94 € | 1 | 4 Days | 300 | 4 | 22 | 300 | 330.5 | 80 | 42 | 56 | 28 | 35 | 61 | 47 | 6 | 23.5 | 4 | 9 | ||
228.94 € | 1 | 4 Days | 300 | 4 | 25 | 300 | 330.5 | 80 | 42 | 56 | 28 | 35 | 61 | 47 | 6 | 23.5 | 4 | 9 | ||
228.94 € | 1 | 4 Days | 300 | 4 | 27 | 300 | 330.5 | 80 | 42 | 56 | 28 | 35 | 61 | 47 | 6 | 23.5 | 4 | 9 | ||
434.96 € | 1 | 4 Days | 400 | 5 | 30 | 400 | 441 | 110 | 60 | 75 | 32 | 38 | 82 | 53 | 7.5 | 26.5 | 5 | 11 | ||
434.96 € | 1 | 4 Days | 400 | 5 | 36 | 400 | 441 | 110 | 60 | 75 | 32 | 38 | 82 | 53 | 7.5 | 26.5 | 5 | 11 |
Loading...
Basic information
| Main Body Material | Other | Main material | High carbon steel | Surface finish body | black oxidised |
|---|---|---|---|---|---|
| Component material | Steel | Form | 0° |
Configure
Basic Attributes
-
A=Handle length(mm)
-
Size
-
X=bore(mm)
- 12
- 14
- 15
- 16
- 18
- 20
- 22
- 25
- 27
- 30
- 36
-
A=Handle length(mm)
-
A1(mm)
-
A2(mm)
- 48
- 54
- 70
- 80
- 110
-
D(mm)
-
D1(mm)
-
D2(mm)
-
D3(mm)
-
D4(mm)
-
H(mm)
-
H1(mm)
-
H2(mm)
-
H3(mm)
-
No. of index slots
- 7
- 8
- 9
- 11
-
Type
-
Filter by CAD data type
- 2D
- 3D
Filter by standard shipping days
-
- All
- 4 Days or Less
Optional Attributes
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
