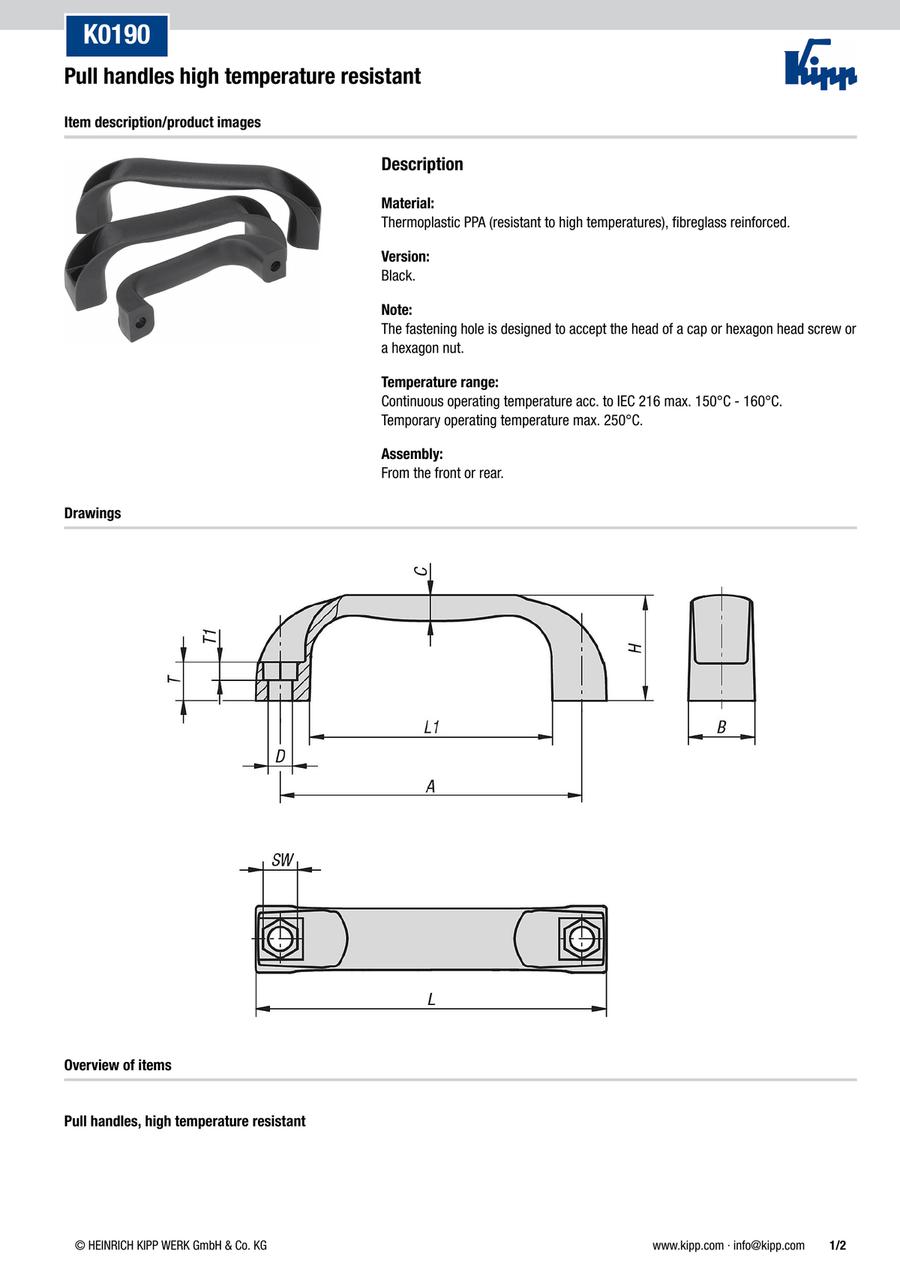

Pull handles high temperature resistant (K0190)
· Application fields: machine and plant construction, toolmaking, furniture industry, rehabilitation and medical technology
· Grip material: thermoplastic PPA
· Mounted: from the front or rear
· Permanent operating temperature max. 160 °C
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.
Part Number
|
|---|
| K0190.311708 |
| K0190.313208 |
| K0190.315008 |
| Part Number |
Standard Unit Price
| Minimum order quantity | Volume Discount | Assembly | B (mm) | C (mm) | H (mm) | L=Length (mm) | L1 (mm) | T (mm) | |
|---|---|---|---|---|---|---|---|---|---|---|---|
5.29 € | 1 | 4 Days | - | 26 | 10 | 41 | 136 | 94 | 15 | ||
8.38 € | 1 | 4 Days | - | 27 | 11 | 44 | 154 | 112 | 16 | ||
10.41 € | 1 | 4 Days | possible from both sides | 27 | 11 | 44 | 172 | 132 | 16 |
Loading...
Basic information
| Main Body Material | Others | Load capacity(N) | 1500 | Main material | Polyphtalamide |
|---|---|---|---|---|---|
| Main colour | black grey RAL 7021 | D=Fastening hole(mm) | 9 | SW(mm) | 13 |
| T1(mm) | 8 |
Configure
Basic Attributes
-
Assembly
- possible from both sides
-
B(mm)
-
C(mm)
-
H(mm)
-
L=Length(mm)
-
L1(mm)
-
T(mm)
-
Type
-
Filter by CAD data type
- 2D
- 3D
Filter by standard shipping days
-
- All
- 4 Days or Less
Optional Attributes
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
