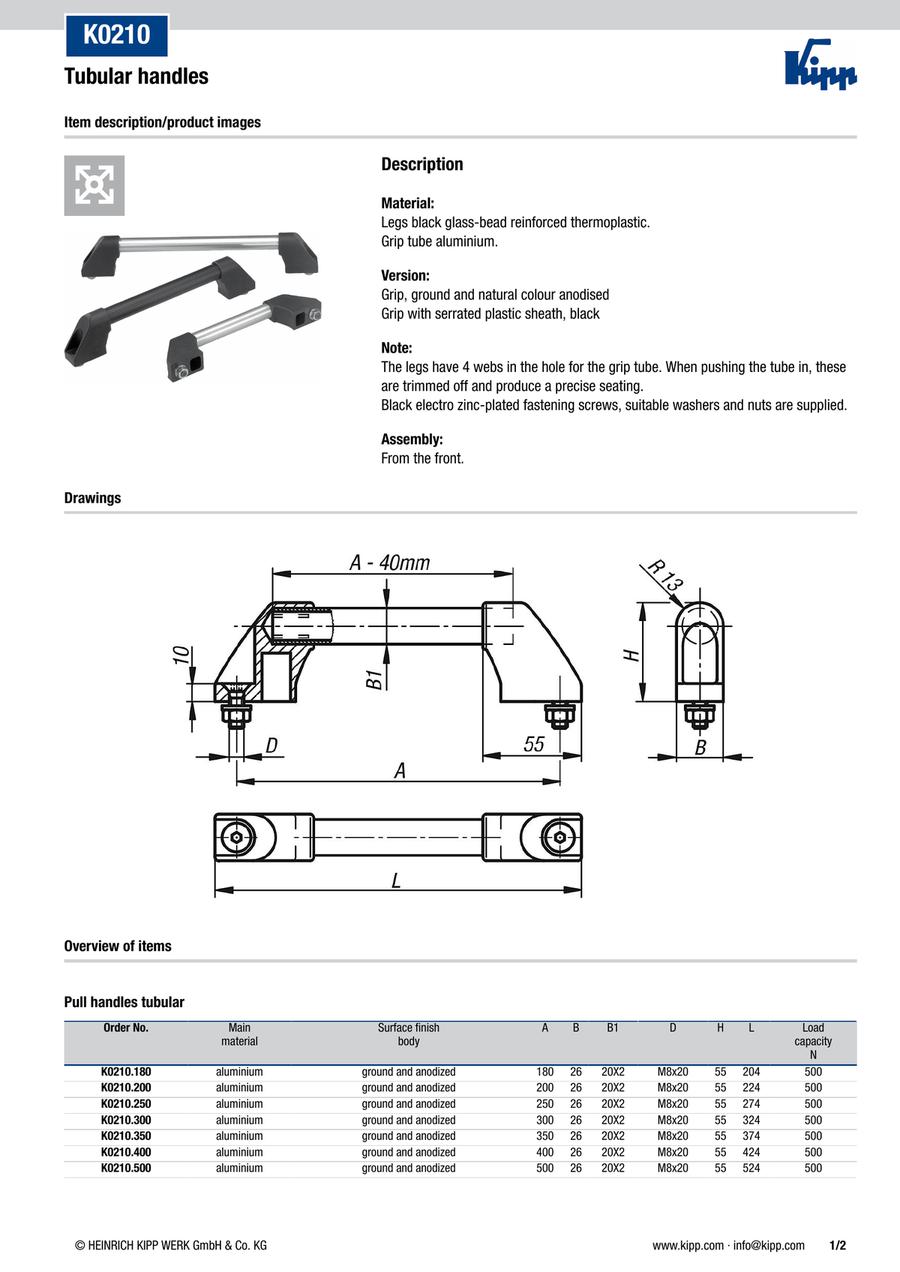

Tubular handles (K0210)
· Application fields: machine and plant construction, toolmaking, furniture industry, rehabilitation and medical technology
· Compatible with all conventional aluminium profiles with 8 mm or 10 mm slot width
· Form A: grip ground and natural tone anodised; Form B: grip with serrated plastic sleeve
· Mounting: from the front, fastening material included
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.
Part Number
|
|---|
| K0210.180 |
| K0210.1803 |
| K0210.200 |
| K0210.2003 |
| K0210.250 |
| K0210.2503 |
| K0210.300 |
| K0210.3003 |
| K0210.350 |
| K0210.3503 |
| K0210.400 |
| K0210.4003 |
| K0210.500 |
| K0210.5003 |
| K0210.600 |
| K0210.6003 |
| Part Number |
Standard Unit Price
| Minimum order quantity | Volume Discount | Hole spacing (mm) | Surface finish body | Main colour | Form | L=Length (mm) | |
|---|---|---|---|---|---|---|---|---|---|
15.42 € | 1 | 4 Days | 180 | ground and anodised | natural | A | 204 | ||
18.42 € | 1 | 4 Days | 180 | serrated plastic sleeve | - | B | 204 | ||
15.89 € | 1 | 4 Days | 200 | ground and anodised | natural | A | 224 | ||
18.96 € | 1 | 4 Days | 200 | serrated plastic sleeve | - | B | 224 | ||
16.95 € | 1 | 4 Days | 250 | ground and anodised | natural | A | 274 | ||
20.22 € | 1 | 4 Days | 250 | serrated plastic sleeve | - | B | 274 | ||
17.99 € | 1 | 4 Days | 300 | ground and anodised | natural | A | 324 | ||
21.41 € | 1 | 4 Days | 300 | serrated plastic sleeve | - | B | 324 | ||
19.04 € | 1 | 4 Days | 350 | ground and anodised | natural | A | 374 | ||
22.64 € | 1 | 4 Days | 350 | serrated plastic sleeve | - | B | 374 | ||
20.14 € | 1 | 4 Days | 400 | ground and anodised | natural | A | 424 | ||
23.95 € | 1 | 4 Days | 400 | serrated plastic sleeve | - | B | 424 | ||
22.24 € | 1 | 4 Days | 500 | ground and anodised | natural | A | 524 | ||
26.43 € | 1 | 4 Days | 500 | serrated plastic sleeve | - | B | 524 | ||
24.30 € | 1 | 4 Days | 600 | ground and anodised | natural | A | 624 | ||
28.41 € | 1 | 4 Days | 600 | serrated plastic sleeve | - | B | 624 |
Loading...
Basic information
| Main Body Material | Aluminum | Load capacity(N) | 500 | Component material | Thermoplastic |
|---|---|---|---|---|---|
| Component colour | black | Assembly | from the operating side | Pull handle: cross section | round |
| B(mm) | 26 | B1(mm) | 20X2 | D=Fastening hole | M8x20 |
| H(mm) | 55 |
Configure
Basic Attributes
-
Hole spacing(mm)
-
Surface finish body
-
Main colour
- natural
-
Form
-
L=Length(mm)
-
Type
-
Filter by CAD data type
- 2D
- 3D
Filter by standard shipping days
-
- All
- 4 Days or Less
Optional Attributes
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
