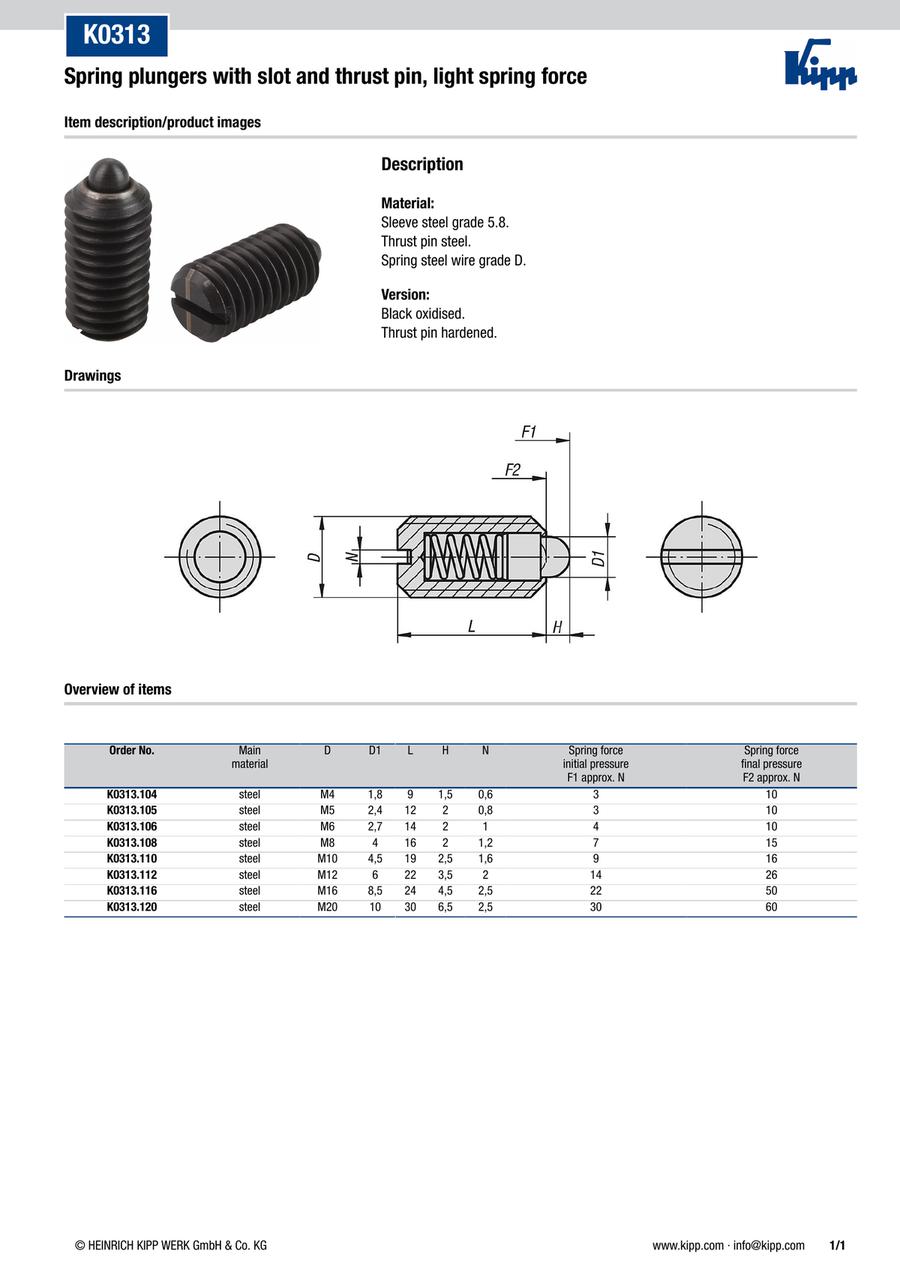

Spring plungers with slot and thrust pin, light spring force (K0313)

Part number:

Still undefined. 8 possible part numbers found.
Quantity:

Part number list

Number of items

Initial Load

(N)

Max. Load

(N)

D=Thread

D1

(mm)

H

(mm)

L=Length

(mm)

N

(mm)

Minimum order quantity
3
10
M4
1.8
1.5
9
0.6
25 pieces
3
10
M5
2.4
2
12
0.8
25 pieces
4
10
M6
2.7
2
14
1
25 pieces
7
15
M8
4
2
16
1.2
25 pieces
9
16
M10
4.5
2.5
19
1.6
25 pieces
14
26
M12
6
3.5
22
2
10 pieces
22
50
M16
8.5
4.5
24
2.5
10 pieces
30
60
M20
10
6.5
30
2.5
10 pieces
Unit price (excluding VAT)(Unit price including VAT)
Standard shipping days
1.10 €
( 1.31 € )
4 working days
1.12 €
( 1.33 € )
4 working days
1.16 €
( 1.38 € )
4 working days
1.37 €
( 1.63 € )
4 working days
1.46 €
( 1.74 € )
4 working days
2.09 €
( 2.49 € )
4 working days
2.81 €
( 3.34 € )
4 working days
4.36 €
( 5.19 € )
4 working days

More Information

Basic information

· Quick indexing, positioning and fixating of components

· Application sectors: machine and plant construction, trade, domestic

· Universally applicable

· Simple assembly

· Hardened thrust pin
