Configure
- B=Width(mm)
- 25
- 40
- D1(mm)
- 6.2
- 10.2
- H=Height(mm)
- 24
- 39
- H1(mm)
- 45
- 74
- L1(mm)
- 22
- 35
- L2(mm)
- 20
- 31.5
- A=Length(mm)
- 78
- 121.5
- D(mm)
- 12
- 18
- D2 max.(mm)
- 9.5
- 27
- D3 min.(mm)
- 2.5
- 4.5
- E(mm)
- ø8
- 12.7
- E1(mm)
- 12
- 20
- E2(mm)
- 8
- 13
- E3(mm)
- 4
- 7
- K(mm)
- 3.5
- 5.5
- K1(mm)
- 26
- 42
- L(mm)
- 46.5
- 73
- R(mm)
- 110
- 143
- F=Retaining force(N)
- 3800
- 7200
- Type
- CAD
- 2D
- 3D
- Est. shipping days
- All
- Within 4 working days

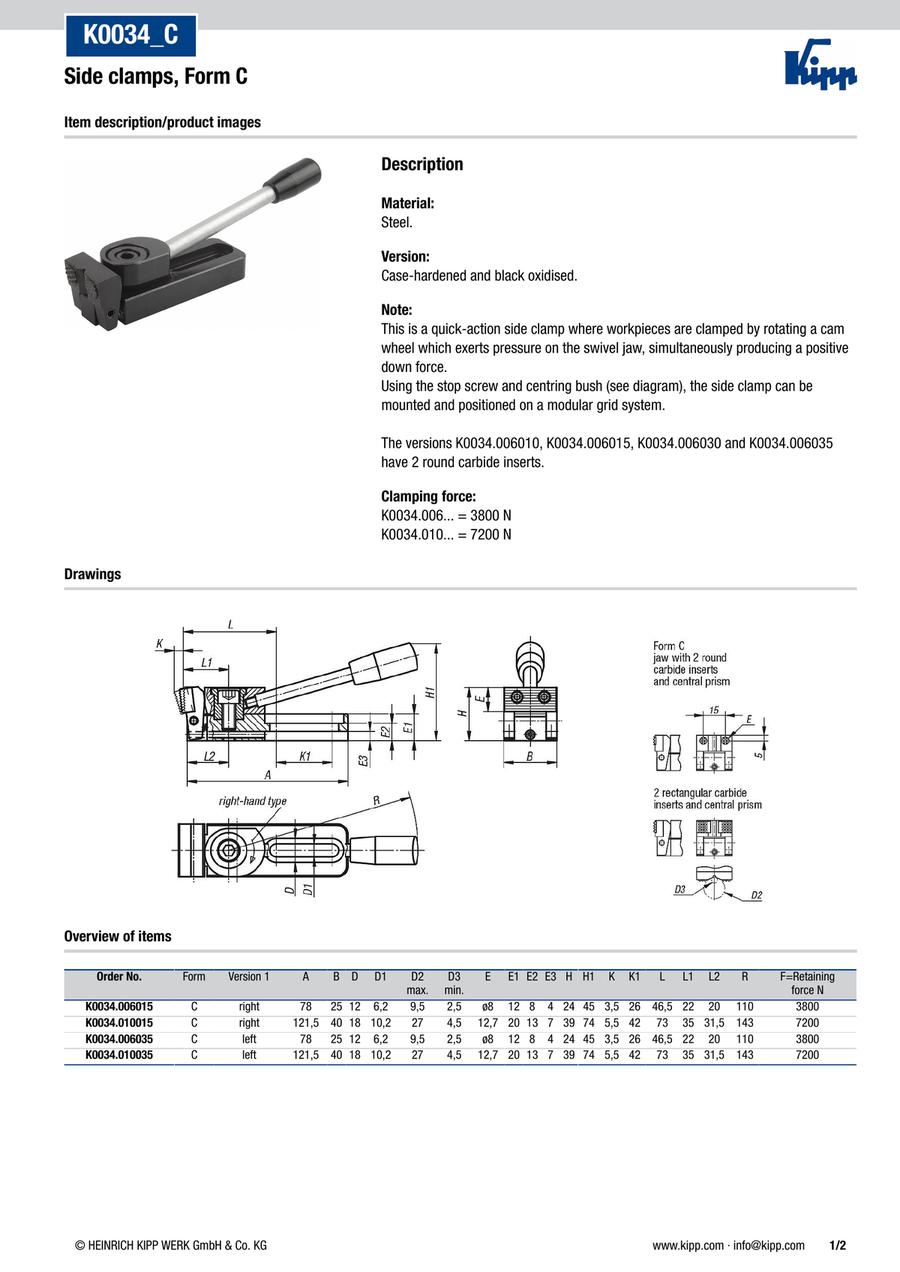

Side clamps, Form C (K0034)
Part number:
possible part numbers found.Part number list
Number of items
Unit price (excluding VAT)(Unit price including VAT) | Standard shipping days |
|---|
155.26 € ( 184.76 € ) | 4 working days |
155.03 € ( 184.49 € ) | 4 working days |
244.18 € ( 290.57 € ) | 4 working days |
244.18 € ( 290.57 € ) | 4 working days |
More Information
Basic information
· Mountable directly on machine tables
· With positive down force
· Flexible application
· Clamping jaw case-hardened
· Manual actuation
