Multi Beam Flexible Coupling / W2AS, W3AK, W3YK, W6AK, W6XK / ABP Antriebstechnik

Configure

Shaft Bore Dia. (machined) D1(mm)
- 3
- 4
- 5
- 6
- 8
- 10
- 12
- 16
- 18
Shaft Bore Dia. (machined) D2(mm)
- 3
- 4
- 5
- 6
- 8
- 10
- 12
- 16
- 18
Outer Dia. A(mm)
- 10
- 13
- 16
- 19
- 25
- 32
- 38
Overall Length W(mm)
- 19
- 20
- 23
- 25
- 28
- 32
- 38
- 45
- 50
- 58
- 67
Allowable Torque(Nm)
Calculation of the allowable torque (or the Safety Factor, etc.) differs depending on the manufacturer. For details, see the technical data provided by the relevant manufacturer.
- 0.25
- 0.3
- 0.4
- 0.5
- 0.6
- 0.8
- 1.2
- 1.5
- 3.5
- 4
Max. Rotational Speed(r/min)
- 8.000
- 5000
Moment of Inertia(g･cm²)
- 0.4
- 1.2
- 3.2
- 3.4
- 7
- 8
- 33
- 35
- 42,6
- 82
- 101
- 124
- 147
- 319
Max. Torque(Ncm)
- 90
- 100
- 150
- 200
- 250
- 340
- 400
- 600
- 1000
- 1500
- 2200
- 3500
Max. Offset Off Shafts (Radial)(mm)
Max. Offset Off Shafts (Axial)(mm)
Max. Offset Off Shafts (Angular)(Grad)
Torsion Spring Stiffness(Nm/rad)
- 8
- 10,5
- 12
- 15
- 20
- 22
- 35
- 40
- 42
- 70
- 80
- 125
- 130
- 200
Radial Spring Stiffness(N/mm)
- 40
- 50
- 60
- 70
- 80
- 130
- 139
- 142
- 143
- 160
- 165
- 252
Type
Est. shipping days
- All
- Within 5 working days
- Within 6 working days

Multi Beam Flexible Coupling / W2AS, W3AK, W3YK, W6AK, W6XK / ABP Antriebstechnik

Catalog

Part number:

Still undefined. 43 possible part numbers found.

Part number list
More Information
Catalog

Part number list

Number of items

Part number

Shaft Bore Dia. (machined) D1

(mm)

Shaft Bore Dia. (machined) D2

(mm)

Outer Dia. A

(mm)

Overall Length W

(mm)

Allowable Torque

(Nm)

Max. Rotational Speed

(r/min)

Operating Temperature Range

(°C)

Moment of Inertia

(g･cm²)

Max. Torque

(Ncm)

Max. Offset Off Shafts (Radial)

(mm)

Max. Offset Off Shafts (Axial)

(mm)

Max. Offset Off Shafts (Angular)

(Grad)

Torsion Spring Stiffness

(Nm/rad)

Radial Spring Stiffness

(N/mm)

Weight

(g)

Minimum order quantity

-	6	6	25	50	3.5	8.000	25～50	42,6	3500	± 0,3	± 1	± 30	10,5	-	25	1 pieces
-	6	8	25	50	3.5	8.000	25～50	42,6	3500	± 0,3	± 1	± 30	10,5	-	25	1 pieces
-	6	10	25	50	3.5	8.000	25～50	42,6	3500	± 0,3	± 1	± 30	10,5	-	25	1 pieces
-	6	12	25	50	3.5	8.000	25～50	42,6	3500	± 0,3	± 1	± 30	10,5	-	25	1 pieces
-	8	8	25	50	3.5	8.000	25～50	42,6	3500	± 0,3	± 1	± 30	10,5	-	25	1 pieces
-	8	10	25	50	3.5	8.000	25～50	42,6	3500	± 0,3	± 1	± 30	10,5	-	25	1 pieces
-	8	12	25	50	3.5	8.000	25～50	42,6	3500	± 0,3	± 1	± 30	10,5	-	25	1 pieces
-	10	10	25	50	3.5	8.000	25～50	42,6	3500	± 0,3	± 1	± 30	10,5	-	25	1 pieces
-	10	12	25	50	3.5	8.000	25～50	42,6	3500	± 0,3	± 1	± 30	10,5	-	25	1 pieces
-	12	12	25	50	3.5	8.000	25～50	42,6	3500	± 0,3	± 1	± 30	10,5	-	25	1 pieces
Data sheet	4	4	13	19	0.5	5000	-40～+140	1.2	90	± 0.13	± 0.2	± 5	15	160	5	1 pieces
Data sheet	6	6	13	19	0.5	5000	-40～+140	1.2	90	± 0.13	± 0.2	± 5	15	160	5	1 pieces
Data sheet	5	5	16	20	0.6	5000	-40～+140	3.2	150	± 0.13	± 0.2	± 5	22	143	9	1 pieces
Data sheet	5	5	19	23	1.2	5000	-40～+140	8	250	± 0.13	± 0.2	± 5	40	130	15	1 pieces
Data sheet	6	6	19	23	1.2	5000	-40～+140	8	250	± 0.13	± 0.2	± 5	40	130	15	1 pieces
Data sheet	6	6	25	32	1.2	5000	-40～+140	35	400	± 0.13	± 0.25	± 5	80	139	37	1 pieces
Data sheet	8	8	25	32	1.2	5000	-40～+140	35	400	± 0.13	± 0.25	± 5	80	139	37	1 pieces
Data sheet	10	10	25	32	1.2	5000	-40～+140	35	400	± 0.13	± 0.25	± 5	80	139	37	1 pieces
Data sheet	10	10	32	45	1.5	5000	-40～+140	124	600	± 0.13	± 0.25	± 5	130	165	82	1 pieces
Data sheet	12	12	32	45	1.5	5000	-40～+140	124	600	± 0.13	± 0.25	± 5	130	165	82	1 pieces
Data sheet	8	8	25	32	1.2	5000	-40～+140	82	400	± 0.13	± 0.2	± 5	35	252	86	1 pieces
Data sheet	8	8	25	32	1.2	5000	-40～+140	82	400	± 0.13	± 0.2	± 5	35	252	86	1 pieces
Data sheet	10	10	25	32	1.2	5000	-40～+140	82	400	± 0.13	± 0.2	± 5	35	252	86	1 pieces
Data sheet	3	3	10	20	0.25	5000	-40～+140	0.4	100	± 0.12	± 0.2	± 5	8	40	2.9	1 pieces
Data sheet	3	4	10	20	0.25	5000	-40～+140	0.4	100	± 0.12	± 0.2	± 5	8	40	2.9	1 pieces
Data sheet	4	4	10	20	0.25	5000	-40～+140	0.4	100	± 0.12	± 0.2	± 5	8	40	2.9	1 pieces
Data sheet	3	3	13	23	0.3	5000	-40～+140	1.2	200	± 0.16	± 0.25	± 5	12	40	5	1 pieces
Data sheet	4	4	13	23	0.3	5000	-40～+140	1.2	200	± 0.16	± 0.25	± 5	12	40	5	1 pieces
Data sheet	5	5	13	23	0.3	5000	-40～+140	1.2	200	± 0.16	± 0.25	± 5	12	40	5	1 pieces
Data sheet	4	4	16	25	0.4	5000	-40～+140	3.4	340	± 0.2	± 0.25	± 5	20	40	8.5	1 pieces
Data sheet	6	6	16	25	0.4	5000	-40～+140	3.4	340	± 0.2	± 0.25	± 5	20	40	8.5	1 pieces
Data sheet	6	6	19	28	0.4	5000	-40～+140	7	400	± 0.25	± 0.25	± 7	40	50	12	1 pieces
Data sheet	8	8	25	38	0.8	5000	-40～+140	33	1000	± 0.37	± 0.25	± 7	70	80	33	1 pieces
Data sheet	10	10	25	38	0.8	5000	-40～+140	33	1000	± 0.37	± 0.25	± 7	70	80	33	1 pieces
Data sheet	12	12	25	38	0.8	5000	-40～+140	33	1000	± 0.37	± 0.25	± 7	70	80	33	1 pieces
Data sheet	10	10	32	58	1.5	5000	-40～+140	147	1500	± 0.5	± 0.25	± 7	125	60	93	1 pieces
Data sheet	12	12	32	58	1.5	5000	-40～+140	147	1500	± 0.5	± 0.25	± 7	125	60	93	1 pieces
Data sheet	16	16	32	58	1.5	5000	-40～+140	147	1500	± 0.5	± 0.25	± 7	125	60	93	1 pieces
Data sheet	12	12	38	67	4	5000	-40～+140	319	2200	± 0.60	± 0.25	± 7	200	70	141	1 pieces
Data sheet	16	16	38	67	4	5000	-40～+140	319	2200	± 0.60	± 0.25	± 7	200	70	141	1 pieces
Data sheet	18	18	38	67	4	5000	-40～+140	319	2200	± 0.60	± 0.25	± 7	200	70	141	1 pieces
Data sheet	10	10	25	38	1.2	5000	-40～+140	101	1000	± 0.37	± 0.25	± 7	42	142	94	1 pieces
Data sheet	12	12	25	38	1.2	5000	-40～+140	101	1000	± 0.37	± 0.25	± 7	42	142	94	1 pieces

Unit price (excluding VAT)(Unit price including VAT)	Standard shipping days

43.25 € ( 51.47 € )	6 working days
43.25 € ( 51.47 € )	6 working days
43.25 € ( 51.47 € )	6 working days
43.25 € ( 51.47 € )	6 working days
43.25 € ( 51.47 € )	6 working days
43.25 € ( 51.47 € )	6 working days
43.25 € ( 51.47 € )	6 working days
43.25 € ( 51.47 € )	6 working days
43.25 € ( 51.47 € )	6 working days
43.25 € ( 51.47 € )	6 working days
39.20 € ( 46.65 € )	5 working days
39.20 € ( 46.65 € )	5 working days
38.83 € ( 46.21 € )	5 working days
43.64 € ( 51.93 € )	5 working days
43.64 € ( 51.93 € )	5 working days
46.91 € ( 55.82 € )	5 working days
46.91 € ( 55.82 € )	5 working days
46.91 € ( 55.82 € )	5 working days
48.70 € ( 57.95 € )	5 working days
48.70 € ( 57.95 € )	5 working days
76.92 € ( 91.53 € )	5 working days
131.65 € ( 156.66 € )	5 working days
131.65 € ( 156.66 € )	5 working days
38.80 € ( 46.17 € )	5 working days
38.80 € ( 46.17 € )	5 working days
38.80 € ( 46.17 € )	5 working days
44.31 € ( 52.73 € )	5 working days
44.31 € ( 52.73 € )	5 working days
44.31 € ( 52.73 € )	5 working days
41.53 € ( 49.42 € )	5 working days
41.53 € ( 49.42 € )	5 working days
42.99 € ( 51.16 € )	5 working days
45.30 € ( 53.91 € )	5 working days
45.30 € ( 53.91 € )	5 working days
45.30 € ( 53.91 € )	5 working days
54.60 € ( 64.97 € )	5 working days
54.60 € ( 64.97 € )	5 working days
54.60 € ( 64.97 € )	5 working days
103.08 € ( 122.67 € )	5 working days
103.08 € ( 122.67 € )	5 working days
103.08 € ( 122.67 € )	5 working days
88.53 € ( 105.35 € )	5 working days
88.53 € ( 105.35 € )	5 working days

More Information

Basic information

Basic information

Universal application for backlash-free, angle-synchronous transmission of rotary movements, high torsional spring stiffness, medium restoring forces, vibration-damping, optimum compensation of misalignments, no moving parts, manufactured in one piece, free helix area, clamping hub.

Catalog

Products homepage

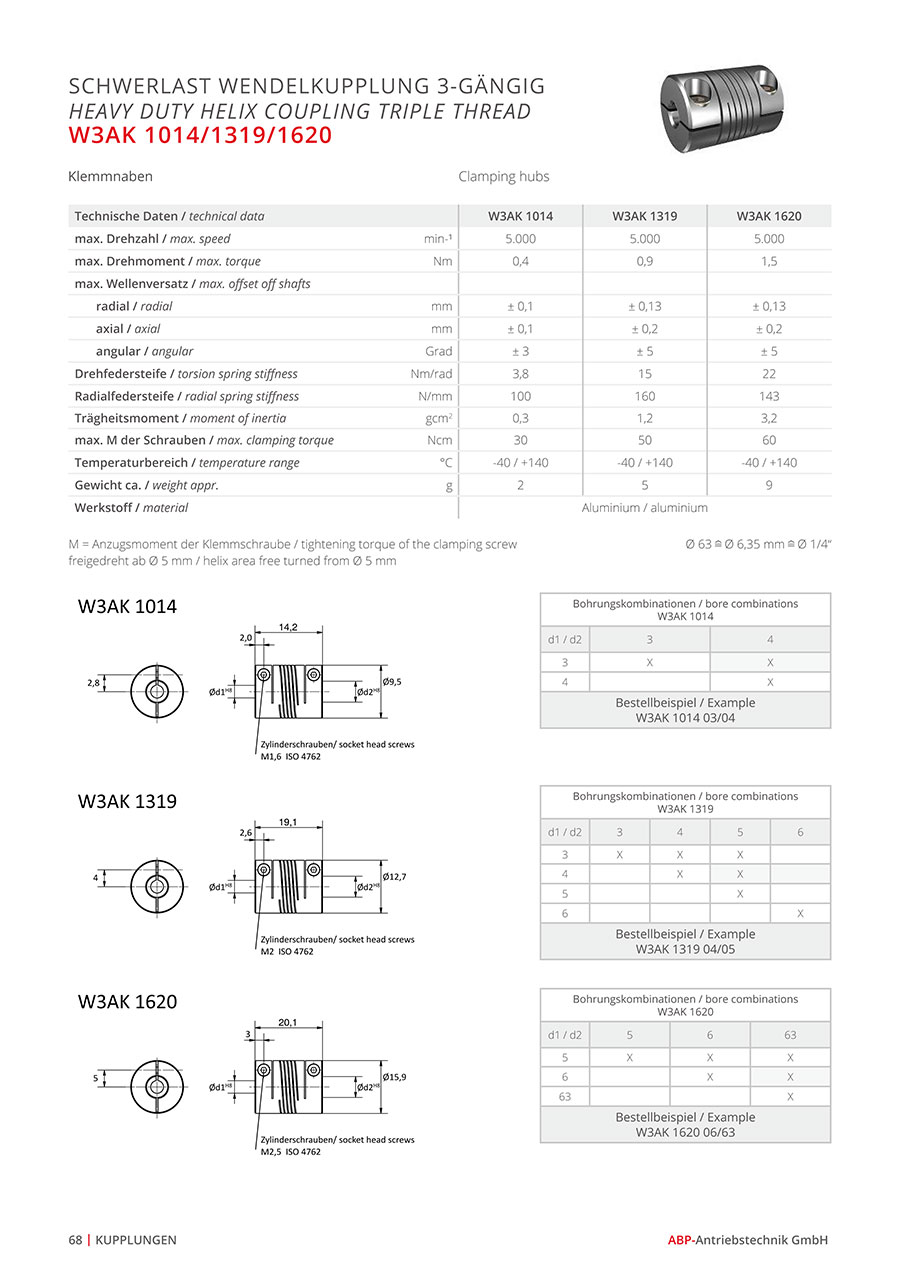

Catalog (2-page spread)
