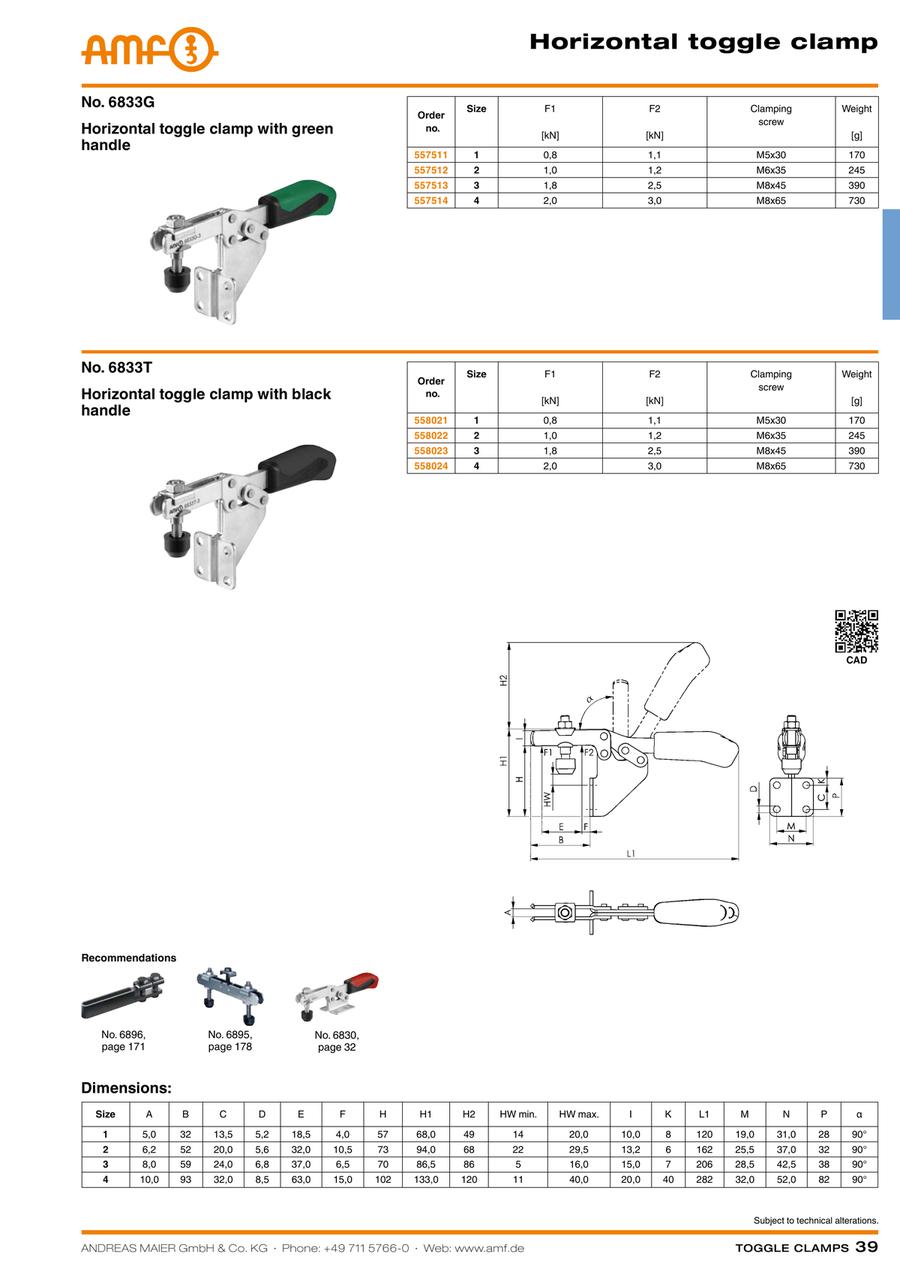

Horizontal Toggle Clamp with Black Handle, 6833T

Horizontal Toggle Clamp with Black Handle, 6833T

Part number:

Still undefined. 4 possible part numbers found.
Quantity:

Part number list

Number of items
  • 1
    • Part number
    558021
    558022
    558023
    558024

    F1

    (kN)

    F2

    (kN)

    Size

    Weight

    (g)

    		Minimum order quantity
    0,8
    1,1
    1
    170
    1 pieces
    1,0
    1,2
    2
    245
    1 pieces
    1,8
    2,5
    3
    390
    1 pieces
    2,0
    3,0
    4
    730
    1 pieces
    Unit price (excluding VAT)(Unit price including VAT)
    Standard shipping days
    34.48 €
    ( 41.03 € )
    6 working days
    39.55 €
    ( 47.06 € )
    6 working days
    48.35 €
    ( 57.54 € )
    6 working days
    55.00 €
    ( 65.45 € )
    6 working days
  • 1

    • More Information

    Basic information

    Horizontal toggle clamp with black handle
    with open clamping arm and angle base.
    Galvanized and passivated. Rivets made of stainless steel, which, for sizes 2 and 3, run in hardened bushings. Bearings are pre-lubricated.
    Ergonomic, oil-resistant handle with large grip surface and soft components. Lock washer for the thrust bolt at the end of the clamping arm.
    Complete with tempered, galvanized clamping screw no. 6890.
