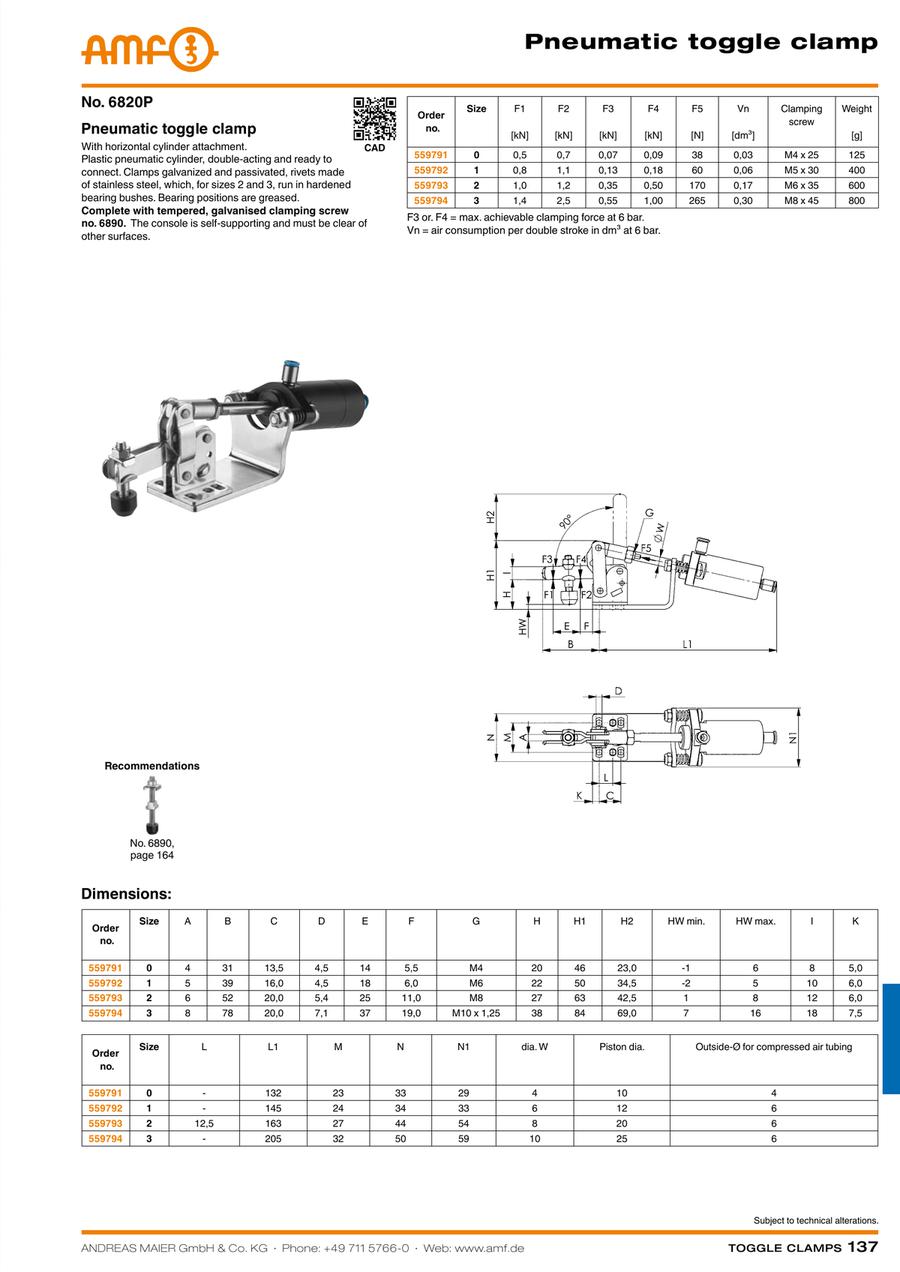

Pneumatic Toggle Clamp, 6820P

Pneumatic Toggle Clamp, 6820P

Part number:

Still undefined. 4 possible part numbers found.
Quantity:

Part number list

Number of items
  • 1
    • Part number
    559791
    559792
    559793
    559794

    F1

    (kN)

    F2

    (kN)

    F3

    (kN)

    F4

    (kN)

    F5

    (N)

    Size

    Vn

    (dm3)

    Outside-Ø for compressed air tubing

    Piston dia.

    Weight

    (g)

    		Minimum order quantity
    0,5
    0,7
    0,07
    0,09
    38
    0
    0,03
    4
    10
    125
    1 pieces
    0,8
    1,1
    0,13
    0,18
    60
    1
    0,06
    6
    12
    400
    1 pieces
    1,0
    1,2
    0,35
    0,50
    170
    2
    0,17
    6
    20
    600
    1 pieces
    1,4
    2,5
    0,55
    1,00
    265
    3
    0,30
    6
    25
    800
    1 pieces
    Unit price (excluding VAT)(Unit price including VAT)
    Standard shipping days
    224.76 €
    ( 267.46 € )
    6 working days
    245.38 €
    ( 292.00 € )
    6 working days
    255.44 €
    ( 303.97 € )
    6 working days
    259.67 €
    ( 309.01 € )
    6 working days
  • 1

    • More Information

    Basic information

    Pneumatic toggle clamp
    With horizontal cylinder attachment.
    Plastic pneumatic cylinder, double-acting and ready to connect. Clamps galvanized and passivated, rivets made of stainless steel, which, for sizes 2 and 3, run in hardened bearing bushes. Bearing positions are greased.
    Complete with tempered, galvanised clamping screw no. 6890. The console is self-supporting and must be clear of other surfaces.
