Configure
- O.D. D(Ø)
- 50
- 75
- 100
- 120
- 125
- 150
- 200
- Width W(mm)
- 18
- 22
- 24
- 33
- 40
- 50
- Load (Reference)(N)
- 490.5
- 735.75
- 1471.5
- 1962
- 3924
- 4905
- 6867
- Weight(kg)
- 0.032
- 0.062
- 0.091
- 0.142
- 0.147
- 0.25
- 0.398
- 0.507
- 0.727
- 0.784
- 1.23
- Bearing type
- Min. temperature resistance(° C)
- -25
- -20
- Load capacity at 4km/h(kg)
- 50
- 75
- 150
- 200
- 400
- 500
- 700
- Axle hole diameter(mm)
- 10
- 12
- 15
- 20
- Hub W(mm)
- 18
- 22
- 24
- 33
- 40
- 50
- Type

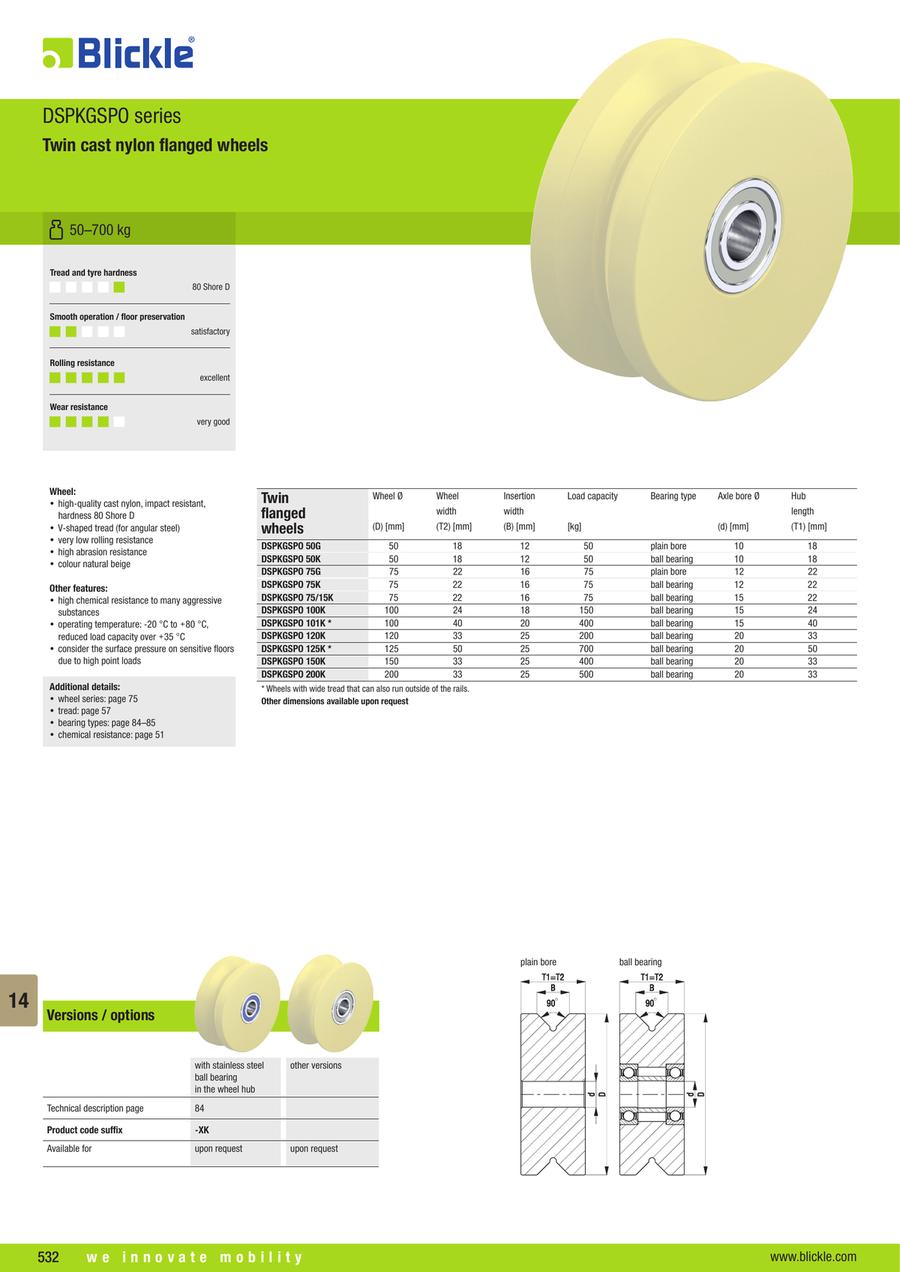

Twin Flanged Wheel of Compressed Cast Nylon, DSPKGSPO Series
Part number:
possible part numbers found.Part number list
Number of items
| Part number |
|---|
Unit price (excluding VAT)(Unit price including VAT) | Standard shipping days |
|---|
22.47 € ( 26.74 € ) | 5 working days |
35.93 € ( 42.76 € ) | 5 working days |
76.55 € ( 91.09 € ) | 5 working days |
57.86 € ( 68.85 € ) | 5 working days |
65.70 € ( 78.18 € ) | 5 working days |
62.56 € ( 74.45 € ) | 5 working days |
74.47 € ( 88.62 € ) | 5 working days |
106.70 € ( 126.97 € ) | 5 working days |
135.85 € ( 161.66 € ) | 5 working days |
167.20 € ( 198.97 € ) | 5 working days |
217.89 € ( 259.29 € ) | 5 working days |
More Information
Basic information
Twin Flanged Wheel of Compressed Cast Nylon
Wheel:
- high-quality cast nylon, impact resistant, hardness 80 Shore D
- V-shaped tread (for angular steel)
- very low rolling resistance
- high abrasion resistance
- colour natural beige
- high chemical resistance to many aggressive substances
- operating temperature: -20 °C to +80 °C, reduced load capacity over +35 °C
- consider the surface pressure on sensitive floors due to high point loads
