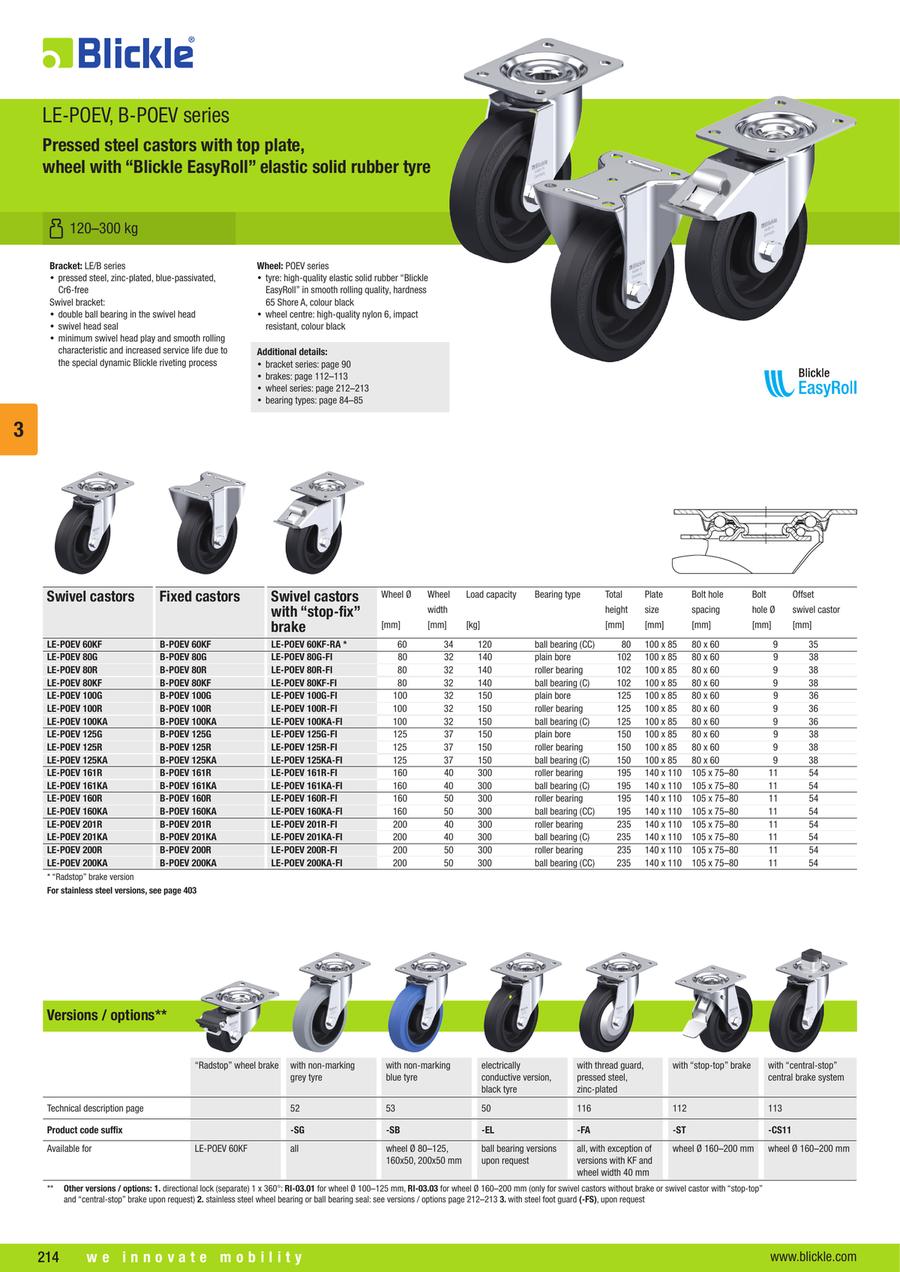

Pressed Steel Swivel Castor, LE-POEV Series

Pressed Steel Swivel Castor, with Top Plate Fitting Heavy Duty Wheel, with 'Blickle Easyroll' Elastic Solid Rubber Tyres, with Nylon Wheel Centre

Bracket: LE series

pressed steel, zinc-plated, blue-passivated, Cr6-free
double ball bearing in the swivel head
swivel head seal
minimum swivel head play and smooth rolling characteristic and increased service life due to the special dynamic Blickle riveting process

Wheel: POEV series

tyre: high-quality elastic solid rubber "Blickle EasyRoll" in smooth rolling quality, hardness 65 Shore A, colour black
wheel centre: high-quality nylon 6, impact resistant, colour black

Other features:

high chemical resistance to many aggressive substances, except oils
operating temperature: -25 °C to +80 °C, temporarily up to +100 °C, reduced load capacity over +35 °C

Part Number

Once your search is narrowed to one product,
the corresponding part number is displayed here.

Save
Similar products
Product data
CAD data not available

Products homepage

Data to be displayed: 30; 45; 60

1
2
3
4
5
Next >>

Part Number
LE-POEV 60KF
LE-POEV 60KF-RA
LE-POEV 60KF-RA-SG
LE-POEV 60KF-SG
LE-POEV 80G
LE-POEV 80G-FA
LE-POEV 80G-FI
LE-POEV 80G-FI-FA
LE-POEV 80G-FI-SB
LE-POEV 80G-FI-SB-FA
LE-POEV 80G-FI-SG
LE-POEV 80G-FI-SG-FA
LE-POEV 80G-SB
LE-POEV 80G-SB-FA
LE-POEV 80G-SG
LE-POEV 80G-SG-FA
LE-POEV 80KF
LE-POEV 80KF-FI
LE-POEV 80KF-FI-SB
LE-POEV 80KF-FI-SG
LE-POEV 80KF-SB
LE-POEV 80KF-SG
LE-POEV 80KFD
LE-POEV 80KFD-FI
LE-POEV 80KFD-FI-SB
LE-POEV 80KFD-FI-SG
LE-POEV 80KFD-SB
LE-POEV 80KFD-SG
LE-POEV 80R
LE-POEV 80R-FA
LE-POEV 80R-FI
LE-POEV 80R-FI-FA
LE-POEV 80R-FI-SB
LE-POEV 80R-FI-SB-FA
LE-POEV 80R-FI-SG
LE-POEV 80R-FI-SG-FA
LE-POEV 80R-SB
LE-POEV 80R-SB-FA
LE-POEV 80R-SG
LE-POEV 80R-SG-FA
LE-POEV 80XKF-FI-SG
LE-POEV 80XKF-SG
LE-POEV 80XR
LE-POEV 80XR-FA
LE-POEV 80XR-FI
LE-POEV 80XR-FI-FA
LE-POEV 80XR-FI-SB
LE-POEV 80XR-FI-SB-FA
LE-POEV 80XR-FI-SG
LE-POEV 80XR-FI-SG-FA
LE-POEV 80XR-SB
LE-POEV 80XR-SB-FA
LE-POEV 80XR-SG
LE-POEV 80XR-SG-FA
LE-POEV 100G
LE-POEV 100G-FA
LE-POEV 100G-FI
LE-POEV 100G-FI-FA
LE-POEV 100G-FI-SB
LE-POEV 100G-FI-SB-FA

Standard Unit Price	Minimum order quantity	Standard Shipping Days ?	Caster Type	Mounting Height H (mm)	Load Range (daN)	Wheel Characteristics	Plate Length L (mm)	Plate Width W (mm)	Wheel Dia. D (mm)	Wheel Width B (mm)	Bearing type	Product type	Total height (mm)	Weight (g)	Wheel diameter (mm)	Wheel width (mm)	Tread color	Non-staining	Non-marking	Minimum temperature resistance (°C)	Load capacity at 4 km/h (kg)	Load capacity at 3 km/h (kg)
37.15 €	1	23 Days	Plate Type Swivel / Screw-In Type / Through Hole Type / Rotation Type	102	80.01 to 140.00	-	100	85	80	32	Ball bearing (CC)	swivel castor	80	556	60	34	black	no	no	-20	120	120
45.13 €	1	23 Days	Plate Type Swivel / Screw-In Type / Through Hole Type / Rotation Type	102	80.01 to 140.00	-	100	85	80	32	Ball bearing (CC)	swivel castor with brake	80	614	60	34	black	no	no	-20	120	120
45.93 €	1	23 Days	Plate Type Swivel / Screw-In Type / Through Hole Type / Rotation Type	102	80.01 to 140.00	-	100	85	80	32	Ball bearing (CC)	swivel castor with brake	80	614	60	34	grey	yes	yes	-20	120	120
37.95 €	1	23 Days	Plate Type Swivel / Screw-In Type / Through Hole Type / Rotation Type	102	80.01 to 140.00	-	100	85	80	32	Ball bearing (CC)	swivel castor	80	558	60	34	grey	yes	yes	-20	120	120
27.09 €	1	5 Days	Plate Type Swivel / Screw-In Type / Through Hole Type / Rotation Type	102	80.01 to 140.00	-	100	85	80	32	plain bore	swivel castor	102	523	80	32	black	no	no	-25	140	-
33.65 €	1	23 Days	Plate Type Swivel / Screw-In Type / Through Hole Type / Rotation Type	102	80.01 to 140.00	-	100	85	80	32	plain bore	swivel castor	102	541	80	32	black	no	no	-25	140	-
36.88 €	1	5 Days	Plate Type Swivel / Screw-In Type / Through Hole Type / Rotation Type	102	80.01 to 140.00	-	100	85	80	32	plain bore	swivel castor with brake	102	616	80	32	black	no	no	-25	140	-
43.45 €	1	23 Days	Plate Type Swivel / Screw-In Type / Through Hole Type / Rotation Type	102	80.01 to 140.00	-	100	85	80	32	plain bore	swivel castor with brake	102	634	80	32	black	no	no	-25	140	-
38.68 €	1	7 Days	Plate Type Swivel / Screw-In Type / Through Hole Type / Rotation Type	102	80.01 to 140.00	-	100	85	80	32	plain bore	swivel castor with brake	102	625	80	32	blue	yes	yes	-25	140	-
45.25 €	1	23 Days	Plate Type Swivel / Screw-In Type / Through Hole Type / Rotation Type	102	80.01 to 140.00	-	100	85	80	32	plain bore	swivel castor with brake	102	634	80	32	blue	yes	yes	-25	140	-
37.68 €	1	7 Days	Plate Type Swivel / Screw-In Type / Through Hole Type / Rotation Type	102	80.01 to 140.00	-	100	85	80	32	plain bore	swivel castor with brake	102	630	80	32	grey	yes	yes	-25	140	-
44.25 €	1	23 Days	Plate Type Swivel / Screw-In Type / Through Hole Type / Rotation Type	102	80.01 to 140.00	-	100	85	80	32	plain bore	swivel castor with brake	102	633	80	32	grey	yes	yes	-25	140	-
28.88 €	1	7 Days	Plate Type Swivel / Screw-In Type / Through Hole Type / Rotation Type	102	80.01 to 140.00	-	100	85	80	32	plain bore	swivel castor	102	529	80	32	blue	yes	yes	-25	140	-
35.45 €	1	23 Days	Plate Type Swivel / Screw-In Type / Through Hole Type / Rotation Type	102	80.01 to 140.00	-	100	85	80	32	plain bore	swivel castor	102	541	80	32	blue	yes	yes	-25	140	-
27.90 €	1	7 Days	Plate Type Swivel / Screw-In Type / Through Hole Type / Rotation Type	102	80.01 to 140.00	-	100	85	80	32	plain bore	swivel castor	102	529	80	32	grey	yes	yes	-25	140	-
34.45 €	1	23 Days	Plate Type Swivel / Screw-In Type / Through Hole Type / Rotation Type	102	80.01 to 140.00	-	100	85	80	32	plain bore	swivel castor	102	542	80	32	grey	yes	yes	-25	140	-
36.41 €	1	5 Days	Plate Type Swivel / Screw-In Type / Through Hole Type / Rotation Type	102	80.01 to 140.00	-	100	85	80	32	Ball bearing (C)	swivel castor	102	568	80	32	black	no	no	-20	140	-
45.99 €	1	5 Days	Plate Type Swivel / Screw-In Type / Through Hole Type / Rotation Type	102	80.01 to 140.00	-	100	85	80	32	Ball bearing (C)	swivel castor with brake	102	682	80	32	black	no	no	-20	140	-
47.78 €	1	7 Days	Plate Type Swivel / Screw-In Type / Through Hole Type / Rotation Type	102	80.01 to 140.00	-	100	85	80	32	Ball bearing (C)	swivel castor with brake	102	666	80	32	blue	yes	yes	-20	140	-
46.80 €	1	5 Days	Plate Type Swivel / Screw-In Type / Through Hole Type / Rotation Type	102	80.01 to 140.00	-	100	85	80	32	Ball bearing (C)	swivel castor with brake	102	670	80	32	grey	yes	yes	-20	140	-
38.22 €	1	7 Days	Plate Type Swivel / Screw-In Type / Through Hole Type / Rotation Type	102	80.01 to 140.00	-	100	85	80	32	Ball bearing (C)	swivel castor	102	559	80	32	blue	yes	yes	-20	140	-
37.21 €	1	7 Days	Plate Type Swivel / Screw-In Type / Through Hole Type / Rotation Type	102	80.01 to 140.00	-	100	85	80	32	Ball bearing (C)	swivel castor	102	560	80	32	grey	yes	yes	-20	140	-
40.73 €	1	7 Days	Plate Type Swivel / Screw-In Type / Through Hole Type / Rotation Type	102	80.01 to 140.00	-	100	85	80	32	Ball bearing (C)	swivel castor	102	568	80	32	black	no	no	-20	140	-
50.30 €	1	7 Days	Plate Type Swivel / Screw-In Type / Through Hole Type / Rotation Type	102	80.01 to 140.00	-	100	85	80	32	Ball bearing (C)	swivel castor with brake	102	675	80	32	black	no	no	-20	140	-
52.10 €	1	7 Days	Plate Type Swivel / Screw-In Type / Through Hole Type / Rotation Type	102	80.01 to 140.00	-	100	85	80	32	Ball bearing (C)	swivel castor with brake	102	680	80	32	blue	yes	yes	-20	140	-
51.10 €	1	7 Days	Plate Type Swivel / Screw-In Type / Through Hole Type / Rotation Type	102	80.01 to 140.00	-	100	85	80	32	Ball bearing (C)	swivel castor with brake	102	677	80	32	grey	yes	yes	-20	140	-
42.54 €	1	23 Days	Plate Type Swivel / Screw-In Type / Through Hole Type / Rotation Type	102	80.01 to 140.00	-	100	85	80	32	Ball bearing (C)	swivel castor	102	575	80	32	blue	yes	yes	-20	140	-
41.53 €	1	7 Days	Plate Type Swivel / Screw-In Type / Through Hole Type / Rotation Type	102	80.01 to 140.00	-	100	85	80	32	Ball bearing (C)	swivel castor	102	575	80	32	grey	yes	yes	-20	140	-
31.35 €	1	5 Days	Plate Type Swivel / Screw-In Type / Through Hole Type / Rotation Type	102	80.01 to 140.00	-	100	85	80	32	roller bearing	swivel castor	102	561	80	32	black	no	no	-25	140	-
37.91 €	1	7 Days	Plate Type Swivel / Screw-In Type / Through Hole Type / Rotation Type	102	80.01 to 140.00	-	100	85	80	32	roller bearing	swivel castor	102	572	80	32	black	no	no	-25	140	-
41.15 €	1	5 Days	Plate Type Swivel / Screw-In Type / Through Hole Type / Rotation Type	102	80.01 to 140.00	-	100	85	80	32	roller bearing	swivel castor with brake	102	669	80	32	black	no	no	-25	140	-
47.72 €	1	7 Days	Plate Type Swivel / Screw-In Type / Through Hole Type / Rotation Type	102	80.01 to 140.00	-	100	85	80	32	roller bearing	swivel castor with brake	102	680	80	32	black	no	no	-25	140	-
42.95 €	1	5 Days	Plate Type Swivel / Screw-In Type / Through Hole Type / Rotation Type	102	80.01 to 140.00	-	100	85	80	32	roller bearing	swivel castor with brake	102	650	80	32	blue	yes	yes	-25	140	-
49.52 €	1	7 Days	Plate Type Swivel / Screw-In Type / Through Hole Type / Rotation Type	102	80.01 to 140.00	-	100	85	80	32	roller bearing	swivel castor with brake	102	680	80	32	blue	yes	yes	-25	140	-
41.95 €	1	5 Days	Plate Type Swivel / Screw-In Type / Through Hole Type / Rotation Type	102	80.01 to 140.00	-	100	85	80	32	roller bearing	swivel castor with brake	102	673	80	32	grey	yes	yes	-25	140	-
48.52 €	1	7 Days	Plate Type Swivel / Screw-In Type / Resin / Through Hole Type / Rotation Type	125	80.01 to 140.00	-	100	85	100	37	roller bearing	swivel castor with brake	102	680	80	32	grey	yes	yes	-25	140	-
33.15 €	1	5 Days	Plate Type Swivel / Screw-In Type / Resin / Through Hole Type / Rotation Type	125	80.01 to 140.00	-	100	85	100	37	roller bearing	swivel castor	102	563	80	32	blue	yes	yes	-25	140	-
39.72 €	1	7 Days	Plate Type Swivel / Screw-In Type / Resin / Through Hole Type / Rotation Type	125	80.01 to 140.00	-	100	85	100	37	roller bearing	swivel castor	102	585	80	32	blue	yes	yes	-25	140	-
32.17 €	1	7 Days	Plate Type Swivel / Screw-In Type / Resin / Through Hole Type / Rotation Type	125	80.01 to 140.00	-	100	85	100	37	roller bearing	swivel castor	102	560	80	32	grey	yes	yes	-25	140	-
38.71 €	1	7 Days	Plate Type Swivel / Screw-In Type / Resin / Through Hole Type / Rotation Type	125	80.01 to 140.00	-	100	85	100	37	roller bearing	swivel castor	102	580	80	32	grey	yes	yes	-25	140	-
64.10 €	1	23 Days	Plate Type Swivel / Screw-In Type / Resin / Through Hole Type / Rotation Type	125	80.01 to 140.00	Conductivity	100	85	100	37	Ball bearing (C)	swivel castor with brake	102	677	80	32	grey	yes	yes	-20	140	-
54.53 €	1	23 Days	Plate Type Swivel / Screw-In Type / Resin / Through Hole Type / Rotation Type	125	80.01 to 140.00	Conductivity	100	85	100	37	Ball bearing (C)	swivel castor	102	575	80	32	grey	yes	yes	-20	140	-
35.10 €	1	7 Days	Plate Type Swivel / Screw-In Type / Resin / Through Hole Type / Rotation Type	125	80.01 to 140.00	-	100	85	100	37	roller bearing	swivel castor	102	567	80	32	black	no	no	-25	140	-
41.65 €	1	23 Days	Plate Type Swivel / Screw-In Type / Resin / Through Hole Type / Rotation Type	125	80.01 to 140.00	-	100	85	100	37	roller bearing	swivel castor	102	580	80	32	black	no	no	-25	140	-
44.88 €	1	7 Days	Plate Type Swivel / Screw-In Type / Resin / Through Hole Type / Rotation Type	125	80.01 to 140.00	Conductivity	100	85	100	37	roller bearing	swivel castor with brake	102	668	80	32	black	no	no	-25	140	-
51.45 €	1	23 Days	Plate Type Swivel / Screw-In Type / Resin / Through Hole Type / Rotation Type	125	80.01 to 140.00	Conductivity	100	85	100	37	roller bearing	swivel castor with brake	102	688	80	32	black	no	no	-25	140	-
46.68 €	1	7 Days	Plate Type Swivel / Screw-In Type / Resin / Through Hole Type / Rotation Type	125	80.01 to 140.00	-	100	85	100	37	roller bearing	swivel castor with brake	102	667	80	32	blue	yes	yes	-25	140	-
53.25 €	1	23 Days	Plate Type Swivel / Screw-In Type / Resin / Through Hole Type / Rotation Type	125	80.01 to 140.00	-	100	85	100	37	roller bearing	swivel castor with brake	102	688	80	32	blue	yes	yes	-25	140	-
45.68 €	1	7 Days	Plate Type Swivel / Screw-In Type / Resin / Through Hole Type / Rotation Type	125	80.01 to 140.00	-	100	85	100	37	roller bearing	swivel castor with brake	102	669	80	32	grey	yes	yes	-25	140	-
52.25 €	1	23 Days	Plate Type Swivel / Screw-In Type / Resin / Through Hole Type / Rotation Type	125	80.01 to 140.00	-	100	85	100	37	roller bearing	swivel castor with brake	102	687	80	32	grey	yes	yes	-25	140	-
36.90 €	1	23 Days	Plate Type Swivel / Screw-In Type / Resin / Through Hole Type / Rotation Type	125	80.01 to 140.00	-	100	85	100	37	roller bearing	swivel castor	102	562	80	32	blue	yes	yes	-25	140	-
43.45 €	1	23 Days	Plate Type Swivel / Screw-In Type / Resin / Through Hole Type / Rotation Type	150	80.01 to 140.00	-	100	85	125	40	roller bearing	swivel castor	102	580	80	32	blue	yes	yes	-25	140	-
35.90 €	1	23 Days	Plate Type Swivel / Screw-In Type / Resin / Through Hole Type / Rotation Type	150	80.01 to 140.00	-	100	85	125	40	roller bearing	swivel castor	102	561	80	32	grey	yes	yes	-25	140	-
42.45 €	1	23 Days	Plate Type Swivel / Screw-In Type / Resin / Through Hole Type / Rotation Type	150	80.01 to 140.00	-	100	85	125	40	roller bearing	swivel castor	102	579	80	32	grey	yes	yes	-25	140	-
31.15 €	1	5 Days	Plate Type Swivel / Screw-In Type / Through Hole Type / Rotation Type	125	140.01 to 220.00	-	100	85	100	32	plain bore	swivel castor	125	618	100	32	black	no	no	-25	150	-
38.73 €	1	7 Days	Plate Type Swivel / Screw-In Type / Through Hole Type / Rotation Type	125	140.01 to 220.00	-	100	85	100	32	plain bore	swivel castor	125	701	100	32	black	no	no	-25	150	-
41.75 €	1	5 Days	Plate Type Swivel / Screw-In Type / Through Hole Type / Rotation Type	125	140.01 to 220.00	-	100	85	100	32	plain bore	swivel castor with brake	125	741	100	32	black	no	no	-25	150	-
49.33 €	1	7 Days	Plate Type Swivel / Screw-In Type / Through Hole Type / Rotation Type	125	140.01 to 220.00	-	100	85	100	32	plain bore	swivel castor with brake	125	830	100	32	black	no	no	-25	150	-
44.63 €	1	7 Days	Plate Type Swivel / Screw-In Type / Through Hole Type / Rotation Type	125	140.01 to 220.00	-	100	85	100	32	plain bore	swivel castor with brake	125	737	100	32	blue	yes	yes	-25	150	-
52.22 €	1	7 Days	Plate Type Swivel / Screw-In Type / Through Hole Type / Rotation Type	125	140.01 to 220.00	-	100	85	100	32	plain bore	swivel castor with brake	125	741	100	32	blue	yes	yes	-25	150	-

1
2
3
4
5
Next >>

Basic information

Wheel Material	Engineering Plastics	Material (details)	Tread material: Rubber, Wheel body material: high-quality nylon 6	Material	Rubber
Suitable for autoclaves	no	Mounting type	top plate	Tread and tyre hardness	65 Shore A
Wheel body color	black	Tread hydrolysis-resistant	no	Rustproof	no
Maximum temperature resistance(°C)	70

Configure

478Suggestion of an applicable part number.

View Part Numbers

Some specification is not specified yet.

The part number is completed.

Basic Attributes

Caster Type
- Plate Type Swivel
- Screw-In Type
- Resin
- Through Hole Type
- Rotation Type
Clear
Mounting Height H(mm)
80

102

125

130

150

170

195

235
Clear
Load Range(daN)
- 80.01 to 140.00
- 140.01 to 220.00
- 220.01 to 320.00
Clear
Wheel Characteristics
- Conductivity
Clear
Plate Length L(mm)
100

140
Clear
Plate Width W(mm)
85

110
Clear
Wheel Dia. D(mm)
60

80

100

125

160

200
Clear
Wheel Width B(mm)
32

34

37

40

50

54
Clear
Bearing type
- Ball bearing
- Ball bearing (C)
- Ball bearing (CC)
- plain bore
- roller bearing
Clear
Product type
- swivel castor
- swivel castor with brake
Clear
Total height(mm)
80

102

125

150

195

235
Clear
Weight(g)
523

529

541

542

556

558

559

560

561

562

563

567

568

572

575

579

580

585

614

616

618

625

630

633

634

650

655

656

658

660

661

665

666

667

668

669

670

673

675

677

680

682

687

688

696

700

701

704

715

717

719

730

732

734

737

740

741

743

748

752

761

768

770

774

778

780

781

782

784

786

788

812

814

822

823

827

828

830

832

834

838

839

841

847

849

850

851

859

860

864

866

868

870

871

873

874

875

876

890

910

911

912

914

917

918

920

922

924

928

934

940

979

980

984

987

990

993

996

998

1001

1005

1009

1018

1020

1044

1048

1050

1056

1066

1121

1695

1709

1713

1722

1723

1724

1734

1738

1851

1894

1910

1912

1914

1918

1922

1926

1934

1958

1962

1971

1975

1980

1981

1984

1993

1995

1996

1998

2002

2004

2005

2006

2010

2011

2012

2021

2022

2024

2025

2028

2031

2036

2037

2039

2041

2044

2047

2120

2122

2124

2138

2140

2146

2149

2151

2165

2166

2173

2175

2176

2177

2184

2200

2201

2205

2208

2209

2211

2214

2215

2216

2220

2225

2226

2234

2235

2238

2240

2241

2246

2248

2250

2252

2254

2260

2264

2273

2274

2276

2278

2280

2283

2284

2288

2289

2291

2292

2293

2294

2297

2298

2299

2300

2302

2304

2306

2307

2310

2311

2312

2316

2317

2318

2322

2324

2326

2328

2331

2332

2334

2335

2336

2338

2339

2340

2341

2343

2344

2345

2350

2351

2354

2391

2400

2411

2420

2422

2423

2426

2427

2431

2440

2441

2446

2456

2458

2461

2462

2463

2469

2470

2482

2489

2493

2501

2503

2504

2512

2514

2521

2524

2530

2532

2537

2538

2539

2540

2544

2549

2550

2554

2556

2558

2559

2562

2564

2567

2572

2573

2574

2585

2588

2590

2598

2599

2608

2609

2611

2613

2638

2662

2730

2736

2740

2750

2753

2762

2770

2783

2790

2795

2796

2800

2808

2809

2814

2817

2818

2823

2824

2830

2831

2840

2849

2850

2854

2857

2858

2859

2863

2864

2877

2880

2889

2890

2898

2899

2914

3001

3034

3043

3056

3071

3077

3086

3096

3100

3109

3118

3119

3120

3174

3195

3242

3320
Clear
Wheel diameter(mm)
60

80

100

125

160

200
Clear
Wheel width(mm)
32

34

37

40

50
Clear
Tread color
black

blue

grey
Clear
Non-staining
- no
- yes
Clear
Non-marking
- no
- yes
Clear
Minimum temperature resistance(°C)
- -25
- -20
Clear
Load capacity at 4 km/h(kg)
120

140

150

300
Clear
Load capacity at 3 km/h(kg)
120
Clear
Type
- LE-POEV
Clear
