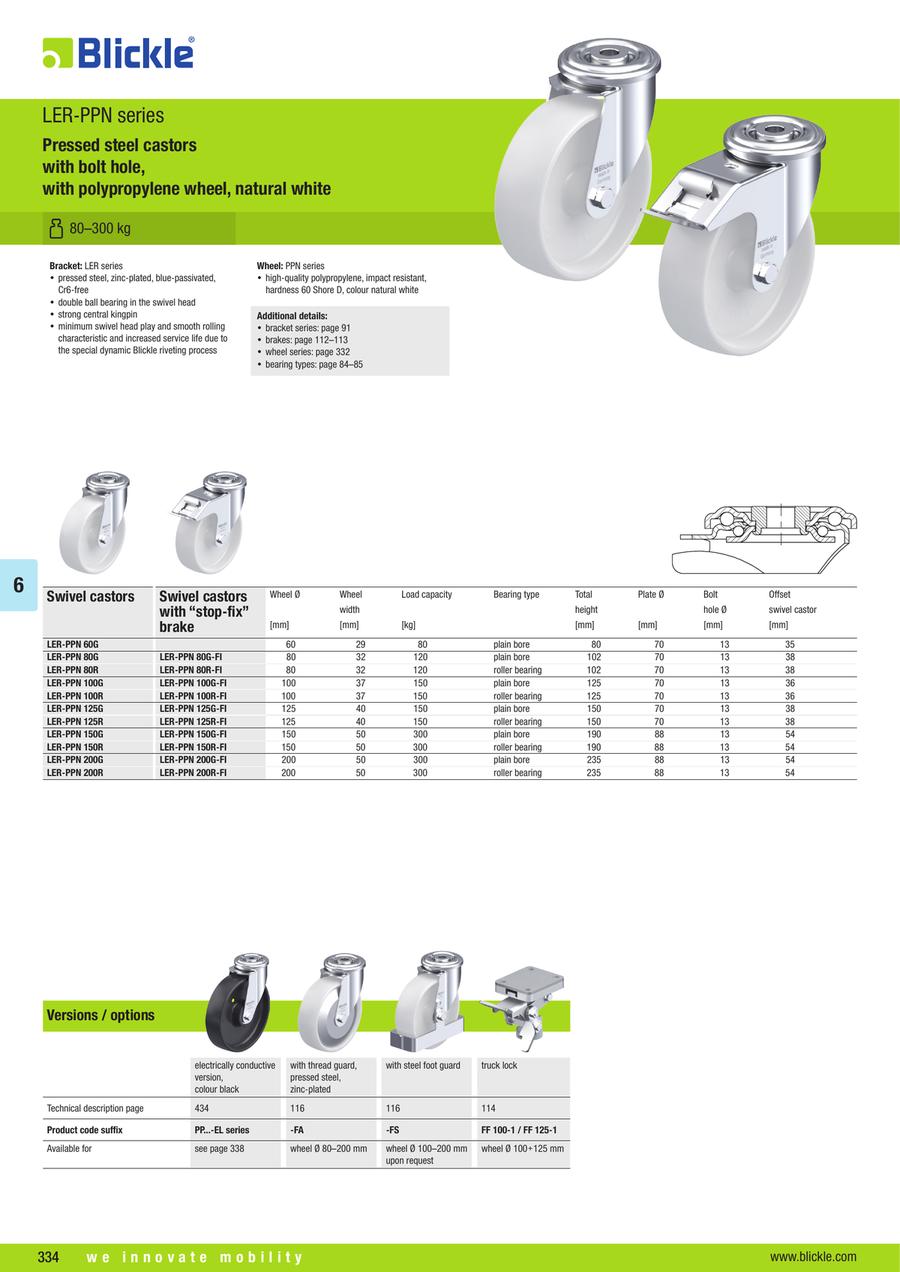

Pressed Steel Swivel Castor, LER-PPN Series
Bracket: LER series
- pressed steel, zinc-plated, blue-passivated, Cr6-free
- double ball bearing in the swivel head
- strong central kingpin
- minimum swivel head play and smooth rolling characteristic and increased service life due to the special dynamic Blickle riveting process
Wheel: PPN series
- high-quality polypropylene, impact resistant, hardness 60 Shore D, colour natural white
- high chemical resistance to many aggressive substances
- operating temperature: -20 °C to +60 °C, reduced load capacity over +30 °C
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.
- Product data
- CAD data not available
| Part Number |
Standard Unit Price
| Minimum order quantity | Volume Discount | Caster Type | Mounting Height H (mm) | Load Range (daN) | Wheel Characteristics | Plate Length L (mm) | Wheel Dia. D (mm) | Wheel Width B (mm) | Bearing type | Product type | Total height (mm) | Weight (g) | Wheel diameter (mm) | Wheel width (mm) | Load capacity at 4 km/h (kg) | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
28.50 € | 1 | 7 Days | Plate Type Swivel / Screw-In Type / Through Hole Type / Rotation Type | 125 | 35.01 to 80.00 | - | 70 | 100 | 32 | plain bore | swivel castor | 80 | 428 | 60 | 29 | 80 | ||
26.82 € | 1 | 7 Days | Plate Type Swivel / Screw-In Type / Through Hole Type / Rotation Type | 125 | 80.01 to 140.00 | Conductivity | 70 | 100 | 32 | plain bore | swivel castor | 102 | 428 | 80 | 32 | 120 | ||
33.73 € | 1 | 7 Days | Plate Type Swivel / Screw-In Type / Through Hole Type / Rotation Type | 150 | 80.01 to 140.00 | - | 70 | 125 | 32 | plain bore | swivel castor | 102 | 464 | 80 | 32 | 120 | ||
38.25 € | 1 | 7 Days | Plate Type Swivel / Screw-In Type / Through Hole Type / Rotation Type | 150 | 80.01 to 140.00 | Conductivity | 70 | 125 | 32 | plain bore | swivel castor with brake | 102 | 534 | 80 | 32 | 120 | ||
45.15 € | 1 | 7 Days | Plate Type Swivel / Screw-In Type / Through Hole Type / Rotation Type | 150 | 80.01 to 140.00 | - | 70 | 125 | 32 | plain bore | swivel castor with brake | 102 | 568 | 80 | 32 | 120 | ||
30.07 € | 1 | 7 Days | Plate Type Swivel / Screw-In Type / Through Hole Type / Rotation Type | 150 | 80.01 to 140.00 | Conductivity | 70 | 125 | 32 | roller bearing | swivel castor | 102 | 446 | 80 | 32 | 120 | ||
36.97 € | 1 | 7 Days | Plate Type Swivel / Screw-In Type / Through Hole Type / Rotation Type | 150 | 80.01 to 140.00 | - | 70 | 125 | 32 | roller bearing | swivel castor | 102 | 486 | 80 | 32 | 120 | ||
41.49 € | 1 | 7 Days | Plate Type Swivel / Screw-In Type / Through Hole Type / Rotation Type | 150 | 80.01 to 140.00 | - | 70 | 125 | 32 | roller bearing | swivel castor with brake | 102 | 556 | 80 | 32 | 120 | ||
48.38 € | 1 | 7 Days | Plate Type Swivel / Screw-In Type / Through Hole Type / Rotation Type | 150 | 80.01 to 140.00 | Conductivity | 70 | 125 | 32 | roller bearing | swivel castor with brake | 102 | 593 | 80 | 32 | 120 | ||
30.58 € | 1 | 7 Days | Plate Type Swivel / Screw-In Type / Resin / Through Hole Type / Rotation Type | 190 | 140.01 to 220.00 | - | 70 | 150 | 50 | plain bore | swivel castor | 125 | 514 | 100 | 37 | 150 | ||
39.37 € | 1 | 7 Days | Plate Type Swivel / Screw-In Type / Resin / Through Hole Type / Rotation Type | 190 | 140.01 to 220.00 | - | 70 | 150 | 50 | plain bore | swivel castor | 125 | 594 | 100 | 37 | 150 | ||
42.83 € | 1 | 7 Days | Plate Type Swivel / Screw-In Type / Resin / Through Hole Type / Rotation Type | 190 | 140.01 to 220.00 | - | 70 | 150 | 50 | plain bore | swivel castor with brake | 125 | 630 | 100 | 37 | 150 | ||
51.60 € | 1 | 7 Days | Plate Type Swivel / Screw-In Type / Resin / Through Hole Type / Rotation Type | 190 | 140.01 to 220.00 | - | 70 | 150 | 50 | plain bore | swivel castor with brake | 125 | 702 | 100 | 37 | 150 | ||
33.91 € | 1 | 7 Days | Plate Type Swivel / Screw-In Type / Resin / Through Hole Type / Rotation Type | 190 | 140.01 to 220.00 | - | 70 | 150 | 50 | roller bearing | swivel castor | 125 | 545 | 100 | 37 | 150 | ||
42.70 € | 1 | 7 Days | Plate Type Swivel / Screw-In Type / Resin / Through Hole Type / Rotation Type | 235 | 140.01 to 220.00 | - | 70 | 200 | 50 | roller bearing | swivel castor | 125 | 633 | 100 | 37 | 150 | ||
46.17 € | 1 | 7 Days | Plate Type Swivel / Screw-In Type / Resin / Through Hole Type / Rotation Type | 235 | 140.01 to 220.00 | - | 70 | 200 | 50 | roller bearing | swivel castor with brake | 125 | 669 | 100 | 37 | 150 | ||
54.95 € | 1 | 7 Days | Plate Type Swivel / Screw-In Type / Resin / Through Hole Type / Rotation Type | 235 | 140.01 to 220.00 | - | 70 | 200 | 50 | roller bearing | swivel castor with brake | 125 | 742 | 100 | 37 | 150 | ||
33.15 € | 1 | 7 Days | Plate Type Swivel / Screw-In Type / Resin / Through Hole Type / Rotation Type | 235 | 140.01 to 220.00 | - | 70 | 200 | 50 | plain bore | swivel castor | 150 | 601 | 125 | 40 | 150 | ||
42.83 € | 1 | 7 Days | Plate Type Swivel / Screw-In Type / Resin / Through Hole Type / Rotation Type | 235 | 140.01 to 220.00 | - | 70 | 200 | 50 | plain bore | swivel castor | 150 | 740 | 125 | 40 | 150 | ||
47.66 € | 1 | 7 Days | Plate Type Swivel / Screw-In Type / Resin / Through Hole Type / Rotation Type | 235 | 140.01 to 220.00 | - | 70 | 200 | 50 | plain bore | swivel castor with brake | 150 | 732 | 125 | 40 | 150 | ||
57.35 € | 1 | 7 Days | Plate Type Swivel / Screw-In Type / Resin / Through Hole Type / Rotation Type | 235 | 140.01 to 220.00 | - | 70 | 200 | 50 | plain bore | swivel castor with brake | 150 | 889 | 125 | 40 | 150 | ||
36.75 € | 1 | 7 Days | Plate Type Swivel / Screw-In Type / Resin / Through Hole Type / Rotation Type | 235 | 140.01 to 220.00 | - | 70 | 200 | 50 | roller bearing | swivel castor | 150 | 626 | 125 | 40 | 150 | ||
46.44 € | 1 | 7 Days | Plate Type Swivel / Screw-In Type / Resin / Through Hole Type / Rotation Type | 80 | 140.01 to 220.00 | - | 70 | 60 | 29 | roller bearing | swivel castor | 150 | 778 | 125 | 40 | 150 | ||
51.27 € | 1 | 7 Days | Plate Type Swivel / Screw-In Type / Resin / Through Hole Type / Rotation Type | 102 | 140.01 to 220.00 | - | 70 | 80 | 32 | roller bearing | swivel castor with brake | 150 | 764 | 125 | 40 | 150 | ||
60.95 € | 1 | 7 Days | Plate Type Swivel / Screw-In Type / Resin / Through Hole Type / Rotation Type | 102 | 140.01 to 220.00 | - | 70 | 80 | 32 | roller bearing | swivel castor with brake | 150 | 927 | 125 | 40 | 150 | ||
59.32 € | 1 | 7 Days | Plate Type Swivel / Screw-In Type / Resin / Through Hole Type / Rotation Type | 102 | 220.01 to 320.00 | - | 88 | 80 | 32 | plain bore | swivel castor | 190 | 1313 | 150 | 50 | 300 | ||
70.35 € | 1 | 7 Days | Plate Type Swivel / Screw-In Type / Resin / Through Hole Type / Rotation Type | 102 | 220.01 to 320.00 | - | 88 | 80 | 32 | plain bore | swivel castor | 190 | 1528 | 150 | 50 | 300 | ||
86.26 € | 1 | 7 Days | Plate Type Swivel / Screw-In Type / Resin / Through Hole Type / Rotation Type | 102 | 220.01 to 320.00 | - | 88 | 80 | 32 | plain bore | swivel castor with brake | 190 | 1703 | 150 | 50 | 300 | ||
97.32 € | 1 | 7 Days | Plate Type Swivel / Screw-In Type / Resin / Through Hole Type / Rotation Type | 102 | 220.01 to 320.00 | - | 88 | 80 | 32 | plain bore | swivel castor with brake | 190 | 1936 | 150 | 50 | 300 | ||
64.90 € | 1 | 7 Days | Plate Type Swivel / Screw-In Type / Resin / Through Hole Type / Rotation Type | 102 | 220.01 to 320.00 | - | 88 | 80 | 32 | roller bearing | swivel castor | 190 | 1384 | 150 | 50 | 300 | ||
75.93 € | 1 | 7 Days | Plate Type Swivel / Screw-In Type / Resin / Through Hole Type / Rotation Type | 102 | 220.01 to 320.00 | - | 88 | 80 | 32 | roller bearing | swivel castor | 190 | 1627 | 150 | 50 | 300 | ||
91.86 € | 1 | 7 Days | Plate Type Swivel / Screw-In Type / Through Hole Type / Rotation Type | 125 | 220.01 to 320.00 | - | 88 | 100 | 32 | roller bearing | swivel castor with brake | 190 | 1782 | 150 | 50 | 300 | ||
102.90 € | 1 | 7 Days | Plate Type Swivel / Screw-In Type / Through Hole Type / Rotation Type | 125 | 220.01 to 320.00 | Conductivity | 88 | 100 | 32 | roller bearing | swivel castor with brake | 190 | 2035 | 150 | 50 | 300 | ||
78.03 € | 1 | 7 Days | Plate Type Swivel / Screw-In Type / Through Hole Type / Rotation Type | 125 | 220.01 to 320.00 | - | 88 | 100 | 32 | plain bore | swivel castor | 235 | 1576 | 200 | 50 | 300 | ||
91.17 € | 1 | 7 Days | Plate Type Swivel / Screw-In Type / Through Hole Type / Rotation Type | 125 | 220.01 to 320.00 | Conductivity | 88 | 100 | 32 | plain bore | swivel castor | 235 | 2035 | 200 | 50 | 300 | ||
111.38 € | 1 | 7 Days | Plate Type Swivel / Screw-In Type / Through Hole Type / Rotation Type | 125 | 220.01 to 320.00 | - | 88 | 100 | 32 | plain bore | swivel castor with brake | 235 | 2061 | 200 | 50 | 300 | ||
124.50 € | 1 | 7 Days | Plate Type Swivel / Screw-In Type / Through Hole Type / Rotation Type | 125 | 220.01 to 320.00 | - | 88 | 100 | 32 | plain bore | swivel castor with brake | 235 | 2479 | 200 | 50 | 300 | ||
87.13 € | 1 | 7 Days | Plate Type Swivel / Screw-In Type / Through Hole Type / Rotation Type | 125 | 220.01 to 320.00 | Conductivity | 88 | 100 | 32 | roller bearing | swivel castor | 235 | 1665 | 200 | 50 | 300 | ||
100.27 € | 1 | 7 Days | Plate Type Swivel / Screw-In Type / Through Hole Type / Rotation Type | 125 | 220.01 to 320.00 | - | 88 | 100 | 32 | roller bearing | swivel castor | 235 | 2123 | 200 | 50 | 300 | ||
120.47 € | 1 | 7 Days | Plate Type Swivel / Screw-In Type / Through Hole Type / Rotation Type | 125 | 220.01 to 320.00 | Conductivity | 88 | 100 | 32 | roller bearing | swivel castor with brake | 235 | 2147 | 200 | 50 | 300 | ||
133.60 € | 1 | 7 Days | Plate Type Swivel / Screw-In Type / Through Hole Type / Rotation Type | 125 | 220.01 to 320.00 | Conductivity | 88 | 100 | 32 | roller bearing | swivel castor with brake | 235 | 2567 | 200 | 50 | 300 |
Loading...
Basic information
| Wheel Material | Engineering Plastics | Material (details) | Tread material: Synthetic, Wheel body material: high-quality polypropylene | Material | Synthetic |
|---|---|---|---|---|---|
| Suitable for autoclaves | no | Mounting type | bolt hole | Tread and tyre hardness | 60 Shore D |
| Tread color | natural white | Wheel body color | natural white | Tread hydrolysis-resistant | no |
| Non-staining | yes | Rustproof | no | Non-marking | yes |
| Maximum temperature resistance(°C) | 60 | Minimum temperature resistance(°C) | -20 |
Configure
Basic Attributes
-
Caster Type
- Plate Type Swivel
- Screw-In Type
- Resin
- Through Hole Type
- Rotation Type
-
Mounting Height H(mm)
-
Load Range(daN)
- 35.01 to 80.00
- 80.01 to 140.00
- 140.01 to 220.00
- 220.01 to 320.00
-
Wheel Characteristics
- Conductivity
-
Plate Length L(mm)
-
Wheel Dia. D(mm)
-
Wheel Width B(mm)
-
Bearing type
- plain bore
- roller bearing
-
Product type
- swivel castor
- swivel castor with brake
-
Total height(mm)
-
Weight(g)
-
Wheel diameter(mm)
-
Wheel width(mm)
-
Load capacity at 4 km/h(kg)
-
Type
- LER-PPN
Filter by standard shipping days
-
- All
- 7 Days or Less
Optional Attributes
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
