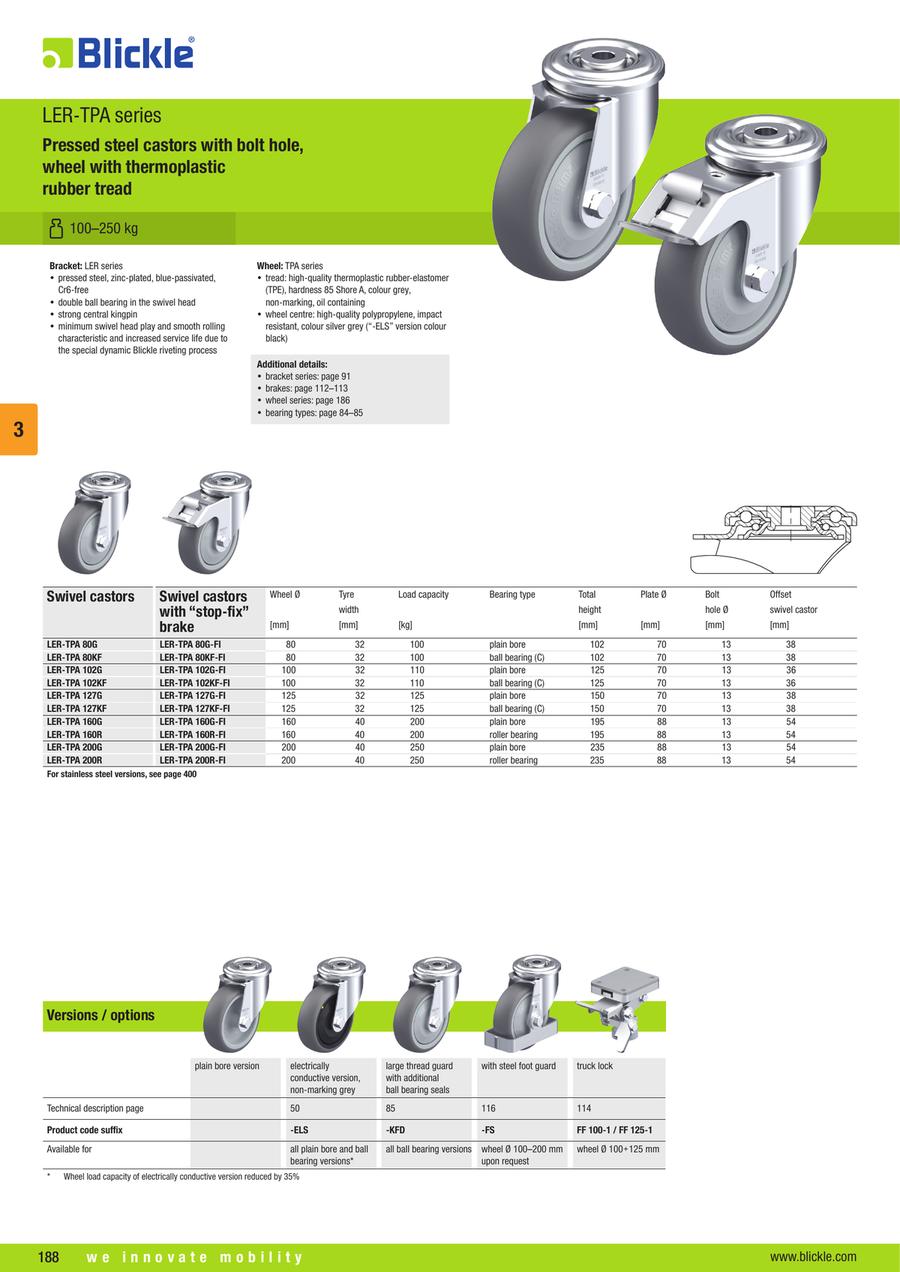

Pressed Steel Swivel Castor, LER-TPA Series
Bracket: LER series
- pressed steel, zinc-plated, blue-passivated, Cr6-free
- double ball bearing in the swivel head
- strong central kingpin
- minimum swivel head play and smooth rolling characteristic and increased service life due to the special dynamic Blickle riveting process
Wheel: TPA series
- tread: high-quality thermoplastic rubber-elastomer (TPE), hardness 85 Shore A, colour grey, non-marking, oil containing
- wheel centre: high-quality polypropylene, impact resistant, colour silver grey
- very high chemical resistance to many aggressive substances
- operating temperature: -20 °C to +60 °C, reduced load capacity over +30 °C
- tread contains oil, may stain sensitive surfaces. alternatives: series VPA, VPP, POES, POEV, PATH
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.
- Product data
- CAD data not available
| Part Number |
Standard Unit Price
| Minimum order quantity | Volume Discount | Mounting Height H (mm) | Load Range (daN) | Wheel Characteristics | Plate Length L (mm) | Wheel Dia. D (mm) | Wheel Width B (mm) | Bearing type | Product type | Total height (mm) | Weight (g) | Wheel diameter (mm) | Wheel width (mm) | Wheel body color | Load capacity at 4 km/h (kg) | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
26.13 € | 1 | 5 Days | 125 | 80.01 to 140.00 | - | 70 | 100 | 30 | plain bore | swivel castor | 102 | 450 | 80 | 32 | silver grey | 100 | ||
31.59 € | 1 | 7 Days | 125 | 35.01 to 80.00 | - | 70 | 100 | 30 | plain bore | swivel castor | 102 | 464 | 80 | 32 | black | 65 | ||
38.91 € | 1 | 5 Days | 125 | 80.01 to 140.00 | - | 70 | 100 | 30 | plain bore | swivel castor with brake | 102 | 561 | 80 | 32 | silver grey | 100 | ||
44.35 € | 1 | 7 Days | 125 | 35.01 to 80.00 | - | 70 | 100 | 30 | plain bore | swivel castor with brake | 102 | 570 | 80 | 32 | black | 65 | ||
30.40 € | 1 | 5 Days | 125 | 80.01 to 140.00 | - | 70 | 100 | 30 | Ball bearing (C) | swivel castor | 102 | 496 | 80 | 32 | silver grey | 100 | ||
35.83 € | 1 | 7 Days | 150 | 35.01 to 80.00 | - | 70 | 125 | 38 | Ball bearing (C) | swivel castor | 102 | 500 | 80 | 32 | black | 65 | ||
42.88 € | 1 | 5 Days | 150 | 80.01 to 140.00 | Conductivity | 70 | 125 | 38 | Ball bearing (C) | swivel castor with brake | 102 | 600 | 80 | 32 | silver grey | 100 | ||
48.32 € | 1 | 7 Days | 150 | 35.01 to 80.00 | Conductivity | 70 | 125 | 38 | Ball bearing (C) | swivel castor with brake | 102 | 611 | 80 | 32 | black | 65 | ||
34.70 € | 1 | 7 Days | 150 | 80.01 to 140.00 | - | - | 125 | 38 | Ball bearing (C) | swivel castor | 102 | 505 | 80 | 32 | silver grey | 100 | ||
40.14 € | 1 | 7 Days | 150 | 35.01 to 80.00 | Conductivity | - | 125 | 38 | Ball bearing (C) | swivel castor | 102 | 500 | 80 | 32 | black | 65 | ||
47.19 € | 1 | 7 Days | 150 | 80.01 to 140.00 | Conductivity | 70 | 125 | 38 | Ball bearing (C) | swivel castor with brake | 102 | 609 | 80 | 32 | silver grey | 100 | ||
52.62 € | 1 | 7 Days | 150 | 35.01 to 80.00 | - | 70 | 125 | 38 | Ball bearing (C) | swivel castor with brake | 102 | 611 | 80 | 32 | black | 65 | ||
28.46 € | 1 | 5 Days | 150 | 80.01 to 140.00 | - | 70 | 125 | 32 | plain bore | swivel castor | 125 | 526 | 100 | 32 | silver grey | 110 | ||
36.74 € | 1 | 7 Days | 150 | 35.01 to 80.00 | Conductivity | 70 | 125 | 32 | plain bore | swivel castor | 125 | 540 | 100 | 32 | black | 70 | ||
42.08 € | 1 | 5 Days | 150 | 80.01 to 140.00 | Conductivity | 70 | 125 | 32 | plain bore | swivel castor with brake | 125 | 645 | 100 | 32 | silver grey | 110 | ||
50.33 € | 1 | 7 Days | 150 | 35.01 to 80.00 | - | 70 | 125 | 32 | plain bore | swivel castor with brake | 125 | 657 | 100 | 32 | black | 70 | ||
35.30 € | 1 | 5 Days | 150 | 80.01 to 140.00 | Conductivity | 70 | 125 | 32 | Ball bearing (C) | swivel castor | 125 | 578 | 100 | 32 | silver grey | 110 | ||
43.56 € | 1 | 7 Days | 195 | 35.01 to 80.00 | - | 70 | 160 | 40 | Ball bearing (C) | swivel castor | 125 | 581 | 100 | 32 | black | 70 | ||
48.60 € | 1 | 5 Days | 195 | 80.01 to 140.00 | - | 70 | 160 | 40 | Ball bearing (C) | swivel castor with brake | 125 | 684 | 100 | 32 | silver grey | 110 | ||
56.86 € | 1 | 7 Days | 235 | 35.01 to 80.00 | - | 70 | 200 | 40 | Ball bearing (C) | swivel castor with brake | 125 | 699 | 100 | 32 | black | 70 | ||
39.60 € | 1 | 7 Days | 195 | 80.01 to 140.00 | - | - | 160 | 40 | Ball bearing (C) | swivel castor | 125 | 580 | 100 | 32 | silver grey | 110 | ||
47.87 € | 1 | 7 Days | 195 | 35.01 to 80.00 | Conductivity | - | 160 | 40 | Ball bearing (C) | swivel castor | 125 | 592 | 100 | 32 | black | 70 | ||
52.92 € | 1 | 7 Days | 195 | 80.01 to 140.00 | - | - | 160 | 40 | Ball bearing (C) | swivel castor with brake | 125 | 691 | 100 | 32 | silver grey | 110 | ||
61.18 € | 1 | 7 Days | 195 | 35.01 to 80.00 | Conductivity | - | 160 | 40 | Ball bearing (C) | swivel castor with brake | 125 | 712 | 100 | 32 | black | 70 | ||
32.83 € | 1 | 7 Days | 235 | 80.01 to 140.00 | Conductivity | 70 | 200 | 40 | plain bore | swivel castor | 150 | 600 | 125 | 32 | silver grey | 125 | ||
41.55 € | 1 | 7 Days | 235 | 35.01 to 80.00 | - | 70 | 200 | 40 | plain bore | swivel castor | 150 | 624 | 125 | 32 | black | 80 | ||
48.72 € | 1 | 7 Days | 235 | 80.01 to 140.00 | Conductivity | 70 | 200 | 40 | plain bore | swivel castor with brake | 150 | 734 | 125 | 32 | silver grey | 125 | ||
57.43 € | 1 | 7 Days | 235 | 35.01 to 80.00 | - | 70 | 200 | 40 | plain bore | swivel castor with brake | 150 | 754 | 125 | 32 | black | 80 | ||
38.91 € | 1 | 7 Days | 235 | 80.01 to 140.00 | - | 70 | 200 | 40 | Ball bearing (C) | swivel castor | 150 | 651 | 125 | 32 | silver grey | 125 | ||
47.63 € | 1 | 7 Days | 102 | 35.01 to 80.00 | - | 70 | 80 | 32 | Ball bearing (C) | swivel castor | 150 | 683 | 125 | 32 | black | 80 | ||
54.48 € | 1 | 7 Days | 102 | 80.01 to 140.00 | - | 70 | 80 | 32 | Ball bearing (C) | swivel castor with brake | 150 | 800 | 125 | 32 | silver grey | 125 | ||
63.20 € | 1 | 7 Days | 102 | 35.01 to 80.00 | Conductivity | 70 | 80 | 32 | Ball bearing (C) | swivel castor with brake | 150 | 819 | 125 | 32 | black | 80 | ||
43.22 € | 1 | 7 Days | 102 | 80.01 to 140.00 | - | - | 80 | 32 | Ball bearing (C) | swivel castor | 150 | 648 | 125 | 32 | silver grey | 125 | ||
51.93 € | 1 | 7 Days | 102 | 35.01 to 80.00 | Conductivity | - | 80 | 32 | Ball bearing (C) | swivel castor | 150 | 676 | 125 | 32 | black | 80 | ||
58.80 € | 1 | 7 Days | 102 | 80.01 to 140.00 | - | - | 80 | 32 | Ball bearing (C) | swivel castor with brake | 150 | 792 | 125 | 32 | silver grey | 125 | ||
67.50 € | 1 | 7 Days | 102 | 35.01 to 80.00 | Conductivity | - | 80 | 32 | Ball bearing (C) | swivel castor with brake | 150 | 825 | 125 | 32 | black | 80 | ||
79.37 € | 1 | 7 Days | 102 | 140.01 to 220.00 | - | 88 | 80 | 32 | plain bore | swivel castor | 195 | 1366 | 160 | 40 | silver grey | 200 | ||
108.80 € | 1 | 7 Days | 102 | 80.01 to 140.00 | Conductivity | 88 | 80 | 32 | plain bore | swivel castor | 195 | 1400 | 160 | 40 | black | 130 | ||
107.52 € | 1 | 7 Days | 102 | 140.01 to 220.00 | Conductivity | 88 | 80 | 32 | plain bore | swivel castor with brake | 195 | 1752 | 160 | 40 | silver grey | 200 | ||
136.95 € | 1 | 7 Days | 102 | 80.01 to 140.00 | - | 88 | 80 | 32 | plain bore | swivel castor with brake | 195 | 1796 | 160 | 40 | black | 130 | ||
90.48 € | 1 | 7 Days | 102 | 140.01 to 220.00 | Conductivity | 88 | 80 | 32 | roller bearing | swivel castor | 195 | 1452 | 160 | 40 | silver grey | 200 | ||
118.63 € | 1 | 7 Days | 125 | 140.01 to 220.00 | - | 88 | 100 | 30 | roller bearing | swivel castor with brake | 195 | 1876 | 160 | 40 | silver grey | 200 | ||
84.34 € | 1 | 7 Days | 125 | 220.01 to 320.00 | Conductivity | 88 | 100 | 30 | plain bore | swivel castor | 235 | 1582 | 200 | 40 | silver grey | 250 | ||
122.37 € | 1 | 7 Days | 125 | 140.01 to 220.00 | Conductivity | 88 | 100 | 30 | plain bore | swivel castor | 235 | 1639 | 200 | 40 | black | 160 | ||
118.85 € | 1 | 7 Days | 125 | 220.01 to 320.00 | - | 88 | 100 | 30 | plain bore | swivel castor with brake | 235 | 2060 | 200 | 40 | silver grey | 250 | ||
156.89 € | 1 | 7 Days | 125 | 140.01 to 220.00 | - | 88 | 100 | 30 | plain bore | swivel castor with brake | 235 | 2080 | 200 | 40 | black | 160 | ||
98.22 € | 1 | 7 Days | 125 | 220.01 to 320.00 | Conductivity | 88 | 100 | 30 | roller bearing | swivel castor | 235 | 1678 | 200 | 40 | silver grey | 250 | ||
132.73 € | 1 | 7 Days | 125 | 220.01 to 320.00 | Conductivity | 88 | 100 | 30 | roller bearing | swivel castor with brake | 235 | 2155 | 200 | 40 | silver grey | 250 |
Loading...
Basic information
| Caster Type | Plate Type Swivel / Screw-In Type / Through Hole Type / Rotation Type | Wheel Material | Engineering Plastics | Material (details) | Tread material: Rubber, Wheel body material: high-quality polypropylene |
|---|---|---|---|---|---|
| Material | Rubber | Suitable for autoclaves | no | Mounting type | bolt hole |
| Tread and tyre hardness | 85 Shore A | Tread color | grey | Tread hydrolysis-resistant | no |
| Non-staining | no | Rustproof | no | Non-marking | yes |
| Maximum temperature resistance(°C) | 60 | Minimum temperature resistance(°C) | -20 |
Configure
Basic Attributes
-
Mounting Height H(mm)
-
Load Range(daN)
- 35.01 to 80.00
- 80.01 to 140.00
- 140.01 to 220.00
- 220.01 to 320.00
-
Wheel Characteristics
- Conductivity
-
Plate Length L(mm)
-
Wheel Dia. D(mm)
-
Wheel Width B(mm)
-
Bearing type
- Ball bearing (C)
- plain bore
- roller bearing
-
Product type
- swivel castor
- swivel castor with brake
-
Total height(mm)
-
Weight(g)
-
Wheel diameter(mm)
-
Wheel width(mm)
-
Wheel body color
-
Load capacity at 4 km/h(kg)
-
Type
- LER-TPA
Filter by standard shipping days
-
- All
- 5 Days or Less
- 7 Days or Less
Optional Attributes
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
