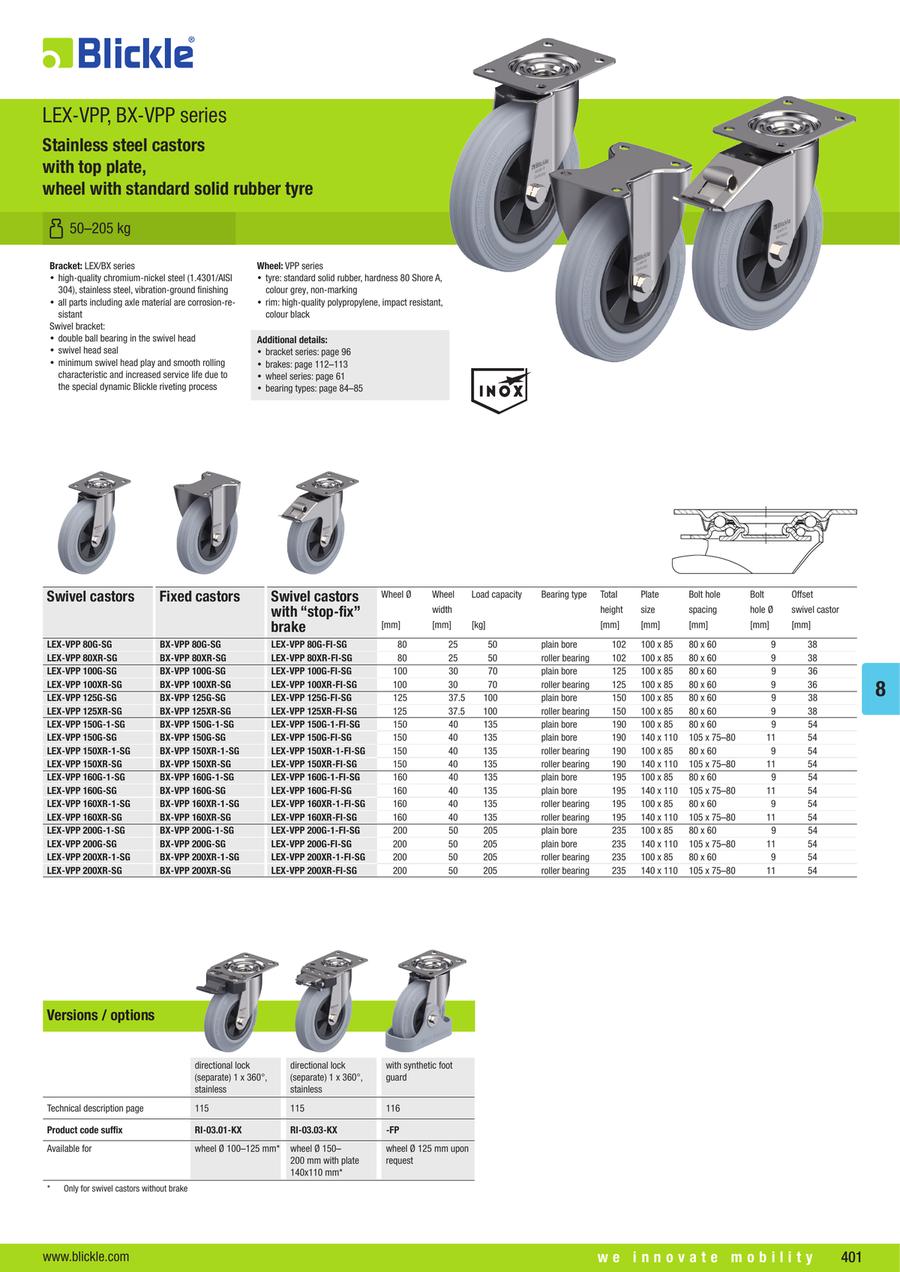

Stainless Steel Swivel Castor, LEX-VPP Series
Bracket: LEX series
- high-quality chromium-nickel steel (1.4301/AISI 304), stainless steel, vibration-ground finishing
- all parts including axle material are corrosion-resistant
- double ball bearing in the swivel head
- swivel head seal
- minimum swivel head play and smooth rolling characteristic and increased service life due to the special dynamic Blickle riveting process
Wheel: VPP series
- tyre: standard solid rubber, hardness 80 Shore A, colour grey, non-marking
- rim: high-quality polypropylene, impact resistant, colour black
- high chemical resistance to many aggressive substances, except oils
- operating temperature: -20 °C to +60 °C, reduced load capacity over +30 °C
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.
- Product data
- CAD data not available
| Part Number |
Standard Unit Price
| Minimum order quantity | Volume Discount | Caster Type | Mounting Height H (mm) | Load Range (daN) | Wheel Characteristics | Plate Length L (mm) | Plate Width W (mm) | Wheel Dia. D (mm) | Wheel Width B (mm) | Bearing type | Product type | Total height (mm) | Weight (g) | Wheel diameter (mm) | Wheel width (mm) | Load capacity at 4 km/h (kg) | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
90.00 € | 1 | 5 Days | Plate Type Swivel / Screw-In Type / Resin / Through Hole Type / Rotation Type | 195 | 35.01 to 80.00 | Conductivity | 100 | 85 | 160 | 50 | plain bore | swivel castor with brake | 102 | 600 | 80 | 25 | 50 | ||
65.72 € | 1 | 7 Days | Plate Type Swivel / Screw-In Type / Resin / Through Hole Type / Rotation Type | 235 | 35.01 to 80.00 | - | 100 | 85 | 200 | 50 | plain bore | swivel castor | 102 | 511 | 80 | 25 | 50 | ||
92.48 € | 1 | 7 Days | Plate Type Swivel / Screw-In Type / Resin / Through Hole Type / Rotation Type | 235 | 35.01 to 80.00 | Conductivity | 100 | 85 | 200 | 50 | roller bearing | swivel castor with brake | 102 | 631 | 80 | 25 | 50 | ||
71.88 € | 1 | 7 Days | Plate Type Swivel / Screw-In Type / Resin / Through Hole Type / Rotation Type | 235 | 35.01 to 80.00 | - | 100 | 85 | 200 | 50 | roller bearing | swivel castor | 102 | 532 | 80 | 25 | 50 | ||
88.88 € | 1 | 5 Days | Plate Type Swivel / Screw-In Type / Through Hole Type / Rotation Type | 195 | 35.01 to 80.00 | - | 100 | 85 | 160 | 40 | plain bore | swivel castor with brake | 125 | 748 | 100 | 30 | 70 | ||
70.25 € | 1 | 7 Days | Plate Type Swivel / Screw-In Type / Through Hole Type / Rotation Type | 195 | 35.01 to 80.00 | - | 100 | 85 | 160 | 40 | plain bore | swivel castor | 125 | 641 | 100 | 30 | 70 | ||
96.02 € | 1 | 5 Days | Plate Type Swivel / Screw-In Type / Through Hole Type / Rotation Type | 195 | 35.01 to 80.00 | - | 100 | 85 | 160 | 40 | roller bearing | swivel castor with brake | 125 | 799 | 100 | 30 | 70 | ||
77.40 € | 1 | 7 Days | Plate Type Swivel / Screw-In Type / Through Hole Type / Rotation Type | 195 | 35.01 to 80.00 | - | 100 | 85 | 160 | 40 | roller bearing | swivel castor | 125 | 670 | 100 | 30 | 70 | ||
98.68 € | 1 | 5 Days | Plate Type Swivel / Screw-In Type / Through Hole Type / Rotation Type | 195 | 80.01 to 140.00 | - | 100 | 85 | 160 | 40 | plain bore | swivel castor with brake | 150 | 1020 | 125 | 38 | 100 | ||
78.83 € | 1 | 5 Days | Plate Type Swivel / Screw-In Type / Through Hole Type / Rotation Type | 235 | 80.01 to 140.00 | - | 100 | 85 | 200 | 50 | plain bore | swivel castor | 150 | 877 | 125 | 38 | 100 | ||
104.15 € | 1 | 5 Days | Plate Type Swivel / Screw-In Type / Through Hole Type / Rotation Type | 235 | 80.01 to 140.00 | - | 100 | 85 | 200 | 50 | roller bearing | swivel castor with brake | 150 | 1030 | 125 | 38 | 100 | ||
84.30 € | 1 | 7 Days | Plate Type Swivel / Screw-In Type / Through Hole Type / Rotation Type | 235 | 80.01 to 140.00 | - | 100 | 85 | 200 | 50 | roller bearing | swivel castor | 150 | 940 | 125 | 38 | 100 | ||
198.24 € | 1 | 7 Days | Plate Type Swivel / Screw-In Type / Through Hole Type / Rotation Type | 235 | 80.01 to 140.00 | - | 100 | 85 | 200 | 50 | plain bore | swivel castor with brake | 190 | 1887 | 150 | 40 | 135 | ||
143.60 € | 1 | 7 Days | Plate Type Swivel / Screw-In Type / Through Hole Type / Rotation Type | 235 | 80.01 to 140.00 | - | 100 | 85 | 200 | 50 | plain bore | swivel castor | 190 | 1520 | 150 | 40 | 135 | ||
195.05 € | 1 | 7 Days | Plate Type Swivel / Screw-In Type / Through Hole Type / Rotation Type | 235 | 80.01 to 140.00 | - | 140 | 110 | 200 | 50 | plain bore | swivel castor with brake | 190 | 1997 | 150 | 40 | 135 | ||
153.15 € | 1 | 7 Days | Plate Type Swivel / Screw-In Type / Through Hole Type / Rotation Type | 235 | 80.01 to 140.00 | - | 140 | 110 | 200 | 50 | plain bore | swivel castor | 190 | 1638 | 150 | 40 | 135 | ||
208.64 € | 1 | 7 Days | Plate Type Swivel / Screw-In Type / Through Hole Type / Rotation Type | 235 | 80.01 to 140.00 | - | 100 | 85 | 200 | 50 | roller bearing | swivel castor with brake | 190 | 1987 | 150 | 40 | 135 | ||
154.00 € | 1 | 7 Days | Plate Type Swivel / Screw-In Type / Through Hole Type / Rotation Type | 102 | 80.01 to 140.00 | - | 100 | 85 | 80 | 25 | roller bearing | swivel castor | 190 | 1606 | 150 | 40 | 135 | ||
205.43 € | 1 | 7 Days | Plate Type Swivel / Screw-In Type / Through Hole Type / Rotation Type | 102 | 80.01 to 140.00 | - | 140 | 110 | 80 | 25 | roller bearing | swivel castor with brake | 190 | 2098 | 150 | 40 | 135 | ||
163.55 € | 1 | 7 Days | Plate Type Swivel / Screw-In Type / Through Hole Type / Rotation Type | 102 | 80.01 to 140.00 | - | 140 | 110 | 80 | 25 | roller bearing | swivel castor | 190 | 1733 | 150 | 40 | 135 | ||
199.18 € | 1 | 7 Days | Plate Type Swivel / Screw-In Type / Through Hole Type / Rotation Type | 102 | 80.01 to 140.00 | - | 140 | 110 | 80 | 25 | plain bore | swivel castor with brake | 195 | 2002 | 160 | 40 | 135 | ||
144.55 € | 1 | 7 Days | Plate Type Swivel / Screw-In Type / Resin / Through Hole Type / Rotation Type | 125 | 80.01 to 140.00 | - | 100 | 85 | 100 | 37 | plain bore | swivel castor | 195 | 1636 | 160 | 40 | 135 | ||
195.98 € | 1 | 7 Days | Plate Type Swivel / Screw-In Type / Resin / Through Hole Type / Rotation Type | 125 | 80.01 to 140.00 | Conductivity | 140 | 110 | 100 | 37 | plain bore | swivel castor with brake | 195 | 2100 | 160 | 40 | 135 | ||
154.10 € | 1 | 7 Days | Plate Type Swivel / Screw-In Type / Resin / Through Hole Type / Rotation Type | 125 | 80.01 to 140.00 | - | 140 | 110 | 100 | 37 | plain bore | swivel castor | 195 | 1730 | 160 | 40 | 135 | ||
209.55 € | 1 | 7 Days | Plate Type Swivel / Screw-In Type / Resin / Through Hole Type / Rotation Type | 125 | 80.01 to 140.00 | Conductivity | 100 | 85 | 100 | 37 | roller bearing | swivel castor with brake | 195 | 2096 | 160 | 40 | 135 | ||
154.92 € | 1 | 7 Days | Plate Type Swivel / Screw-In Type / Resin / Through Hole Type / Rotation Type | 150 | 80.01 to 140.00 | - | 100 | 85 | 125 | 40 | roller bearing | swivel castor | 195 | 1743 | 160 | 40 | 135 | ||
206.37 € | 1 | 7 Days | Plate Type Swivel / Screw-In Type / Resin / Through Hole Type / Rotation Type | 150 | 80.01 to 140.00 | Conductivity | 140 | 110 | 125 | 40 | roller bearing | swivel castor with brake | 195 | 2190 | 160 | 40 | 135 | ||
164.47 € | 1 | 7 Days | Plate Type Swivel / Screw-In Type / Resin / Through Hole Type / Rotation Type | 150 | 80.01 to 140.00 | - | 140 | 110 | 125 | 40 | roller bearing | swivel castor | 195 | 1826 | 160 | 40 | 135 | ||
240.28 € | 1 | 7 Days | Plate Type Swivel / Screw-In Type / Resin / Through Hole Type / Rotation Type | 150 | 140.01 to 220.00 | Conductivity | 140 | 110 | 125 | 40 | plain bore | swivel castor with brake | 235 | 2709 | 200 | 50 | 205 | ||
173.15 € | 1 | 7 Days | Plate Type Swivel / Screw-In Type / Resin / Through Hole Type / Rotation Type | 190 | 140.01 to 220.00 | - | 100 | 85 | 150 | 50 | plain bore | swivel castor | 235 | 2293 | 200 | 50 | 205 | ||
226.01 € | 1 | 7 Days | Plate Type Swivel / Screw-In Type / Resin / Through Hole Type / Rotation Type | 190 | 140.01 to 220.00 | Conductivity | 140 | 110 | 150 | 50 | plain bore | swivel castor with brake | 235 | 2876 | 200 | 50 | 205 | ||
180.28 € | 1 | 7 Days | Plate Type Swivel / Screw-In Type / Resin / Through Hole Type / Rotation Type | 190 | 140.01 to 220.00 | - | 140 | 110 | 150 | 50 | plain bore | swivel castor | 235 | 2440 | 200 | 50 | 205 | ||
249.21 € | 1 | 7 Days | Plate Type Swivel / Screw-In Type / Resin / Through Hole Type / Rotation Type | 190 | 140.01 to 220.00 | Conductivity | 100 | 85 | 150 | 50 | roller bearing | swivel castor with brake | 235 | 2806 | 200 | 50 | 205 | ||
182.08 € | 1 | 7 Days | Plate Type Swivel / Screw-In Type / Resin / Through Hole Type / Rotation Type | 195 | 140.01 to 220.00 | - | 100 | 85 | 160 | 50 | roller bearing | swivel castor | 235 | 2424 | 200 | 50 | 205 | ||
234.95 € | 1 | 7 Days | Plate Type Swivel / Screw-In Type / Resin / Through Hole Type / Rotation Type | 195 | 140.01 to 220.00 | Conductivity | 140 | 110 | 160 | 50 | roller bearing | swivel castor with brake | 235 | 2836 | 200 | 50 | 205 | ||
189.21 € | 1 | 7 Days | Plate Type Swivel / Screw-In Type / Resin / Through Hole Type / Rotation Type | 195 | 140.01 to 220.00 | - | 140 | 110 | 160 | 50 | roller bearing | swivel castor | 235 | 2571 | 200 | 50 | 205 |
Loading...
Basic information
| Wheel Material | Engineering Plastics | Material (details) | Tread material: Rubber, Wheel body material: high-quality polypropylene | Material | Rubber |
|---|---|---|---|---|---|
| Suitable for autoclaves | no | Mounting type | top plate | Tread and tyre hardness | 80 Shore A |
| Tread color | grey | Wheel body color | black | Tread hydrolysis-resistant | no |
| Non-staining | yes | Rustproof | yes | Non-marking | yes |
| Maximum temperature resistance(°C) | 70 | Minimum temperature resistance(°C) | -20 |
Configure
Basic Attributes
-
Caster Type
- Plate Type Swivel
- Screw-In Type
- Resin
- Through Hole Type
- Rotation Type
-
Mounting Height H(mm)
-
Load Range(daN)
- 35.01 to 80.00
- 80.01 to 140.00
- 140.01 to 220.00
-
Wheel Characteristics
- Conductivity
-
Plate Length L(mm)
-
Plate Width W(mm)
-
Wheel Dia. D(mm)
-
Wheel Width B(mm)
-
Bearing type
- plain bore
- roller bearing
-
Product type
- swivel castor
- swivel castor with brake
-
Total height(mm)
-
Weight(g)
-
Wheel diameter(mm)
-
Wheel width(mm)
-
Load capacity at 4 km/h(kg)
-
Type
- LEX-VPP
Filter by standard shipping days
-
- All
- 5 Days or Less
- 7 Days or Less
Optional Attributes
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
