BLICKLE

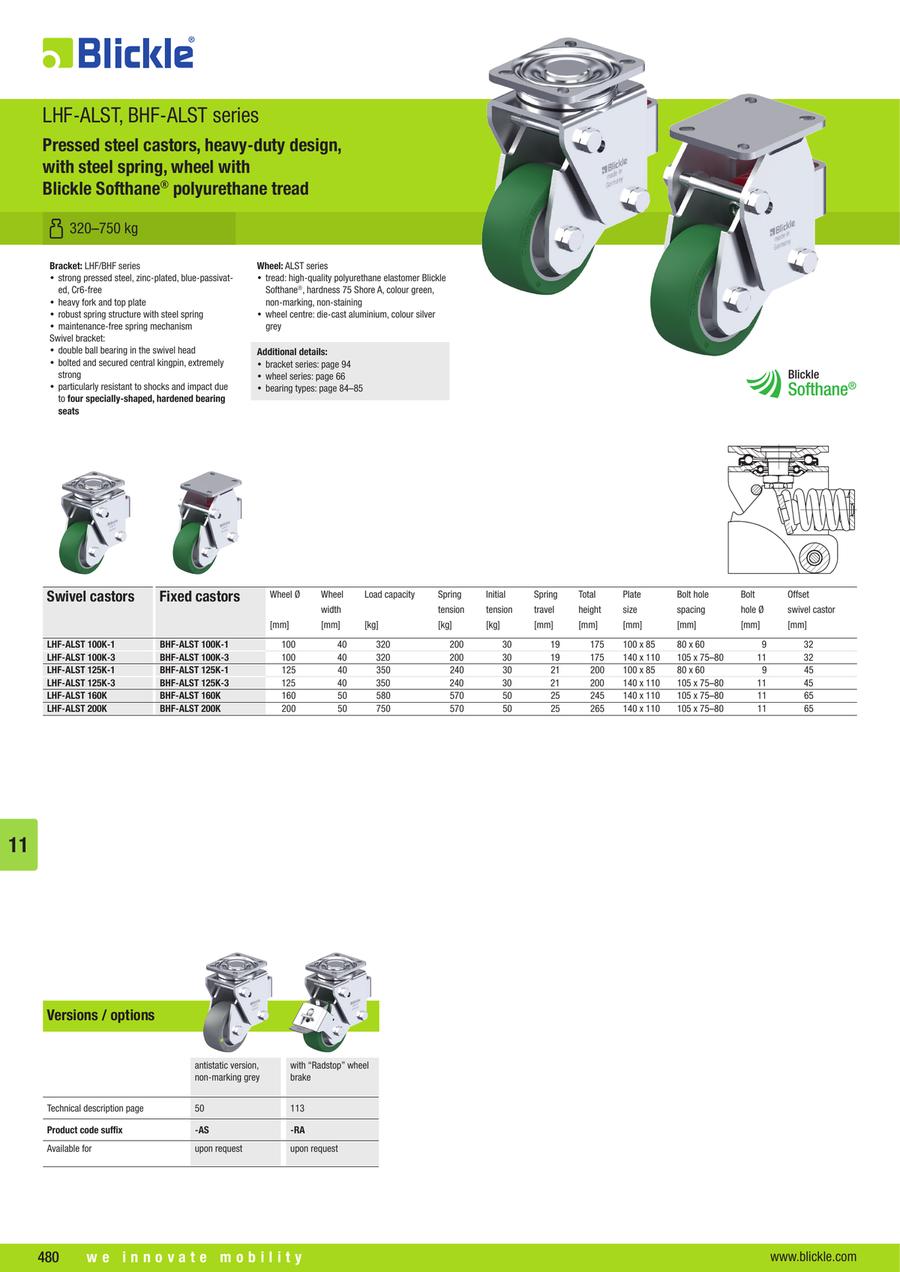

Pressed Steel Swivel Castor, LHF-ALST Series

Pressed Steel Swivel Castor, LHF-ALST Series

Part number:

Still undefined. 6 possible part numbers found.
Quantity:

Part number list

Number of items
  • 1
    • Part number
    LHF-ALST 100K-1
    LHF-ALST 100K-3
    LHF-ALST 125K-1
    LHF-ALST 125K-3
    LHF-ALST 160K
    LHF-ALST 200K

    Mounting Height H

    (mm)

    Load Range

    (daN)

    Wheel Characteristics

    Plate Length L

    (mm)

    Plate Width W

    (mm)

    Wheel Dia. D

    (mm)

    Wheel Width B

    (mm)

    Total height

    (mm)

    Weight

    (g)

    Wheel diameter

    (mm)

    Wheel width

    (mm)

    Load capacity at 4 km/h

    (kg)

    		Minimum order quantity
    200
    220.01 to 320.00
    Antistatic
    100
    85
    125
    40
    175
    3700
    100
    40
    320
    1 pieces
    200
    220.01 to 320.00
    -
    140
    110
    125
    40
    175
    4064
    100
    40
    320
    1 pieces
    200
    320.01 to 485.00
    -
    100
    85
    125
    40
    200
    3902
    125
    40
    350
    1 pieces
    245
    320.01 to 485.00
    -
    140
    110
    160
    50
    200
    4190
    125
    40
    350
    1 pieces
    245
    485.01 to 750.00
    Antistatic
    140
    110
    160
    50
    245
    7600
    160
    50
    580
    1 pieces
    245
    485.01 to 750.00
    Antistatic
    140
    110
    160
    50
    265
    8250
    200
    50
    750
    1 pieces
    Unit price (excluding VAT)(Unit price including VAT)
    Standard shipping days
    298.65 €
    ( 355.39 € )
    7 working days
    311.30 €
    ( 370.45 € )
    7 working days
    312.93 €
    ( 372.39 € )
    7 working days
    321.06 €
    ( 382.06 € )
    7 working days
    481.05 €
    ( 572.45 € )
    7 working days
    517.65 €
    ( 616.00 € )
    7 working days
  • 1

    • More Information

    Basic information

    Pressed Steel Swivel Castor, Heavy Duty Design, with Steel Spring, Heavy Duty Wheel, with Blickle Softhane® Polyurethane Tread, with Aluminium Wheel Centre

    Bracket: LHF series

    • strong pressed steel, zinc-plated, blue-passivated, Cr6-free
    • heavy fork and top plate
    • robust spring structure with steel spring
    • maintenance-free spring mechanism
    • double ball bearing in the swivel head
    • bolted and secured central kingpin, extremely strong
    • particularly resistant to shocks and impact due to four specially-shaped, hardened bearing seats

    Wheel: ALST series

    • tread: high-quality polyurethane elastomer Blickle Softhane®, hardness 75 Shore A, colour green, non-marking, non-staining
    • wheel centre: die-cast aluminium, colour silver grey

    Other features:

    • high chemical resistance to many aggressive substances
    • operating temperature: -20 °C to +70 °C, temporarily up to +90 °C, reduced load capacity over +40 °C
