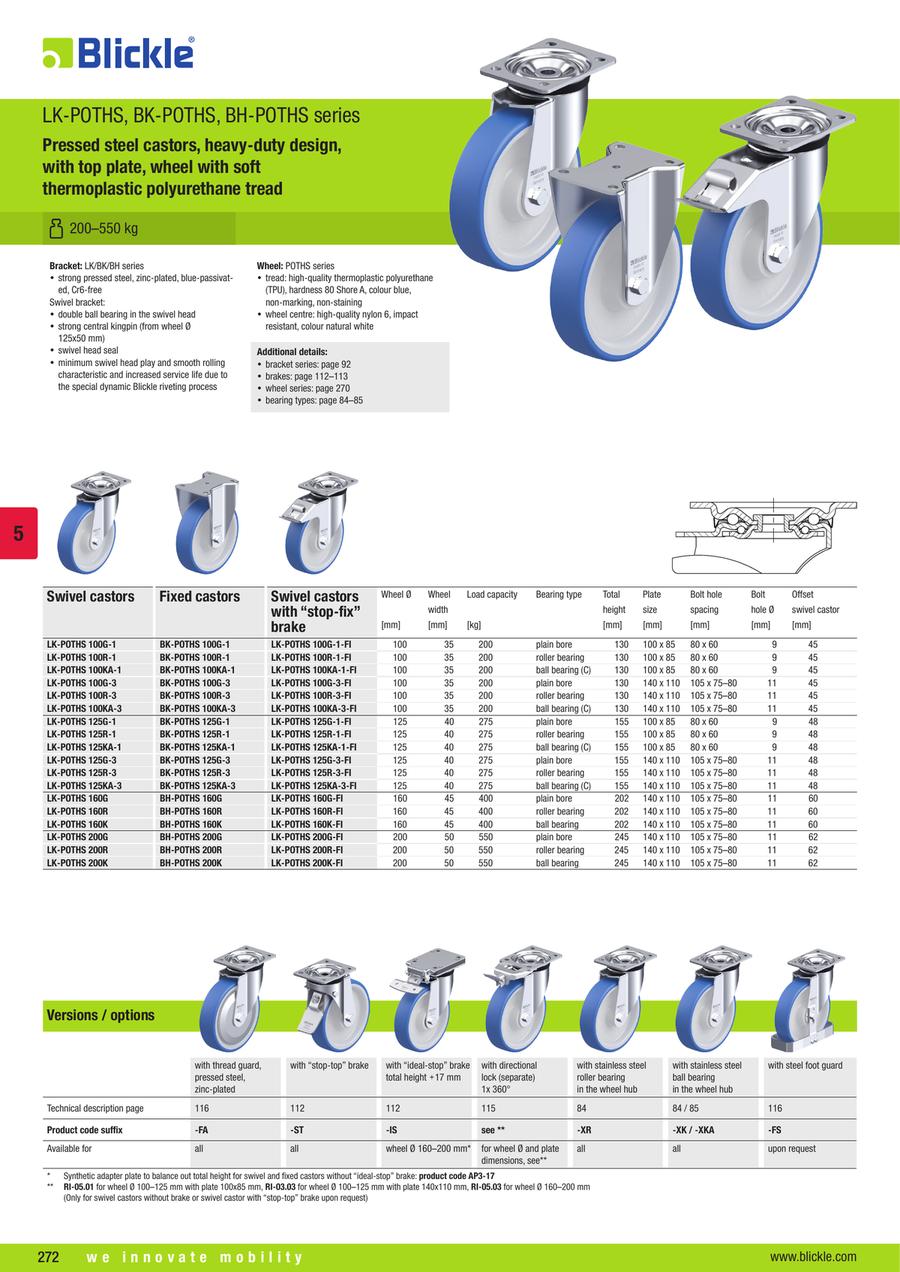

Pressed Steel Swivel Castor, LK-POTHS Series
Bracket: LK series
- strong pressed steel, zinc-plated, blue-passivated, Cr6-free
- double ball bearing in the swivel head
- strong central kingpin (from wheel Ø 125x50 mm)
- swivel head seal
- minimum swivel head play and smooth rolling characteristic and increased service life due to the special dynamic Blickle riveting process
Wheel: POTHS series
- tread: high-quality thermoplastic polyurethane (TPU), hardness 80 Shore A, colour blue, non-marking, non-staining
- wheel centre: high-quality nylon 6, impact resistant, colour natural white
- very high chemical resistance to many aggressive substances
- operating temperature: -25 °C to +70 °C, temporarily up to +90 °C, reduced load capacity over +35 °C
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.
- Product data
- CAD data not available
| Part Number |
Standard Unit Price
| Minimum order quantity | Volume Discount | Caster Type | Mounting Height H (mm) | Load Range (daN) | Wheel Characteristics | Plate Length L (mm) | Plate Width W (mm) | Wheel Dia. D (mm) | Wheel Width B (mm) | Bearing type | Product type | Total height (mm) | Weight (g) | Wheel diameter (mm) | Wheel width (mm) | Minimum temperature resistance (°C) | Load capacity at 4 km/h (kg) | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
57.20 € | 1 | 7 Days | Plate Type Swivel / Screw-In Type / Through Hole Type / Rotation Type | 130 | 140.01 to 220.00 | - | 100 | 85 | 100 | 35 | plain bore | swivel castor | 130 | 936 | 100 | 35 | -25 | 200 | ||
65.99 € | 1 | 23 Days | Plate Type Swivel / Screw-In Type / Through Hole Type / Rotation Type | 130 | 140.01 to 220.00 | - | 100 | 85 | 100 | 35 | plain bore | swivel castor | 130 | 1002 | 100 | 35 | -25 | 200 | ||
77.27 € | 1 | 7 Days | Plate Type Swivel / Screw-In Type / Through Hole Type / Rotation Type | 130 | 140.01 to 220.00 | - | 100 | 85 | 100 | 35 | plain bore | swivel castor with brake | 130 | 1170 | 100 | 35 | -25 | 200 | ||
86.03 € | 1 | 23 Days | Plate Type Swivel / Screw-In Type / Through Hole Type / Rotation Type | 130 | 140.01 to 220.00 | - | 100 | 85 | 100 | 35 | plain bore | swivel castor with brake | 130 | 1236 | 100 | 35 | -25 | 200 | ||
83.38 € | 1 | 7 Days | Plate Type Swivel / Screw-In Type / Through Hole Type / Rotation Type | 130 | 140.01 to 220.00 | - | 100 | 85 | 100 | 35 | plain bore | swivel castor with brake | 130 | 1205 | 100 | 35 | -25 | 200 | ||
92.17 € | 1 | 23 Days | Plate Type Swivel / Screw-In Type / Through Hole Type / Rotation Type | 130 | 140.01 to 220.00 | - | 100 | 85 | 100 | 35 | plain bore | swivel castor with brake | 130 | 1261 | 100 | 35 | -25 | 200 | ||
60.23 € | 1 | 7 Days | Plate Type Swivel / Screw-In Type / Through Hole Type / Rotation Type | 130 | 140.01 to 220.00 | - | 140 | 110 | 100 | 35 | plain bore | swivel castor | 130 | 1109 | 100 | 35 | -25 | 200 | ||
69.00 € | 1 | 7 Days | Plate Type Swivel / Screw-In Type / Through Hole Type / Rotation Type | 130 | 140.01 to 220.00 | - | 140 | 110 | 100 | 35 | plain bore | swivel castor | 130 | 1177 | 100 | 35 | -25 | 200 | ||
80.80 € | 1 | 7 Days | Plate Type Swivel / Screw-In Type / Through Hole Type / Rotation Type | 130 | 140.01 to 220.00 | - | 140 | 110 | 100 | 35 | plain bore | swivel castor with brake | 130 | 1346 | 100 | 35 | -25 | 200 | ||
89.58 € | 1 | 23 Days | Plate Type Swivel / Screw-In Type / Through Hole Type / Rotation Type | 130 | 140.01 to 220.00 | - | 140 | 110 | 100 | 35 | plain bore | swivel castor with brake | 130 | 1417 | 100 | 35 | -25 | 200 | ||
86.40 € | 1 | 7 Days | Plate Type Swivel / Screw-In Type / Through Hole Type / Rotation Type | 130 | 140.01 to 220.00 | - | 140 | 110 | 100 | 35 | plain bore | swivel castor with brake | 130 | 1320 | 100 | 35 | -25 | 200 | ||
95.19 € | 1 | 23 Days | Plate Type Swivel / Screw-In Type / Through Hole Type / Rotation Type | 130 | 140.01 to 220.00 | - | 140 | 110 | 100 | 35 | plain bore | swivel castor with brake | 130 | 1448 | 100 | 35 | -25 | 200 | ||
59.00 € | 1 | 7 Days | Plate Type Swivel / Screw-In Type / Through Hole Type / Rotation Type | 130 | 140.01 to 220.00 | - | 100 | 85 | 100 | 35 | Ball bearing (C) | swivel castor | 130 | 958 | 100 | 35 | -20 | 200 | ||
67.79 € | 1 | 7 Days | Plate Type Swivel / Screw-In Type / Through Hole Type / Rotation Type | 130 | 140.01 to 220.00 | - | 100 | 85 | 100 | 35 | Ball bearing (C) | swivel castor | 130 | 1026 | 100 | 35 | -20 | 200 | ||
79.06 € | 1 | 7 Days | Plate Type Swivel / Screw-In Type / Through Hole Type / Rotation Type | 130 | 140.01 to 220.00 | - | 100 | 85 | 100 | 35 | Ball bearing (C) | swivel castor with brake | 130 | 1192 | 100 | 35 | -20 | 200 | ||
87.85 € | 1 | 23 Days | Plate Type Swivel / Screw-In Type / Through Hole Type / Rotation Type | 130 | 140.01 to 220.00 | - | 100 | 85 | 100 | 35 | Ball bearing (C) | swivel castor with brake | 130 | 1252 | 100 | 35 | -20 | 200 | ||
85.18 € | 1 | 7 Days | Plate Type Swivel / Screw-In Type / Through Hole Type / Rotation Type | 130 | 140.01 to 220.00 | - | 100 | 85 | 100 | 35 | Ball bearing (C) | swivel castor with brake | 130 | 1224 | 100 | 35 | -20 | 200 | ||
93.97 € | 1 | 23 Days | Plate Type Swivel / Screw-In Type / Through Hole Type / Rotation Type | 130 | 140.01 to 220.00 | - | 100 | 85 | 100 | 35 | Ball bearing (C) | swivel castor with brake | 130 | 1274 | 100 | 35 | -20 | 200 | ||
62.03 € | 1 | 7 Days | Plate Type Swivel / Screw-In Type / Through Hole Type / Rotation Type | 130 | 140.01 to 220.00 | - | 140 | 110 | 100 | 35 | Ball bearing (C) | swivel castor | 130 | 1131 | 100 | 35 | -20 | 200 | ||
70.80 € | 1 | 7 Days | Plate Type Swivel / Screw-In Type / Through Hole Type / Rotation Type | 130 | 140.01 to 220.00 | - | 140 | 110 | 100 | 35 | Ball bearing (C) | swivel castor | 130 | 1199 | 100 | 35 | -20 | 200 | ||
82.62 € | 1 | 7 Days | Plate Type Swivel / Screw-In Type / Through Hole Type / Rotation Type | 130 | 140.01 to 220.00 | - | 140 | 110 | 100 | 35 | Ball bearing (C) | swivel castor with brake | 130 | 1368 | 100 | 35 | -20 | 200 | ||
91.40 € | 1 | 23 Days | Plate Type Swivel / Screw-In Type / Through Hole Type / Rotation Type | 130 | 140.01 to 220.00 | - | 140 | 110 | 100 | 35 | Ball bearing (C) | swivel castor with brake | 130 | 1428 | 100 | 35 | -20 | 200 | ||
88.20 € | 1 | 7 Days | Plate Type Swivel / Screw-In Type / Through Hole Type / Rotation Type | 130 | 140.01 to 220.00 | - | 140 | 110 | 100 | 35 | Ball bearing (C) | swivel castor with brake | 130 | 1402 | 100 | 35 | -20 | 200 | ||
96.99 € | 1 | 23 Days | Plate Type Swivel / Screw-In Type / Through Hole Type / Rotation Type | 130 | 140.01 to 220.00 | - | 140 | 110 | 100 | 35 | Ball bearing (C) | swivel castor with brake | 130 | 1447 | 100 | 35 | -20 | 200 | ||
58.92 € | 1 | 7 Days | Plate Type Swivel / Screw-In Type / Through Hole Type / Rotation Type | 130 | 140.01 to 220.00 | - | 100 | 85 | 100 | 35 | roller bearing | swivel castor | 130 | 957 | 100 | 35 | -25 | 200 | ||
67.70 € | 1 | 7 Days | Plate Type Swivel / Screw-In Type / Through Hole Type / Rotation Type | 130 | 140.01 to 220.00 | - | 100 | 85 | 100 | 35 | roller bearing | swivel castor | 130 | 1010 | 100 | 35 | -25 | 200 | ||
78.98 € | 1 | 7 Days | Plate Type Swivel / Screw-In Type / Through Hole Type / Rotation Type | 130 | 140.01 to 220.00 | - | 100 | 85 | 100 | 35 | roller bearing | swivel castor with brake | 130 | 1191 | 100 | 35 | -25 | 200 | ||
87.75 € | 1 | 23 Days | Plate Type Swivel / Screw-In Type / Through Hole Type / Rotation Type | 130 | 140.01 to 220.00 | - | 100 | 85 | 100 | 35 | roller bearing | swivel castor with brake | 130 | 1257 | 100 | 35 | -25 | 200 | ||
85.10 € | 1 | 7 Days | Plate Type Swivel / Screw-In Type / Through Hole Type / Rotation Type | 130 | 140.01 to 220.00 | - | 100 | 85 | 100 | 35 | roller bearing | swivel castor with brake | 130 | 1228 | 100 | 35 | -25 | 200 | ||
93.88 € | 1 | 23 Days | Plate Type Swivel / Screw-In Type / Through Hole Type / Rotation Type | 130 | 140.01 to 220.00 | - | 100 | 85 | 100 | 35 | roller bearing | swivel castor with brake | 130 | 1282 | 100 | 35 | -25 | 200 | ||
61.95 € | 1 | 7 Days | Plate Type Swivel / Screw-In Type / Through Hole Type / Rotation Type | 130 | 140.01 to 220.00 | - | 140 | 110 | 100 | 35 | roller bearing | swivel castor | 130 | 1130 | 100 | 35 | -25 | 200 | ||
70.72 € | 1 | 7 Days | Plate Type Swivel / Screw-In Type / Through Hole Type / Rotation Type | 130 | 140.01 to 220.00 | - | 140 | 110 | 100 | 35 | roller bearing | swivel castor | 130 | 1200 | 100 | 35 | -25 | 200 | ||
82.52 € | 1 | 7 Days | Plate Type Swivel / Screw-In Type / Through Hole Type / Rotation Type | 130 | 140.01 to 220.00 | - | 140 | 110 | 100 | 35 | roller bearing | swivel castor with brake | 130 | 1367 | 100 | 35 | -25 | 200 | ||
91.30 € | 1 | 23 Days | Plate Type Swivel / Screw-In Type / Through Hole Type / Rotation Type | 130 | 140.01 to 220.00 | - | 140 | 110 | 100 | 35 | roller bearing | swivel castor with brake | 130 | 1438 | 100 | 35 | -25 | 200 | ||
88.14 € | 1 | 7 Days | Plate Type Swivel / Screw-In Type / Through Hole Type / Rotation Type | 130 | 140.01 to 220.00 | - | 140 | 110 | 100 | 35 | roller bearing | swivel castor with brake | 130 | 1406 | 100 | 35 | -25 | 200 | ||
96.90 € | 1 | 23 Days | Plate Type Swivel / Screw-In Type / Through Hole Type / Rotation Type | 130 | 140.01 to 220.00 | - | 140 | 110 | 100 | 35 | roller bearing | swivel castor with brake | 130 | 1469 | 100 | 35 | -25 | 200 | ||
76.30 € | 1 | 7 Days | Plate Type Swivel / Screw-In Type / Through Hole Type / Rotation Type | 130 | 140.01 to 220.00 | - | 100 | 85 | 100 | 35 | Ball bearing (C) | swivel castor | 130 | 958 | 100 | 35 | -20 | 200 | ||
85.09 € | 1 | 7 Days | Plate Type Swivel / Screw-In Type / Through Hole Type / Rotation Type | 130 | 140.01 to 220.00 | - | 100 | 85 | 100 | 35 | Ball bearing (C) | swivel castor | 130 | 1026 | 100 | 35 | -20 | 200 | ||
96.38 € | 1 | 7 Days | Plate Type Swivel / Screw-In Type / Through Hole Type / Rotation Type | 130 | 140.01 to 220.00 | - | 100 | 85 | 100 | 35 | Ball bearing (C) | swivel castor with brake | 130 | 1192 | 100 | 35 | -20 | 200 | ||
105.15 € | 1 | 23 Days | Plate Type Swivel / Screw-In Type / Through Hole Type / Rotation Type | 130 | 140.01 to 220.00 | - | 100 | 85 | 100 | 35 | Ball bearing (C) | swivel castor with brake | 130 | 1252 | 100 | 35 | -20 | 200 | ||
102.48 € | 1 | 7 Days | Plate Type Swivel / Screw-In Type / Through Hole Type / Rotation Type | 130 | 140.01 to 220.00 | - | 100 | 85 | 100 | 35 | Ball bearing (C) | swivel castor with brake | 130 | 1224 | 100 | 35 | -20 | 200 | ||
111.27 € | 1 | 23 Days | Plate Type Swivel / Screw-In Type / Through Hole Type / Rotation Type | 155 | 140.01 to 220.00 | - | 100 | 85 | 125 | 40 | Ball bearing (C) | swivel castor with brake | 130 | 1274 | 100 | 35 | -20 | 200 | ||
79.33 € | 1 | 7 Days | Plate Type Swivel / Screw-In Type / Through Hole Type / Rotation Type | 155 | 140.01 to 220.00 | - | 140 | 110 | 125 | 40 | Ball bearing (C) | swivel castor | 130 | 1131 | 100 | 35 | -20 | 200 | ||
88.10 € | 1 | 7 Days | Plate Type Swivel / Screw-In Type / Through Hole Type / Rotation Type | 155 | 140.01 to 220.00 | - | 140 | 110 | 125 | 40 | Ball bearing (C) | swivel castor | 130 | 1199 | 100 | 35 | -20 | 200 | ||
99.92 € | 1 | 7 Days | Plate Type Swivel / Screw-In Type / Through Hole Type / Rotation Type | 155 | 140.01 to 220.00 | - | 140 | 110 | 125 | 40 | Ball bearing (C) | swivel castor with brake | 130 | 1368 | 100 | 35 | -20 | 200 | ||
108.70 € | 1 | 23 Days | Plate Type Swivel / Screw-In Type / Through Hole Type / Rotation Type | 155 | 140.01 to 220.00 | - | 140 | 110 | 125 | 40 | Ball bearing (C) | swivel castor with brake | 130 | 1428 | 100 | 35 | -20 | 200 | ||
105.52 € | 1 | 7 Days | Plate Type Swivel / Screw-In Type / Through Hole Type / Rotation Type | 155 | 140.01 to 220.00 | - | 140 | 110 | 125 | 40 | Ball bearing (C) | swivel castor with brake | 130 | 1402 | 100 | 35 | -20 | 200 | ||
114.29 € | 1 | 23 Days | Plate Type Swivel / Screw-In Type / Through Hole Type / Rotation Type | 155 | 140.01 to 220.00 | - | 140 | 110 | 125 | 40 | Ball bearing (C) | swivel castor with brake | 130 | 1447 | 100 | 35 | -20 | 200 | ||
62.65 € | 1 | 7 Days | Plate Type Swivel / Screw-In Type / Through Hole Type / Rotation Type | 155 | 140.01 to 220.00 | - | 100 | 85 | 125 | 40 | roller bearing | swivel castor | 130 | 957 | 100 | 35 | -20 | 200 | ||
71.44 € | 1 | 7 Days | Plate Type Swivel / Screw-In Type / Through Hole Type / Rotation Type | 155 | 140.01 to 220.00 | - | 100 | 85 | 125 | 40 | roller bearing | swivel castor | 130 | 1025 | 100 | 35 | -20 | 200 | ||
82.72 € | 1 | 7 Days | Plate Type Swivel / Screw-In Type / Through Hole Type / Rotation Type | 155 | 140.01 to 220.00 | - | 100 | 85 | 125 | 40 | roller bearing | swivel castor with brake | 130 | 1191 | 100 | 35 | -20 | 200 | ||
91.50 € | 1 | 23 Days | Plate Type Swivel / Screw-In Type / Through Hole Type / Rotation Type | 155 | 140.01 to 220.00 | - | 100 | 85 | 125 | 40 | roller bearing | swivel castor with brake | 130 | 1249 | 100 | 35 | -20 | 200 | ||
88.83 € | 1 | 23 Days | Plate Type Swivel / Screw-In Type / Through Hole Type / Rotation Type | 155 | 140.01 to 220.00 | - | 100 | 85 | 125 | 40 | roller bearing | swivel castor with brake | 130 | 1223 | 100 | 35 | -20 | 200 | ||
97.62 € | 1 | 23 Days | Plate Type Swivel / Screw-In Type / Through Hole Type / Rotation Type | 155 | 140.01 to 220.00 | - | 100 | 85 | 125 | 40 | roller bearing | swivel castor with brake | 130 | 1271 | 100 | 35 | -20 | 200 | ||
65.68 € | 1 | 7 Days | Plate Type Swivel / Screw-In Type / Through Hole Type / Rotation Type | 155 | 140.01 to 220.00 | - | 140 | 110 | 125 | 40 | roller bearing | swivel castor | 130 | 1130 | 100 | 35 | -20 | 200 | ||
74.45 € | 1 | 7 Days | Plate Type Swivel / Screw-In Type / Through Hole Type / Rotation Type | 155 | 140.01 to 220.00 | - | 140 | 110 | 125 | 40 | roller bearing | swivel castor | 130 | 1198 | 100 | 35 | -20 | 200 | ||
86.25 € | 1 | 7 Days | Plate Type Swivel / Screw-In Type / Through Hole Type / Rotation Type | 155 | 140.01 to 220.00 | - | 140 | 110 | 125 | 40 | roller bearing | swivel castor with brake | 130 | 1367 | 100 | 35 | -20 | 200 | ||
95.03 € | 1 | 23 Days | Plate Type Swivel / Screw-In Type / Through Hole Type / Rotation Type | 155 | 140.01 to 220.00 | - | 140 | 110 | 125 | 40 | roller bearing | swivel castor with brake | 130 | 1425 | 100 | 35 | -20 | 200 | ||
91.86 € | 1 | 7 Days | Plate Type Swivel / Screw-In Type / Through Hole Type / Rotation Type | 155 | 140.01 to 220.00 | - | 140 | 110 | 125 | 40 | roller bearing | swivel castor with brake | 130 | 1401 | 100 | 35 | -20 | 200 | ||
100.64 € | 1 | 23 Days | Plate Type Swivel / Screw-In Type / Through Hole Type / Rotation Type | 155 | 140.01 to 220.00 | - | 140 | 110 | 125 | 40 | roller bearing | swivel castor with brake | 130 | 1444 | 100 | 35 | -20 | 200 |
Loading...
Basic information
| Wheel Material | Engineering Plastics | Material (details) | Tread material: Polyurethane, Wheel body material: high-quality nylon 6 | Material | Polyurethane |
|---|---|---|---|---|---|
| Suitable for autoclaves | no | Mounting type | top plate | Tread and tyre hardness | 80 Shore A |
| Tread color | blue | Wheel body color | natural white | Tread hydrolysis-resistant | no |
| Non-staining | yes | Rustproof | no | Non-marking | yes |
| Maximum temperature resistance(°C) | 70 |
Configure
Basic Attributes
-
Caster Type
- Plate Type Swivel
- Screw-In Type
- Resin
- Through Hole Type
- Rotation Type
-
Mounting Height H(mm)
-
Load Range(daN)
- 140.01 to 220.00
- 220.01 to 320.00
- 320.01 to 485.00
- 485.01 to 750.00
-
Wheel Characteristics
- Conductivity
-
Plate Length L(mm)
-
Plate Width W(mm)
-
Wheel Dia. D(mm)
-
Wheel Width B(mm)
-
Bearing type
- Ball bearing
- Ball bearing (C)
- plain bore
- roller bearing
-
Product type
- swivel castor
- swivel castor with brake
-
Total height(mm)
-
Weight(g)
- 934
- 936
- 957
- 958
- 1002
- 1010
- 1025
- 1026
- 1109
- 1121
- 1130
- 1131
- 1135
- 1143
- 1147
- 1170
- 1177
- 1191
- 1192
- 1198
- 1199
- 1200
- 1205
- 1207
- 1223
- 1224
- 1228
- 1236
- 1239
- 1242
- 1249
- 1251
- 1252
- 1257
- 1261
- 1267
- 1271
- 1274
- 1282
- 1301
- 1310
- 1314
- 1319
- 1320
- 1323
- 1346
- 1363
- 1364
- 1367
- 1368
- 1369
- 1372
- 1381
- 1385
- 1391
- 1398
- 1401
- 1402
- 1406
- 1410
- 1411
- 1414
- 1417
- 1423
- 1425
- 1428
- 1430
- 1438
- 1443
- 1444
- 1447
- 1448
- 1456
- 1459
- 1466
- 1469
- 1478
- 1487
- 1490
- 1497
- 1534
- 1540
- 1543
- 1552
- 1555
- 1556
- 1585
- 1588
- 1595
- 1597
- 1621
- 1627
- 1630
- 1637
- 1657
- 1667
- 1669
- 1670
- 1677
- 1694
- 2490
- 2536
- 2540
- 2672
- 2700
- 2704
- 2740
- 2750
- 2908
- 2923
- 2967
- 3000
- 3003
- 3016
- 3061
- 3074
- 3098
- 3157
- 3161
- 3171
- 3178
- 3184
- 3226
- 3229
- 3233
- 3250
- 3281
- 3287
- 3300
- 3322
- 3325
- 3333
- 3368
- 3372
- 3381
- 3385
- 3490
- 3522
- 3532
- 3547
- 3580
- 3602
- 3624
- 3626
- 3711
- 3722
- 3770
- 3778
- 3789
- 3794
- 3809
- 3820
- 3832
- 3840
- 3844
- 3881
- 3883
- 3887
- 3895
- 3910
- 3991
- 3993
- 3994
- 4004
- 4046
- 4091
- 4156
- 4158
- 4162
- 4323
- 4359
- 4372
- 4420
- 4455
- 4520
- 4620
- 4631
-
Wheel diameter(mm)
-
Wheel width(mm)
-
Minimum temperature resistance(°C)
- -25
- -20
-
Load capacity at 4 km/h(kg)
-
Type
- LK-POTHS
Filter by standard shipping days
-
- All
- 7 Days or Less
- 23 Days or Less
Optional Attributes
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
