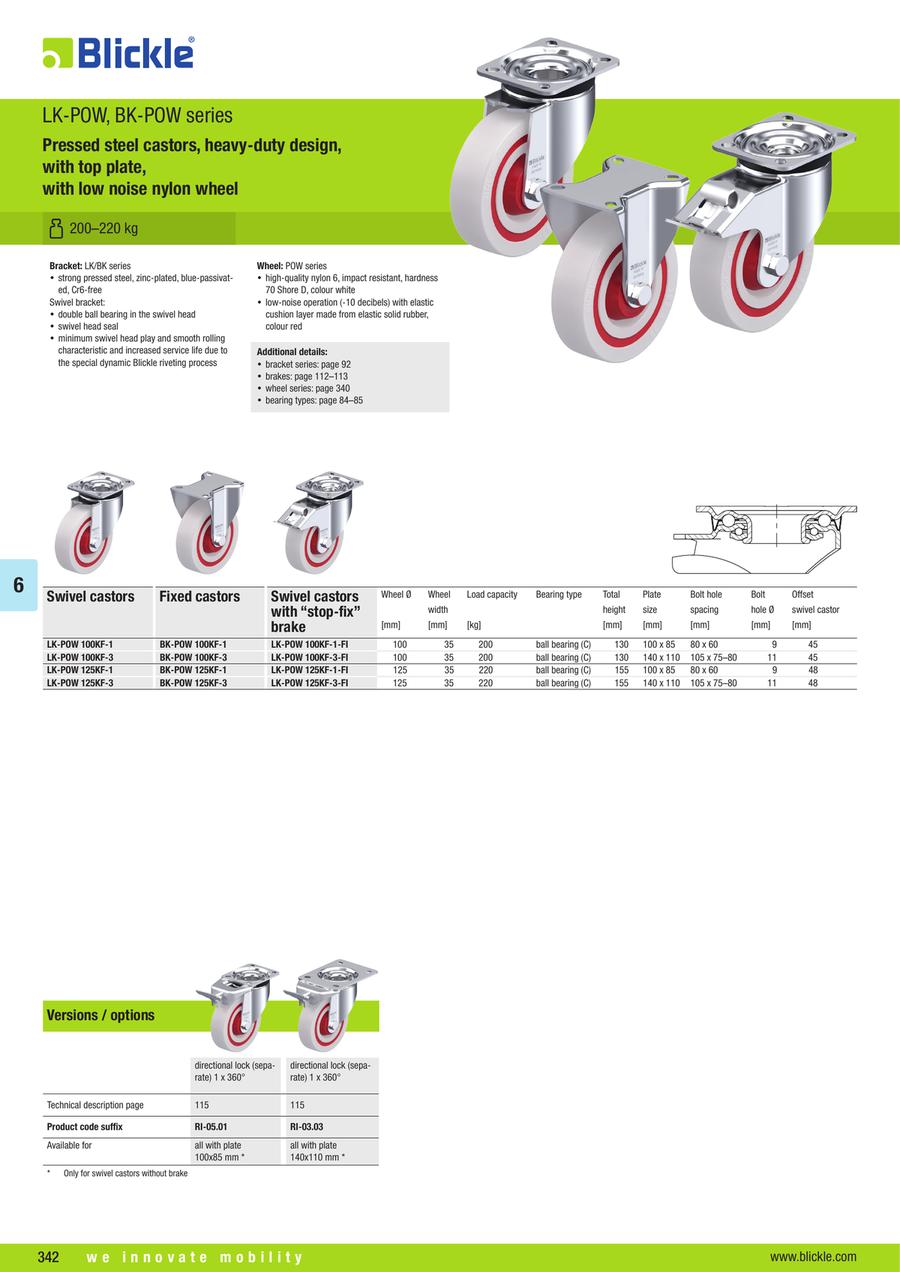

Pressed Steel Swivel Castor, LK-POW Series
Bracket: LK series
- strong pressed steel, zinc-plated, blue-passivated, Cr6-free
- double ball bearing in the swivel head
- strong central kingpin (from wheel Ø 125x50 mm)
- swivel head seal
- minimum swivel head play and smooth rolling characteristic and increased service life due to the special dynamic Blickle riveting process
Wheel: POW series
- high-quality nylon 6, impact resistant, hardness 70 Shore D, colour white
- low-noise operation (-10 decibels) with elastic cushion layer made from elastic solid rubber, colour red
- with synthetic thread guard, large
- high chemical resistance to many aggressive substances
- operating temperature: -20 °C to +80 °C, reduced load capacity over +35 °C
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.
- Product data
- CAD data not available
Part Number
|
|---|
| LK-POW 100KF-1 |
| LK-POW 100KF-1-FI |
| LK-POW 100KF-3 |
| LK-POW 100KF-3-FI |
| LK-POW 125KF-1 |
| LK-POW 125KF-1-FI |
| LK-POW 125KF-3 |
| LK-POW 125KF-3-FI |
| Part Number |
Standard Unit Price
| Minimum order quantity | Volume Discount | Mounting Height H (mm) | Wheel Characteristics | Plate Length L (mm) | Plate Width W (mm) | Wheel Dia. D (mm) | Product type | Total height (mm) | Weight (g) | Wheel diameter (mm) | Load capacity at 4 km/h (kg) | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
51.41 € | 1 | 7 Days | 161 | - | 100 | 85 | 125 | swivel castor | 130 | 1034 | 100 | 200 | ||
71.49 € | 1 | 7 Days | 161 | Conductivity | 100 | 85 | 125 | swivel castor with brake | 130 | 1260 | 100 | 200 | ||
54.43 € | 1 | 7 Days | 161 | - | 140 | 110 | 125 | swivel castor | 130 | 1200 | 100 | 200 | ||
75.03 € | 1 | 7 Days | 161 | Conductivity | 140 | 110 | 125 | swivel castor with brake | 130 | 1465 | 100 | 200 | ||
55.97 € | 1 | 7 Days | 161 | Conductivity | 100 | 85 | 125 | swivel castor | 155 | 1211 | 125 | 220 | ||
76.18 € | 1 | 7 Days | 161 | - | 100 | 85 | 125 | swivel castor with brake | 155 | 1430 | 125 | 220 | ||
58.73 € | 1 | 7 Days | 161 | Conductivity | 140 | 110 | 125 | swivel castor | 155 | 1380 | 125 | 220 | ||
79.34 € | 1 | 7 Days | 111 | - | 140 | 110 | 80 | swivel castor with brake | 155 | 1610 | 125 | 220 |
Loading...
Basic information
| Caster Type | Plate Type Swivel / Screw-In Type / Through Hole Type / Rotation Type | Load Range(daN) | 140.01 to 220.00 | Wheel Material | Engineering Plastics |
|---|---|---|---|---|---|
| Wheel Width B(mm) | 32 | Bearing type | Ball bearing (C) | Material (details) | Tread material: Synthetic, Wheel body material: high-quality nylon 6 |
| Material | Synthetic | Wheel width(mm) | 35 | Suitable for autoclaves | no |
| Mounting type | top plate | Tread and tyre hardness | 70 Shore D | Tread color | white |
| Wheel body color | red | Tread hydrolysis-resistant | no | Non-staining | yes |
| Rustproof | no | Non-marking | yes | Maximum temperature resistance(°C) | 70 |
| Minimum temperature resistance(°C) | -20 |
