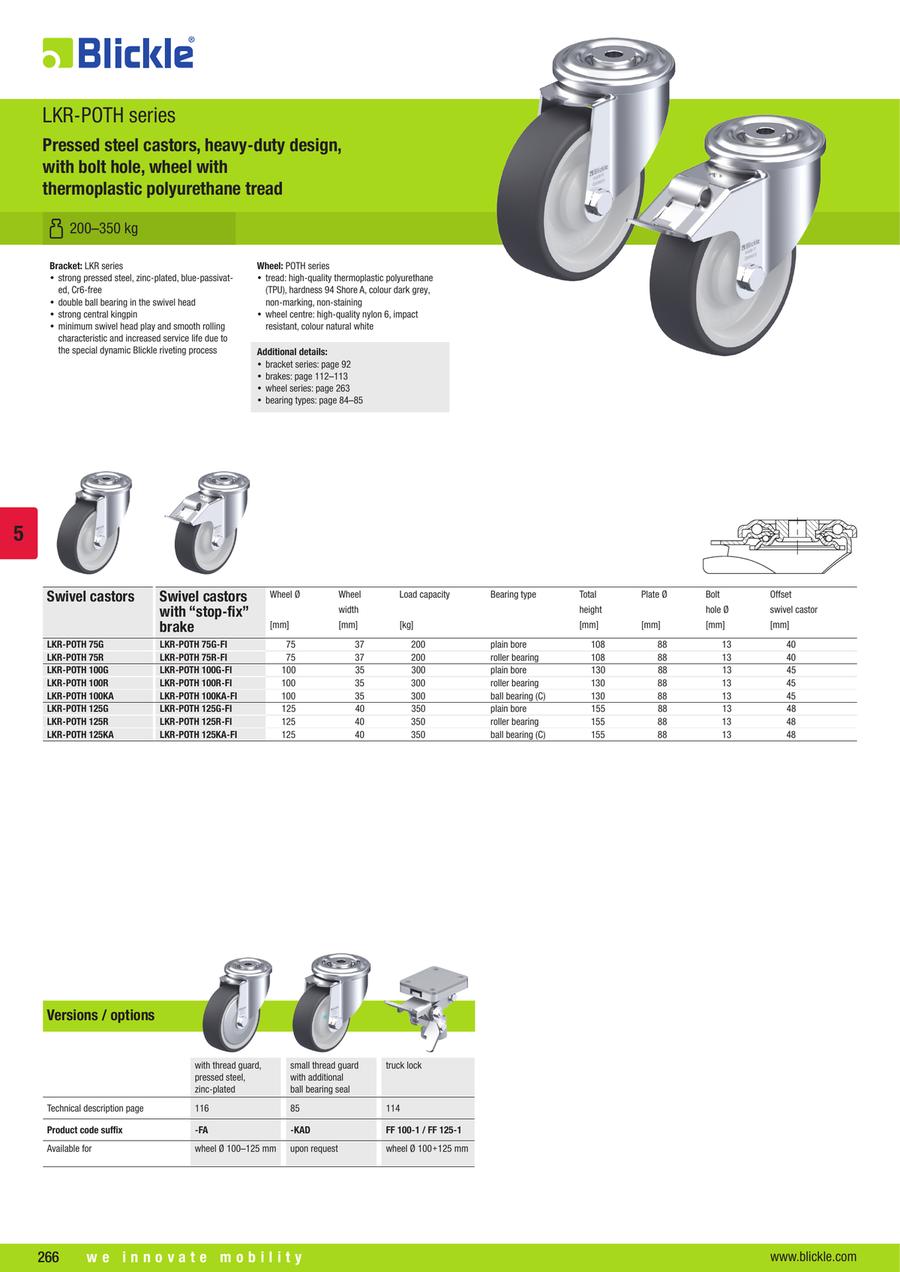

Pressed Steel Swivel Castor, LKR-POTH Series
Bracket: LKR series
- strong pressed steel, zinc-plated, blue-passivated, Cr6-free
- double ball bearing in the swivel head
- strong central kingpin
- minimum swivel head play and smooth rolling characteristic and increased service life due to the special dynamic Blickle riveting process
Wheel: POTH series
- tread: high-quality thermoplastic polyurethane (TPU), hardness 94 Shore A, colour dark grey, non-marking, non-staining
- wheel centre: high-quality nylon 6, impact resistant, colour natural white
- very high chemical resistance to many aggressive substances
- operating temperature: -25 °C to +70 °C, temporarily up to +90 °C, reduced load capacity over +35 °C
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.
- Product data
- CAD data not available
| Part Number |
Standard Unit Price
| Minimum order quantity | Volume Discount | Caster Type | Mounting Height H (mm) | Load Range (daN) | Wheel Dia. D (mm) | Wheel Width B (mm) | Bearing type | Product type | Total height (mm) | Weight (g) | Wheel diameter (mm) | Wheel width (mm) | Minimum temperature resistance (°C) | Load capacity at 4 km/h (kg) | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
72.87 € | 1 | 7 Days | Plate Type Swivel / Screw-In Type / Resin / Through Hole Type / Rotation Type | 108 | 140.01 to 220.00 | 75 | 32 | plain bore | swivel castor | 108 | 905 | 75 | 37 | -25 | 200 | ||
92.35 € | 1 | 7 Days | Plate Type Swivel / Screw-In Type / Resin / Through Hole Type / Rotation Type | 108 | 140.01 to 220.00 | 75 | 32 | plain bore | swivel castor with brake | 108 | 1052 | 75 | 37 | -25 | 200 | ||
74.71 € | 1 | 5 Days | Plate Type Swivel / Screw-In Type / Resin / Through Hole Type / Rotation Type | 108 | 140.01 to 220.00 | 75 | 32 | roller bearing | swivel castor | 108 | 916 | 75 | 37 | -25 | 200 | ||
94.20 € | 1 | 5 Days | Plate Type Swivel / Screw-In Type / Resin / Through Hole Type / Rotation Type | 108 | 140.01 to 220.00 | 75 | 32 | roller bearing | swivel castor with brake | 108 | 1034 | 75 | 37 | -25 | 200 | ||
66.92 € | 1 | 5 Days | Plate Type Swivel / Screw-In Type / Through Hole Type / Rotation Type | 155 | 220.01 to 320.00 | 125 | 40 | plain bore | swivel castor | 130 | 972 | 100 | 35 | -25 | 300 | ||
75.70 € | 1 | 7 Days | Plate Type Swivel / Screw-In Type / Through Hole Type / Rotation Type | 155 | 220.01 to 320.00 | 125 | 40 | plain bore | swivel castor | 130 | 1048 | 100 | 35 | -25 | 300 | ||
82.50 € | 1 | 5 Days | Plate Type Swivel / Screw-In Type / Through Hole Type / Rotation Type | 155 | 220.01 to 320.00 | 125 | 40 | plain bore | swivel castor with brake | 130 | 1169 | 100 | 35 | -25 | 300 | ||
91.28 € | 1 | 7 Days | Plate Type Swivel / Screw-In Type / Through Hole Type / Rotation Type | 155 | 220.01 to 320.00 | 125 | 40 | plain bore | swivel castor with brake | 130 | 1234 | 100 | 35 | -25 | 300 | ||
68.92 € | 1 | 7 Days | Plate Type Swivel / Screw-In Type / Through Hole Type / Rotation Type | 155 | 220.01 to 320.00 | 125 | 40 | Ball bearing (C) | swivel castor | 130 | 997 | 100 | 35 | -20 | 300 | ||
77.68 € | 1 | 7 Days | Plate Type Swivel / Screw-In Type / Through Hole Type / Rotation Type | 108 | 220.01 to 320.00 | 75 | 37 | Ball bearing (C) | swivel castor | 130 | 1069 | 100 | 35 | -20 | 300 | ||
84.68 € | 1 | 7 Days | Plate Type Swivel / Screw-In Type / Through Hole Type / Rotation Type | 108 | 220.01 to 320.00 | 75 | 37 | Ball bearing (C) | swivel castor with brake | 130 | 1202 | 100 | 35 | -20 | 300 | ||
93.47 € | 1 | 7 Days | Plate Type Swivel / Screw-In Type / Through Hole Type / Rotation Type | 108 | 220.01 to 320.00 | 75 | 37 | Ball bearing (C) | swivel castor with brake | 130 | 1250 | 100 | 35 | -20 | 300 | ||
69.53 € | 1 | 7 Days | Plate Type Swivel / Screw-In Type / Through Hole Type / Rotation Type | 108 | 220.01 to 320.00 | 75 | 37 | roller bearing | swivel castor | 130 | 998 | 100 | 35 | -25 | 300 | ||
78.30 € | 1 | 7 Days | Plate Type Swivel / Screw-In Type / Resin / Through Hole Type / Rotation Type | 130 | 220.01 to 320.00 | 100 | 37 | roller bearing | swivel castor | 130 | 1070 | 100 | 35 | -25 | 300 | ||
85.12 € | 1 | 7 Days | Plate Type Swivel / Screw-In Type / Resin / Through Hole Type / Rotation Type | 130 | 220.01 to 320.00 | 100 | 37 | roller bearing | swivel castor with brake | 130 | 1208 | 100 | 35 | -25 | 300 | ||
93.90 € | 1 | 7 Days | Plate Type Swivel / Screw-In Type / Resin / Through Hole Type / Rotation Type | 130 | 220.01 to 320.00 | 100 | 37 | roller bearing | swivel castor with brake | 130 | 1265 | 100 | 35 | -25 | 300 | ||
74.20 € | 1 | 7 Days | Plate Type Swivel / Screw-In Type / Resin / Through Hole Type / Rotation Type | 130 | 320.01 to 485.00 | 100 | 37 | plain bore | swivel castor | 155 | 1150 | 125 | 40 | -25 | 350 | ||
83.88 € | 1 | 7 Days | Plate Type Swivel / Screw-In Type / Resin / Through Hole Type / Rotation Type | 130 | 320.01 to 485.00 | 100 | 37 | plain bore | swivel castor | 155 | 1234 | 125 | 40 | -25 | 350 | ||
91.13 € | 1 | 7 Days | Plate Type Swivel / Screw-In Type / Resin / Through Hole Type / Rotation Type | 130 | 320.01 to 485.00 | 100 | 37 | plain bore | swivel castor with brake | 155 | 1344 | 125 | 40 | -25 | 350 | ||
100.81 € | 1 | 7 Days | Plate Type Swivel / Screw-In Type / Resin / Through Hole Type / Rotation Type | 130 | 320.01 to 485.00 | 100 | 37 | plain bore | swivel castor with brake | 155 | 1442 | 125 | 40 | -25 | 350 | ||
77.45 € | 1 | 7 Days | Plate Type Swivel / Screw-In Type / Resin / Through Hole Type / Rotation Type | 155 | 320.01 to 485.00 | 125 | 40 | Ball bearing (C) | swivel castor | 155 | 1136 | 125 | 40 | -20 | 350 | ||
87.13 € | 1 | 7 Days | Plate Type Swivel / Screw-In Type / Resin / Through Hole Type / Rotation Type | 155 | 320.01 to 485.00 | 125 | 40 | Ball bearing (C) | swivel castor | 155 | 1280 | 125 | 40 | -20 | 350 | ||
94.58 € | 1 | 5 Days | Plate Type Swivel / Screw-In Type / Resin / Through Hole Type / Rotation Type | 155 | 320.01 to 485.00 | 125 | 40 | Ball bearing (C) | swivel castor with brake | 155 | 1364 | 125 | 40 | -20 | 350 | ||
104.25 € | 1 | 7 Days | Plate Type Swivel / Screw-In Type / Resin / Through Hole Type / Rotation Type | 155 | 320.01 to 485.00 | 125 | 40 | Ball bearing (C) | swivel castor with brake | 155 | 1466 | 125 | 40 | -20 | 350 | ||
77.10 € | 1 | 7 Days | Plate Type Swivel / Screw-In Type / Resin / Through Hole Type / Rotation Type | 155 | 320.01 to 485.00 | 125 | 40 | roller bearing | swivel castor | 155 | 1181 | 125 | 40 | -25 | 350 | ||
86.79 € | 1 | 7 Days | Plate Type Swivel / Screw-In Type / Resin / Through Hole Type / Rotation Type | 155 | 320.01 to 485.00 | 125 | 40 | roller bearing | swivel castor | 155 | 1293 | 125 | 40 | -25 | 350 | ||
94.02 € | 1 | 7 Days | Plate Type Swivel / Screw-In Type / Resin / Through Hole Type / Rotation Type | 155 | 320.01 to 485.00 | 125 | 40 | roller bearing | swivel castor with brake | 155 | 1373 | 125 | 40 | -25 | 350 | ||
103.70 € | 1 | 7 Days | Plate Type Swivel / Screw-In Type / Resin / Through Hole Type / Rotation Type | 155 | 320.01 to 485.00 | 125 | 40 | roller bearing | swivel castor with brake | 155 | 1486 | 125 | 40 | -25 | 350 |
Loading...
Basic information
| Wheel Material | Engineering Plastics | Plate Length L(mm) | 88 | Material (details) | Tread material: Polyurethane, Wheel body material: high-quality nylon 6 |
|---|---|---|---|---|---|
| Material | Polyurethane | Suitable for autoclaves | no | Mounting type | bolt hole |
| Tread and tyre hardness | 94 Shore A | Tread color | dark grey | Wheel body color | natural white |
| Tread hydrolysis-resistant | no | Non-staining | yes | Rustproof | no |
| Non-marking | yes | Maximum temperature resistance(°C) | 70 |
Configure
Basic Attributes
-
Caster Type
- Plate Type Swivel
- Screw-In Type
- Resin
- Through Hole Type
- Rotation Type
-
Mounting Height H(mm)
-
Load Range(daN)
- 140.01 to 220.00
- 220.01 to 320.00
- 320.01 to 485.00
-
Wheel Dia. D(mm)
-
Wheel Width B(mm)
-
Bearing type
- Ball bearing (C)
- plain bore
- roller bearing
-
Product type
- swivel castor
- swivel castor with brake
-
Total height(mm)
-
Weight(g)
-
Wheel diameter(mm)
-
Wheel width(mm)
-
Minimum temperature resistance(°C)
- -25
- -20
-
Load capacity at 4 km/h(kg)
-
Type
- LKR-POTH
Filter by standard shipping days
-
- All
- 5 Days or Less
- 7 Days or Less
Optional Attributes
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
