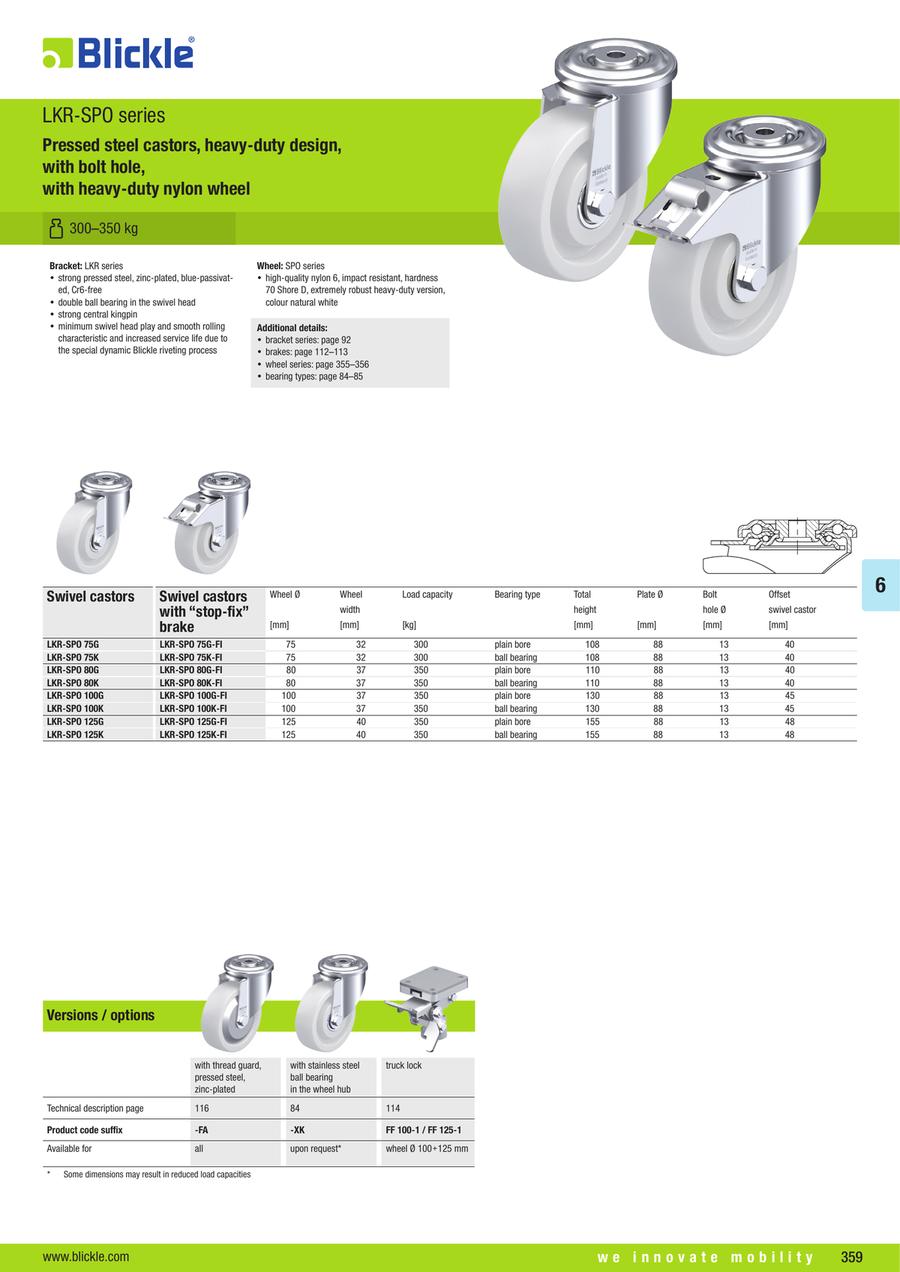

Pressed Steel Swivel Castor, LKR-SPO Series
Bracket: LKR series
- strong pressed steel, zinc-plated, blue-passivated, Cr6-free
- double ball bearing in the swivel head
- strong central kingpin
- minimum swivel head play and smooth rolling characteristic and increased service life due to the special dynamic Blickle riveting process
Wheel: SPO series
- high-quality nylon 6, impact resistant, hardness 70 Shore D, extremely robust heavy-duty version, colour natural white
- high chemical resistance to many aggressive substances
- operating temperature: -25 °C to +80 °C, reduced load capacity over +35 °C
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.
- Product data
- CAD data not available
| Part Number |
Standard Unit Price
| Minimum order quantity | Volume Discount | Caster Type | Mounting Height H (mm) | Load Range (daN) | Wheel Dia. D (mm) | Wheel Width B (mm) | Bearing type | Product type | Total height (mm) | Weight (g) | Wheel diameter (mm) | Wheel width (mm) | Minimum temperature resistance (°C) | Load capacity at 4 km/h (kg) | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
57.45 € | 1 | 5 Days | Plate Type Swivel / Screw-In Type / Through Hole Type / Rotation Type | 136 | 220.01 to 320.00 | 100 | 32 | plain bore | swivel castor | 108 | 872 | 75 | 32 | -25 | 300 | ||
64.36 € | 1 | 7 Days | Plate Type Swivel / Screw-In Type / Through Hole Type / Rotation Type | 136 | 220.01 to 320.00 | 100 | 32 | plain bore | swivel castor | 108 | 895 | 75 | 32 | -25 | 300 | ||
76.95 € | 1 | 23 Days | Plate Type Swivel / Screw-In Type / Through Hole Type / Rotation Type | 136 | 220.01 to 320.00 | 100 | 32 | plain bore | swivel castor with brake | 108 | 1020 | 75 | 32 | -25 | 300 | ||
83.85 € | 1 | 23 Days | Plate Type Swivel / Screw-In Type / Through Hole Type / Rotation Type | 136 | 220.01 to 320.00 | 100 | 32 | plain bore | swivel castor with brake | 108 | 1012 | 75 | 32 | -25 | 300 | ||
70.94 € | 1 | 5 Days | Plate Type Swivel / Screw-In Type / Through Hole Type / Rotation Type | 136 | 220.01 to 320.00 | 100 | 32 | Ball bearing | swivel castor | 108 | 942 | 75 | 32 | -20 | 300 | ||
77.85 € | 1 | 7 Days | Plate Type Swivel / Screw-In Type / Through Hole Type / Rotation Type | 136 | 220.01 to 320.00 | 100 | 32 | Ball bearing | swivel castor | 108 | 956 | 75 | 32 | -20 | 300 | ||
91.17 € | 1 | 5 Days | Plate Type Swivel / Screw-In Type / Through Hole Type / Rotation Type | 136 | 220.01 to 320.00 | 100 | 32 | Ball bearing | swivel castor with brake | 108 | 1088 | 75 | 32 | -20 | 300 | ||
98.09 € | 1 | 7 Days | Plate Type Swivel / Screw-In Type / Through Hole Type / Rotation Type | 136 | 220.01 to 320.00 | 100 | 32 | Ball bearing | swivel castor with brake | 108 | 1087 | 75 | 32 | -20 | 300 | ||
61.98 € | 1 | 7 Days | Plate Type Swivel / Screw-In Type / Through Hole Type / Rotation Type | 136 | 320.01 to 485.00 | 100 | 32 | plain bore | swivel castor | 110 | 892 | 80 | 37 | -25 | 350 | ||
68.88 € | 1 | 7 Days | Plate Type Swivel / Screw-In Type / Through Hole Type / Rotation Type | 136 | 320.01 to 485.00 | 100 | 32 | plain bore | swivel castor | 110 | 931 | 80 | 37 | -25 | 350 | ||
81.47 € | 1 | 7 Days | Plate Type Swivel / Screw-In Type / Through Hole Type / Rotation Type | 133 | 320.01 to 485.00 | 100 | 32 | plain bore | swivel castor with brake | 110 | 1040 | 80 | 37 | -25 | 350 | ||
88.37 € | 1 | 23 Days | Plate Type Swivel / Screw-In Type / Through Hole Type / Rotation Type | 136 | 320.01 to 485.00 | 100 | 32 | plain bore | swivel castor with brake | 110 | 1040 | 80 | 37 | -25 | 350 | ||
77.60 € | 1 | 5 Days | Plate Type Swivel / Screw-In Type / Through Hole Type / Rotation Type | 136 | 320.01 to 485.00 | 100 | 32 | Ball bearing | swivel castor | 110 | 979 | 80 | 37 | -20 | 350 | ||
84.52 € | 1 | 7 Days | Plate Type Swivel / Screw-In Type / Through Hole Type / Rotation Type | 136 | 320.01 to 485.00 | 100 | 32 | Ball bearing | swivel castor | 110 | 1022 | 80 | 37 | -20 | 350 | ||
97.83 € | 1 | 5 Days | Plate Type Swivel / Screw-In Type / Through Hole Type / Rotation Type | 136 | 320.01 to 485.00 | 100 | 32 | Ball bearing | swivel castor with brake | 110 | 1091 | 80 | 37 | -20 | 350 | ||
104.75 € | 1 | 7 Days | Plate Type Swivel / Screw-In Type / Through Hole Type / Rotation Type | 136 | 320.01 to 485.00 | 100 | 32 | Ball bearing | swivel castor with brake | 110 | 1134 | 80 | 37 | -20 | 350 | ||
68.36 € | 1 | 5 Days | Plate Type Swivel / Screw-In Type / Resin / Through Hole Type / Rotation Type | 108 | 320.01 to 485.00 | 75 | 32 | plain bore | swivel castor | 130 | 1022 | 100 | 37 | -25 | 350 | ||
77.14 € | 1 | 7 Days | Plate Type Swivel / Screw-In Type / Resin / Through Hole Type / Rotation Type | 108 | 320.01 to 485.00 | 75 | 32 | plain bore | swivel castor | 130 | 1101 | 100 | 37 | -25 | 350 | ||
83.95 € | 1 | 5 Days | Plate Type Swivel / Screw-In Type / Resin / Through Hole Type / Rotation Type | 108 | 320.01 to 485.00 | 75 | 32 | plain bore | swivel castor with brake | 130 | 1250 | 100 | 37 | -25 | 350 | ||
92.71 € | 1 | 7 Days | Plate Type Swivel / Screw-In Type / Resin / Through Hole Type / Rotation Type | 108 | 320.01 to 485.00 | 75 | 32 | plain bore | swivel castor with brake | 130 | 1300 | 100 | 37 | -25 | 350 | ||
84.42 € | 1 | 5 Days | Plate Type Swivel / Screw-In Type / Resin / Through Hole Type / Rotation Type | 130 | 320.01 to 485.00 | 100 | 37 | Ball bearing | swivel castor | 130 | 1147 | 100 | 37 | -20 | 350 | ||
93.20 € | 1 | 7 Days | Plate Type Swivel / Screw-In Type / Resin / Through Hole Type / Rotation Type | 110 | 320.01 to 485.00 | 80 | 37 | Ball bearing | swivel castor | 130 | 1210 | 100 | 37 | -20 | 350 | ||
100.75 € | 1 | 5 Days | Plate Type Swivel / Screw-In Type / Resin / Through Hole Type / Rotation Type | 110 | 320.01 to 485.00 | 80 | 37 | Ball bearing | swivel castor with brake | 130 | 1344 | 100 | 37 | -20 | 350 | ||
109.52 € | 1 | 7 Days | Plate Type Swivel / Screw-In Type / Resin / Through Hole Type / Rotation Type | 110 | 320.01 to 485.00 | 80 | 37 | Ball bearing | swivel castor with brake | 130 | 1380 | 100 | 37 | -20 | 350 | ||
84.83 € | 1 | 5 Days | Plate Type Swivel / Screw-In Type / Resin / Through Hole Type / Rotation Type | 110 | 320.01 to 485.00 | 80 | 37 | plain bore | swivel castor | 155 | 1227 | 125 | 40 | -25 | 350 | ||
94.52 € | 1 | 7 Days | Plate Type Swivel / Screw-In Type / Resin / Through Hole Type / Rotation Type | 110 | 320.01 to 485.00 | 80 | 37 | plain bore | swivel castor | 155 | 1326 | 125 | 40 | -25 | 350 | ||
101.77 € | 1 | 5 Days | Plate Type Swivel / Screw-In Type / Resin / Through Hole Type / Rotation Type | 110 | 320.01 to 485.00 | 80 | 37 | plain bore | swivel castor with brake | 155 | 1431 | 125 | 40 | -25 | 350 | ||
111.45 € | 1 | 7 Days | Plate Type Swivel / Screw-In Type / Resin / Through Hole Type / Rotation Type | 110 | 320.01 to 485.00 | 80 | 37 | plain bore | swivel castor with brake | 155 | 1519 | 125 | 40 | -25 | 350 | ||
103.23 € | 1 | 7 Days | Plate Type Swivel / Screw-In Type / Resin / Through Hole Type / Rotation Type | 110 | 320.01 to 485.00 | 80 | 37 | Ball bearing | swivel castor | 155 | 1412 | 125 | 40 | -20 | 350 | ||
112.92 € | 1 | 7 Days | Plate Type Swivel / Screw-In Type / Through Hole Type / Rotation Type | 88 | 320.01 to 485.00 | 65 | 40 | Ball bearing | swivel castor | 155 | 1500 | 125 | 40 | -20 | 350 | ||
120.90 € | 1 | 7 Days | Plate Type Swivel / Screw-In Type / Through Hole Type / Rotation Type | 133 | 320.01 to 485.00 | 100 | 32 | Ball bearing | swivel castor with brake | 155 | 1587 | 125 | 40 | -20 | 350 | ||
130.58 € | 1 | 23 Days | Plate Type Swivel / Screw-In Type / Through Hole Type / Rotation Type | 133 | 320.01 to 485.00 | 100 | 32 | Ball bearing | swivel castor with brake | 155 | 1696 | 125 | 40 | -20 | 350 |
Loading...
Basic information
| Wheel Material | Engineering Plastics | Plate Length L(mm) | 88 | Material (details) | Tread material: Synthetic, Wheel body material: high-quality nylon 6 |
|---|---|---|---|---|---|
| Material | Synthetic | Suitable for autoclaves | no | Mounting type | bolt hole |
| Tread and tyre hardness | 70 Shore D | Tread color | natural white | Wheel body color | natural white |
| Tread hydrolysis-resistant | no | Non-staining | yes | Rustproof | no |
| Non-marking | yes | Maximum temperature resistance(°C) | 80 |
Configure
Basic Attributes
-
Caster Type
- Plate Type Swivel
- Screw-In Type
- Resin
- Through Hole Type
- Rotation Type
-
Mounting Height H(mm)
-
Load Range(daN)
- 220.01 to 320.00
- 320.01 to 485.00
-
Wheel Dia. D(mm)
-
Wheel Width B(mm)
-
Bearing type
- Ball bearing
- plain bore
-
Product type
- swivel castor
- swivel castor with brake
-
Total height(mm)
-
Weight(g)
-
Wheel diameter(mm)
-
Wheel width(mm)
-
Minimum temperature resistance(°C)
- -25
- -20
-
Load capacity at 4 km/h(kg)
-
Type
- LKR-SPO
Filter by standard shipping days
-
- All
- 5 Days or Less
- 7 Days or Less
- 23 Days or Less
Optional Attributes
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
