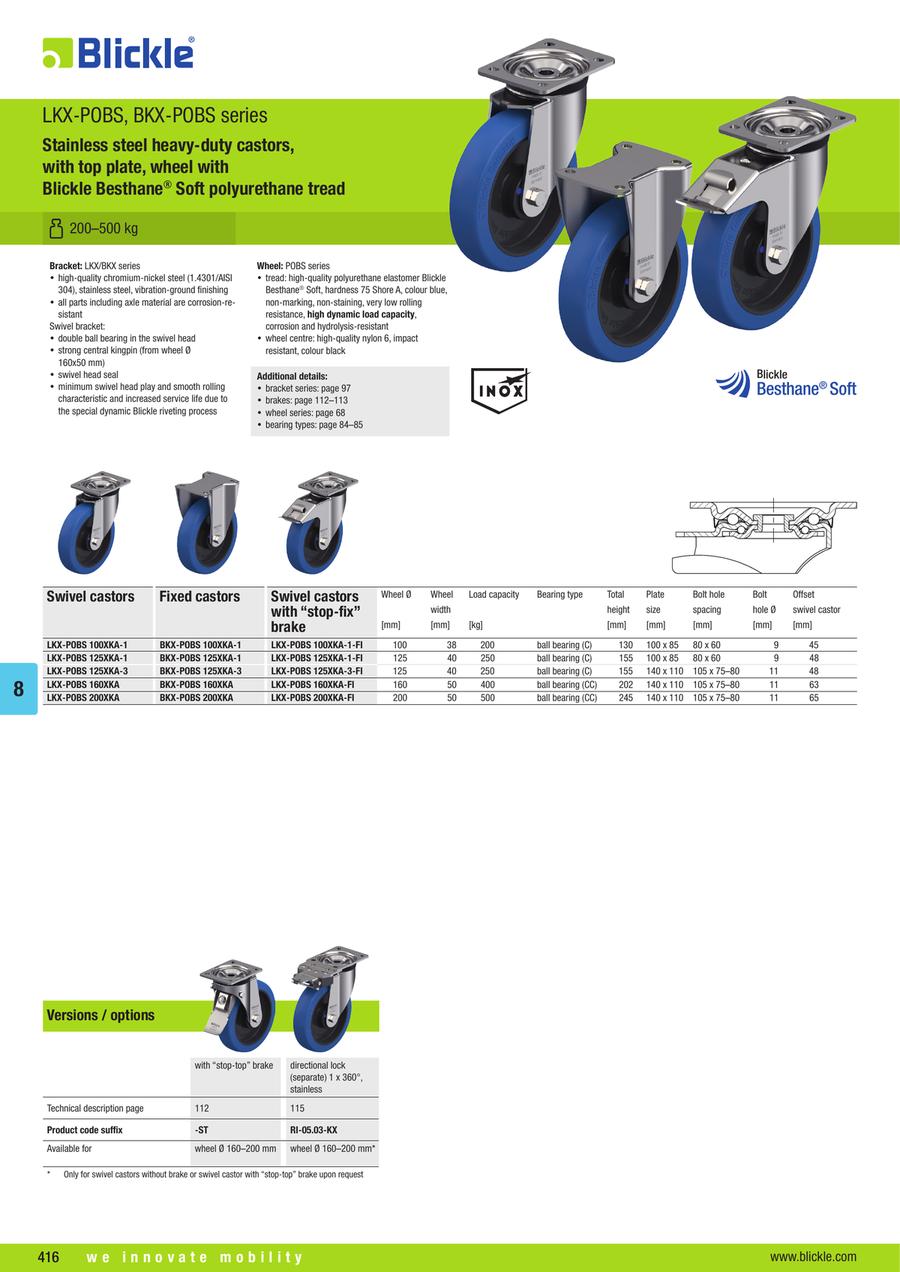

Stainless Steel Heavy Duty Swivel Castor, LKX-POBS Series
Bracket: LKX series
- high-quality chromium-nickel steel (1.4301/AISI 304), stainless steel, vibration-ground finishing
- all parts including axle material are corrosion-resistant
- double ball bearing in the swivel head
- strong central kingpin (from wheel Ø 125x50 mm)
- swivel head seal
- minimum swivel head play and smooth rolling characteristic and increased service life due to the special dynamic Blickle riveting process
Wheel: POBS series
- tread: high-quality polyurethane elastomer Blickle Besthane® Soft, hardness 75 Shore A, colour blue, non-marking, non-staining, very low rolling resistance, high dynamic load capacity, corrosion and hydrolysis-resistant
- wheel centre: high-quality nylon 6, impact resistant, colour black
- with synthetic thread guard, small
- corrosion and hydrolysis-resistant
- high chemical resistance to many aggressive substances
- operating temperature: -20 °C to +70 °C, temporarily up to +90 °C, reduced load capacity over +35 °C
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.
- Product data
- CAD data not available
| Part Number |
Standard Unit Price
| Minimum order quantity | Volume Discount | Mounting Height H (mm) | Load Range (daN) | Plate Length L (mm) | Plate Width W (mm) | Wheel Dia. D (mm) | Wheel Width B (mm) | Bearing type | Product type | Total height (mm) | Weight (g) | Wheel diameter (mm) | Wheel width (mm) | Load capacity at 4 km/h (kg) | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
216.42 € | 1 | 7 Days | 155 | 140.01 to 220.00 | 100 | 85 | 125 | 37 | Ball bearing (C) | swivel castor | 130 | 1026 | 100 | 38 | 200 | ||
262.00 € | 1 | 7 Days | 155 | 140.01 to 220.00 | 100 | 85 | 125 | 37 | Ball bearing (C) | swivel castor with brake | 130 | 1248 | 100 | 38 | 200 | ||
223.28 € | 1 | 7 Days | 155 | 220.01 to 320.00 | 100 | 85 | 125 | 37 | Ball bearing (C) | swivel castor | 155 | 1200 | 125 | 40 | 250 | ||
266.15 € | 1 | 7 Days | 155 | 220.01 to 320.00 | 100 | 85 | 125 | 37 | Ball bearing (C) | swivel castor with brake | 155 | 1356 | 125 | 40 | 250 | ||
234.00 € | 1 | 7 Days | 155 | 220.01 to 320.00 | 140 | 110 | 125 | 37 | Ball bearing (C) | swivel castor | 155 | 1260 | 125 | 40 | 250 | ||
276.30 € | 1 | 7 Days | 155 | 220.01 to 320.00 | 140 | 110 | 125 | 37 | Ball bearing (C) | swivel castor with brake | 155 | 1500 | 125 | 40 | 250 | ||
422.53 € | 1 | 7 Days | 155 | 320.01 to 485.00 | 140 | 110 | 125 | 37 | Ball bearing (CC) | swivel castor | 202 | 2700 | 160 | 50 | 400 | ||
524.83 € | 1 | 7 Days | 155 | 320.01 to 485.00 | 140 | 110 | 125 | 37 | Ball bearing (CC) | swivel castor with brake | 202 | 3130 | 160 | 50 | 400 | ||
541.28 € | 1 | 7 Days | 155 | 320.01 to 485.00 | 140 | 110 | 125 | 37 | Ball bearing (CC) | swivel castor with brake | 202 | 3220 | 160 | 50 | 400 | ||
468.60 € | 1 | 7 Days | 155 | 485.01 to 750.00 | 140 | 110 | 125 | 37 | Ball bearing (CC) | swivel castor | 245 | 3024 | 200 | 50 | 500 | ||
590.22 € | 1 | 7 Days | 155 | 485.01 to 750.00 | 140 | 110 | 125 | 37 | Ball bearing (CC) | swivel castor with brake | 245 | 3586 | 200 | 50 | 500 | ||
587.34 € | 1 | 7 Days | 202 | 485.01 to 750.00 | 140 | 110 | 160 | 50 | Ball bearing (CC) | swivel castor with brake | 245 | 3577 | 200 | 50 | 500 |
Loading...
Basic information
| Caster Type | Plate Type Swivel / Screw-In Type / Through Hole Type / Rotation Type | Wheel Material | Engineering Plastics | Material (details) | Tread material: Polyurethane, Wheel body material: high-quality nylon 6 |
|---|---|---|---|---|---|
| Material | Polyurethane | Suitable for autoclaves | no | Mounting type | top plate |
| Tread and tyre hardness | 75 Shore A | Tread color | blue | Wheel body color | black |
| Tread hydrolysis-resistant | yes | Non-staining | yes | Rustproof | yes |
| Non-marking | yes | Maximum temperature resistance(°C) | 70 | Minimum temperature resistance(°C) | -20 |
Configure
Basic Attributes
-
Mounting Height H(mm)
-
Load Range(daN)
- 140.01 to 220.00
- 220.01 to 320.00
- 320.01 to 485.00
- 485.01 to 750.00
-
Plate Length L(mm)
-
Plate Width W(mm)
-
Wheel Dia. D(mm)
-
Wheel Width B(mm)
-
Bearing type
- Ball bearing (C)
- Ball bearing (CC)
-
Product type
- swivel castor
- swivel castor with brake
-
Total height(mm)
-
Weight(g)
-
Wheel diameter(mm)
-
Wheel width(mm)
-
Load capacity at 4 km/h(kg)
-
Type
- LKX-POBS
Filter by standard shipping days
-
- All
- 7 Days or Less
Optional Attributes
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
